Description
2. Frequency range: 1Hz~150KHz
3. Frequency accuracy: In each range of accuracy is about 2%
4. Signal load capacity: Output current can be around 5~30ma
5. Output amplitude: PWM amplitude and supply voltage equal
6. Ambient temperature: -20~+70 Celsius
7.Size:54.6*37mm
1.Used as a square wave signal generator to generate square wave signals for experimental development
2.Used to generate square wave signals that control motor drives
3.Generate adjustable pulse for MCU use
4.Generate adjustable pulses,control related circuits(PWM dimming speed regulation and other applications
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

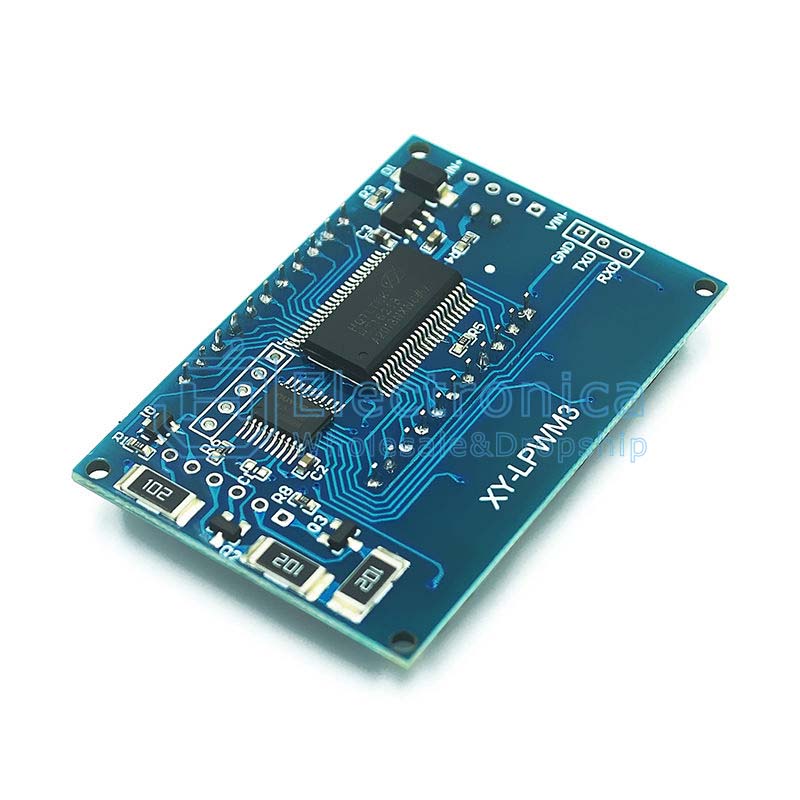

DC3.3V-30V 3 Channel PWM Pulse Signal Generator Module
SKU : YXC226 Brand : JH Stock
