Description

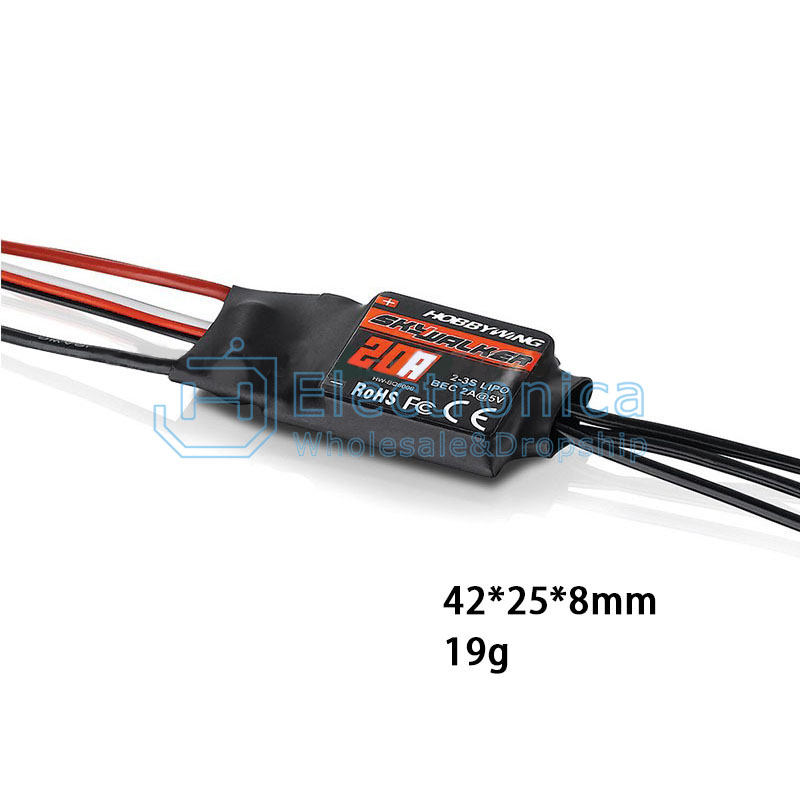

20A parameter
1. Output capacity: Continuous current 20A, short-term current 25A (not less than 10 seconds)
2 power inputs: 2-3 lithium battery packs or 5-9 nickel hydrogen/nickel cadmium battery packs
3. BEC output: 5v@2a (Linear stabilization mode - linear mode)
4. Maximum speed: 2-pole motor 210000 rpm, 6-pole motor 70000 rpm, 12 pole motor 35000 rpm
5. Dimensions: 42mm*25mm*8mm
6. Weight: 19g (including heat sink)

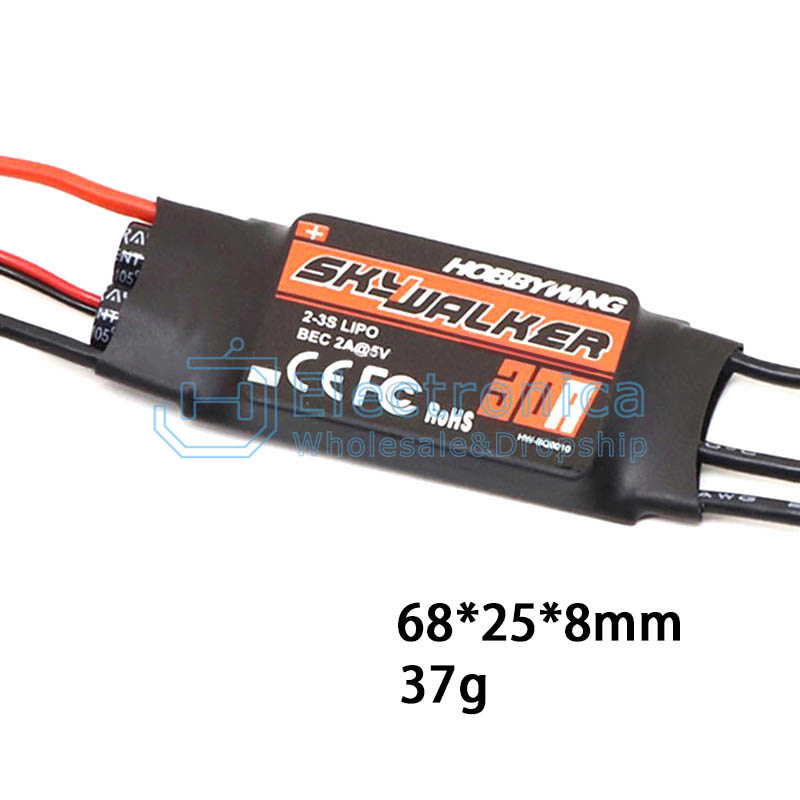

30A parameter
1. Output capacity: Continuous current 30A, short-term current 40A (not less than 10 seconds)
2. power inputs: 2-3 lithium battery packs or 5-9 nickel hydrogen/nickel cadmium battery packs
3. BEC output: 5v@2a (Linear mode)
4. throttle signal frequency range (REFRESH RATE): 50Hz -432Hz
5. Maximum speed: 2-pole motor 210000 rpm, 6-pole motor 70000 rpm, 12 pole motor 35000 rpm;
6. Dimensions: 68.0mm*25.0mm*8.0mm
7. Weight: 37g (including heat sink)
40A parameter
1. Output capacity: Continuous current 40A, short-term current 55A (not less than 10 seconds)
2. power inputs: 2-3 lithium battery packs or 5-9 nickel hydrogen/nickel cadmium battery packs
3. BEC output: 5v@3a (Linear mode)
4. Maximum speed: 2-pole motor 210000 rpm, 6-pole motor 70000 rpm, 12 poles
Motor 35000 rpm
5. Dimensions: 68mm*25mm*8mm
6. Weight: 39g;
50A parameter
1. Output capacity: Continuous current 50A, short-term current 65A (not less than 10 seconds)
2. power inputs: 2-4 battery packs
3 .BEC output: 5v@7a (Built in switch stabilized mode BEC)
4. throttle signal frequency range (REFRESH RATE): 50Hz -432Hz
5. Maximum speed: 2-pole motor 210000 rpm, 6-pole motor 70000 rpm, 12 pole motor 35000 rpm
6. Dimensions: 65mm*25mm*12mm
7. Weight: 43g (including heat sink)

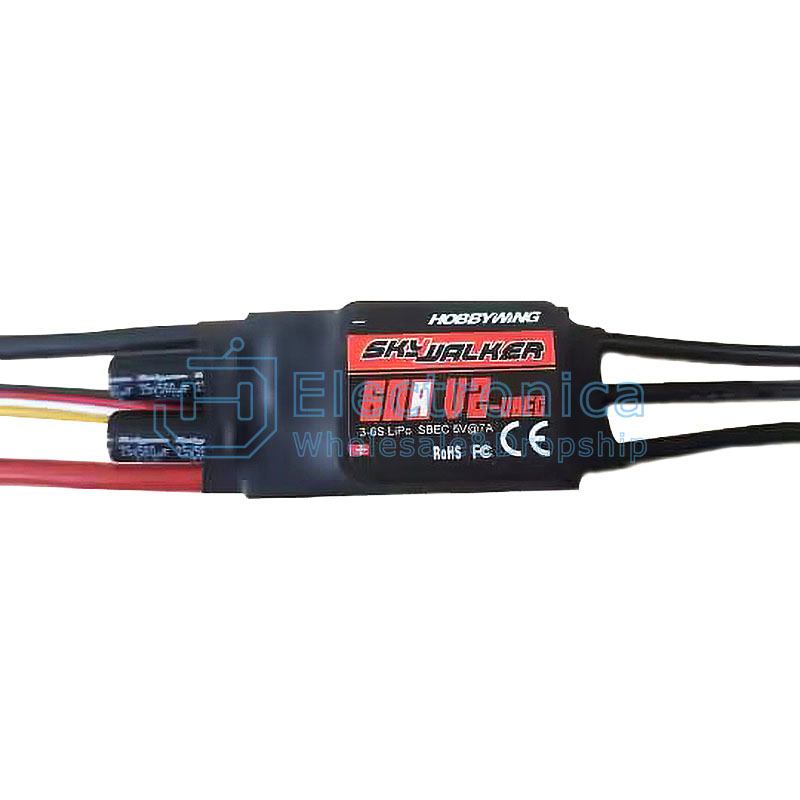

60A parameter
1. Output capacity: Continuous current 60A, short-term current 80A (not less than 10 seconds)
2. power inputs: 2-6 lithium battery packs or 5-118 nickel hydrogen/nickel cadmium battery packs
3. BEC output: 5v@7a (Built in switch stabilized mode BEC)
4. throttle signal frequency range (REFRESH RATE): 50Hz -432Hz
5. Maximum speed: 2-pole motor 210000 rpm, 6-pole motor 70000 rpm, 12 poles
Motor 35000 rpm
6. Dimensions: 77mm*35mm*14mm
7. Weight: 63g (including heat sink)
