Description

Features:
1. 24V-50V DC power supply, 8 level adjustable output current 1.0A-5.6A.
2. Bipolar constant current PWM drive output.
3. Optical isolation input signal, pulse response frequency up to 200kHz.
4. Strong anti-interference capability, achieve high precision positioning in complicated environment.
5. Low speed zero vibration, and low noise.
6. Fit for 42/57 stepper motor and widely used in automatic packaging machine, engraving machine and other automation equipments.
Specification:
Model: DM556
Application: 42/57 stepper motor
Input voltage: DC 20-50V
Output current: 1.0-5.6A, 8 level adjustable, 0.5A resolution
Drive method: Bipolar constant current PWM drive
Pulse response frequency: 200kHz(Max)
Insulation resistance: >500MOmega
Insulation strength: 500V/min
Dimensions: 118*75.5*34mm / 4.6*3.0*1.3in

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

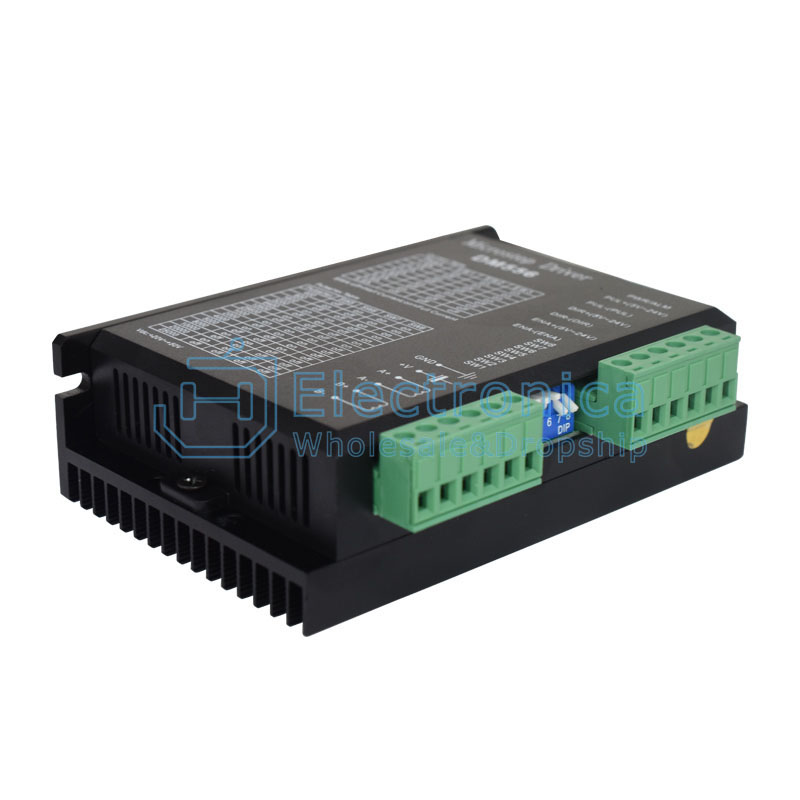

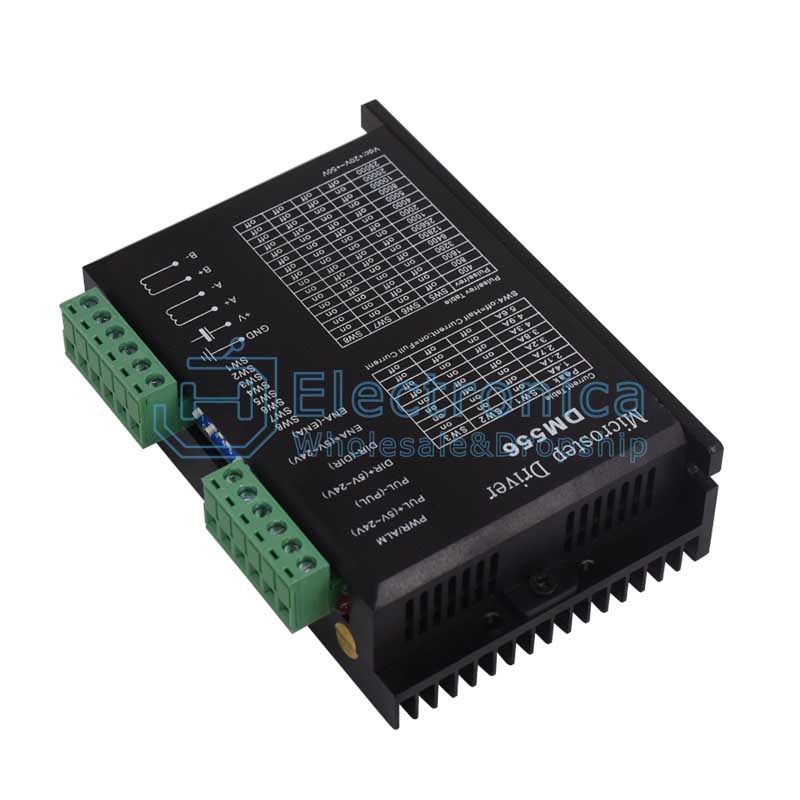

DM556 2-phase Digital Stepper Motor Driver

SKU : YXD495 Brand : JH Sourcing

Price : $ 6.49

100 +: $6.49500 +: $6.491000 +: $6.49
