Description

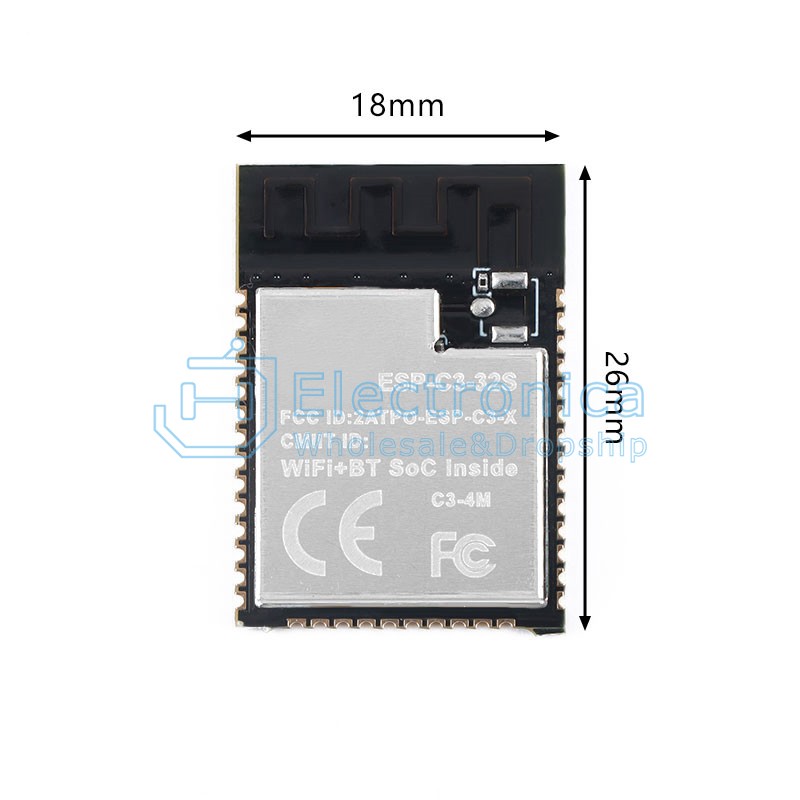

Size:25.5*18.0*3.1(±0.2)mm
Working temperature:-40~85℃
Supply voltage:3.0V~3.6V
Supply current:>500mA
Spectrum range:2400~2483.5MHz
Storage environment:-40~125℃,<90% RH
Supported interfaces:UART/GPIO/ADC/PWM/I2C/I2S
Product Introduction:RF Wireless Module is a modular product of Digital Radio, which refers to a high-performance professional data transmission radio module implemented using DSP technology and radio technology. Wireless modules extend to many systems, including industrial controlled switching IO devices, 485 wireless transmission devices DW-M1, and analog data acquisition and control devices.
Features:
Supports Wi Fi 802.11b/g/n, with a data rate of up to 150Mbps in 1T1R mode
Support BLE5.0, speed support:125Kbps, 500Kbps, 1Mbps, 2Mbps
RISC-V 32-bit single core processor, supporting clock speeds up to 160 MHz, with 400 KB SRAM, 384KB ROM, and 8KB RTC SRAM
Supports UART/GPIO/ADC/PWM/I2C/I2S interfaces, temperature sensors, pulse counters
Integrated Wi Fi MAC/BB/RF/PA/LNA/Bluetooth
Supports multiple sleep modes, with a deep sleep current of less than 5uA
Serial port speed up to 5Mbps
Supports STA/AP/STA+AP mode and hybrid mode
Smart Config (APP)/AirKiss (WeChat) one click network distribution with support for Android and IOS
Supports local serial port upgrade and remote firmware upgrade (FOTA)
Universal AT commands can be quickly used
Supports secondary development and integrates Windows and Linux development environments
Regarding the Flash configuration, ESP-C3-32S defaults to using the built-in 4MByte Flash on the chip, while also supporting external Flash versions on the chip

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

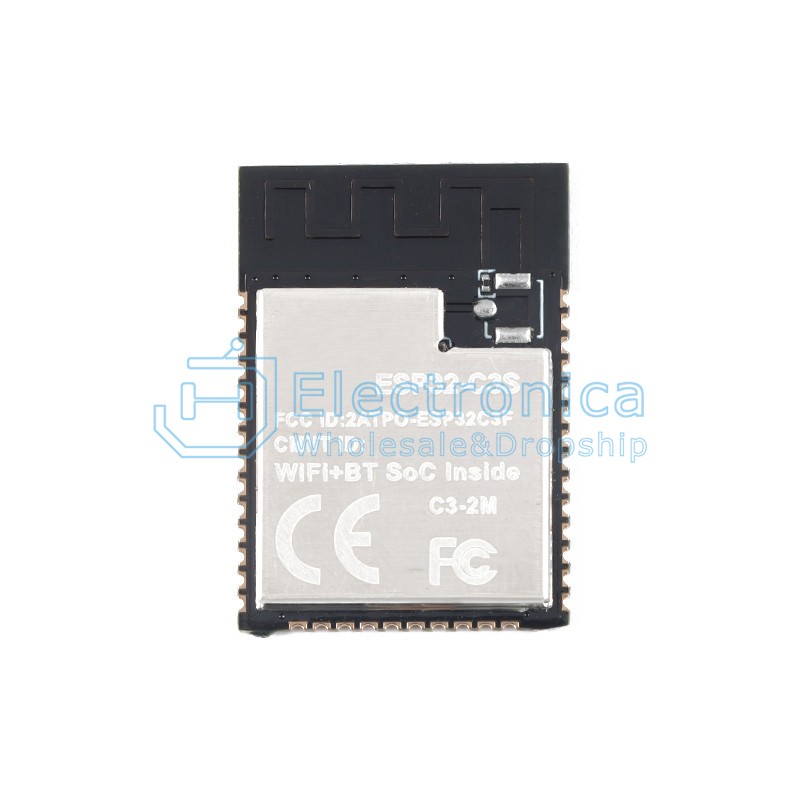

ESP-C3-32S 2.4GHz WiFi+Bluetooth BLE5.0 Wireless Module

SKU : YXC957 Brand :

Price : $ 1.95

100 +: $1.95500 +: $1.951000 +: $1.95
