Description
Output voltage: (1) continuously adjustable (5-50V)
Fixed output 5V
Output current: 2.5A (max)
Input current: 4A (max)
Output power: natural cooling 15W, with heat sink 25W (max) actual power
Operating temperature:-40℃ to +85℃(ambient temperature exceeds 40 degrees,please reduce power usage,or enhance heat dissipation)
Full load temperature rise:45℃
Working frequency:400kHz
No-load current:5V to 12V 15mA,8.4V to 12V 7mA,12V to 24V 9mA,12V to 36V 18mA,24V to 48V 9mA,24V to 36V 6mA
Load regulation:±0.5%
Voltage regulation:±0.5%
Dynamic response speed:5% 200uS
Enable control port:Yes,default high level 1.4V-VIN(ON)
Short circuit protection: None (please install a fuse or protection circuit at the input)
Input reverse polarity protection: None
Installation: can be screwed (fixing hole 3 mm), 2 fixing holes
Wiring method: soldering, after adding leads, it can be directly soldered on the PCB
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

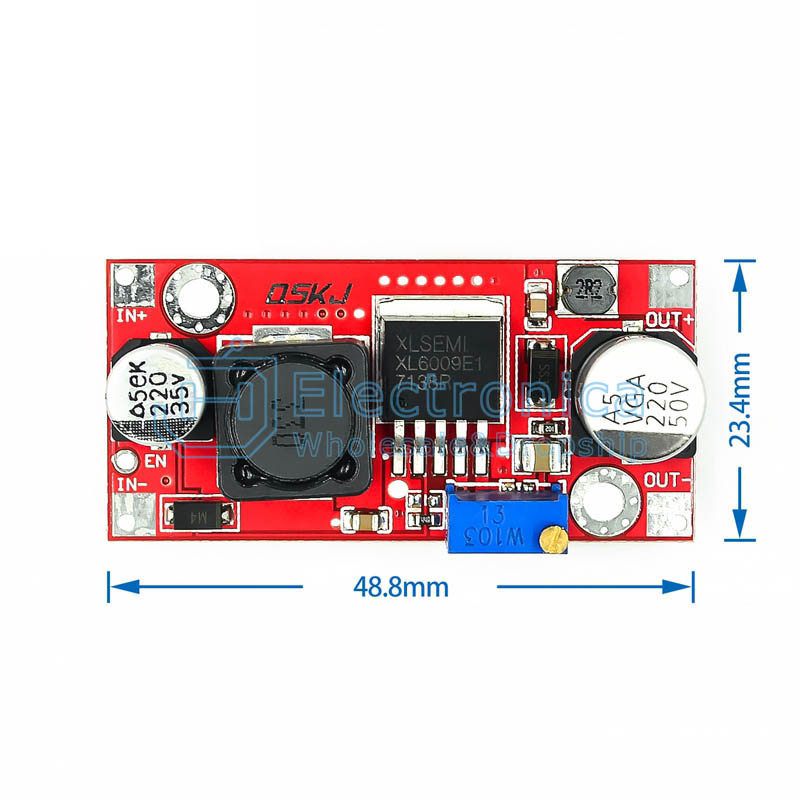

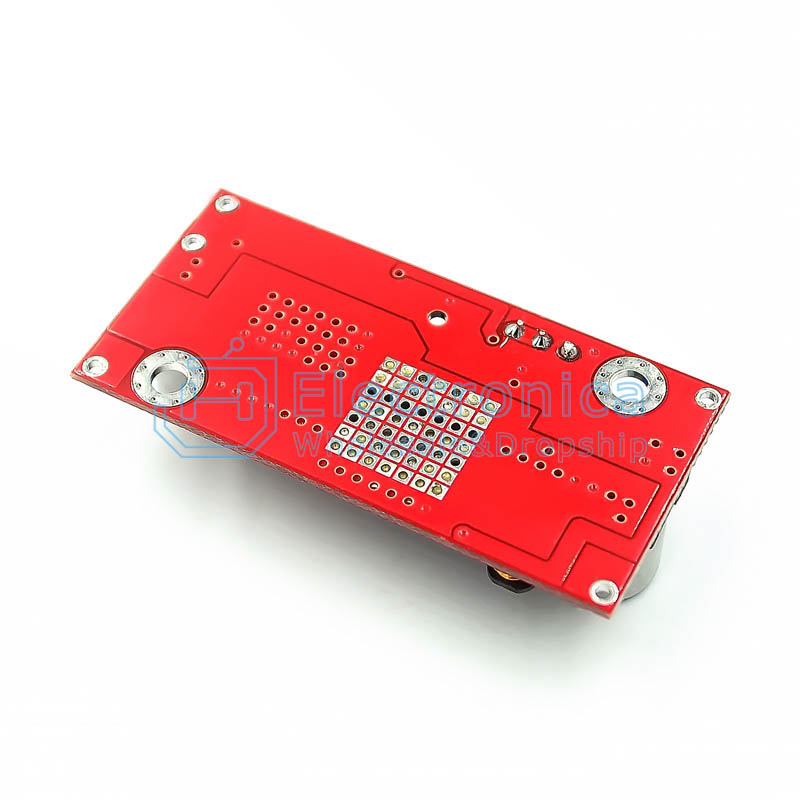

XL6009 DC Adjustable Step Up Boost Power Converter Module
SKU : YXK342 Brand : JH Stock
