Description

Product Parameters:
Input:5V1A or above
Output:5V1A(Max)
Battery:Lithium polymer battery,18650 lithium battery.
Input:Reverse connection protection,input over-voltage protection.
Output:Can only supply normal load

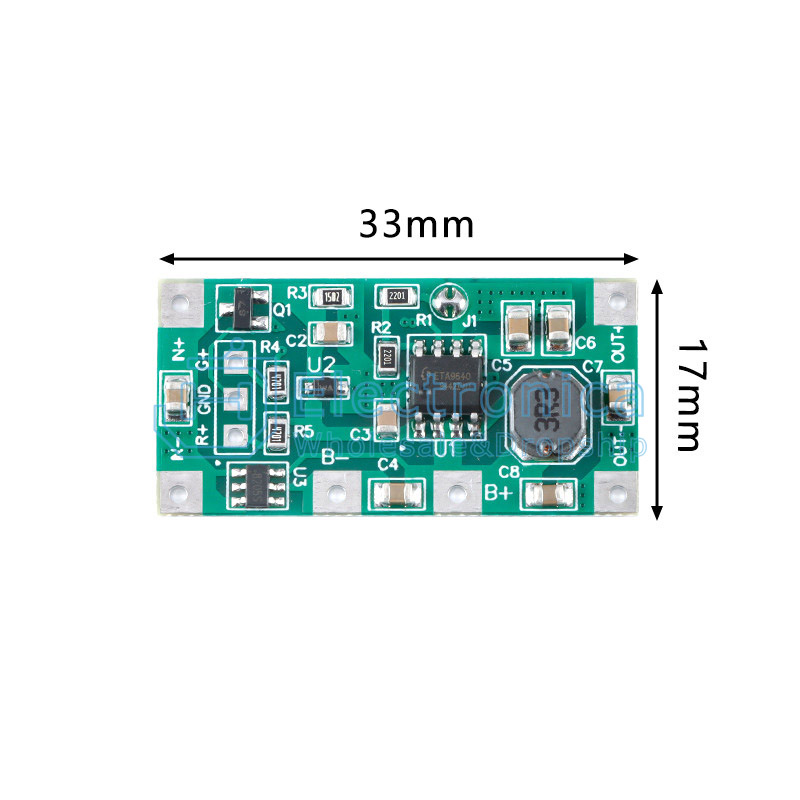

Volume:33*15*4.5mm

Product Introduction:
Battery protection board: The battery protection board is mainly an integrated circuit board that provides protection for rechargeable batteries. The need for protection of lithium batteries (rechargeable) is determined by their own characteristics. It is determined by its own characteristics. Due to the material of the carp battery itself, it cannot be overcharged, overcharged, overcurrent, short circuited, or subjected to ultra-high temperature charging and discharging. Therefore, the carp battery's electrical components always appear with a protective board with a sampling resistor and a current protector. The protection function of carp batteries is usually achieved by the cooperation of the protection circuit board and current devices such as PTC or TCO. The protection board is composed of electronic circuits, which accurately monitor the voltage of the battery cell and the current of the charging and discharging circuit at all times in an environment of -40~+85 ℃, and control the on-off of the current circuit in real-time. PTC or TCO prevents severe damage to the battery in high-temperature environments

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

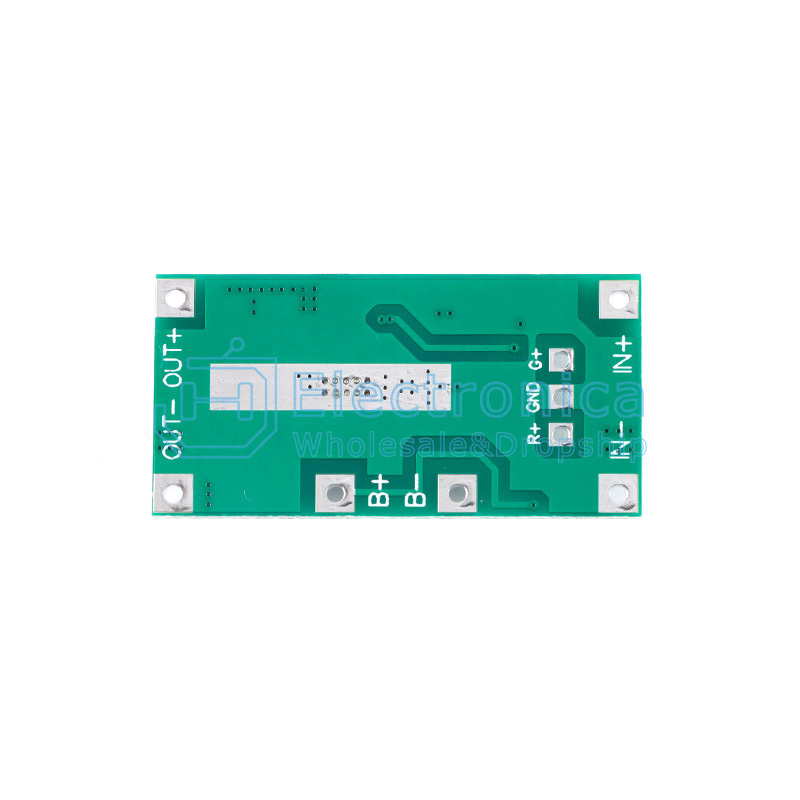

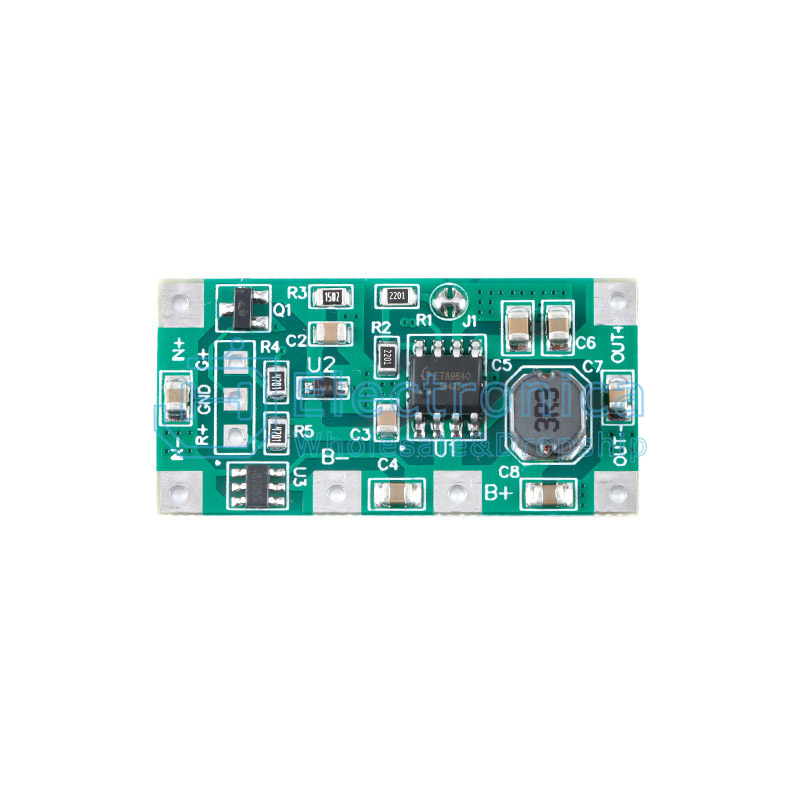

5V1A UPS Uninterruptible Power Supply Module

SKU : YXS1036 Brand :

Price : $ 0.68

100 +: $0.68500 +: $0.681000 +: $0.68

Style：

Power Supply Module

Quantity :

- +

ADD TO CART
