Description

Product Parameters:
Color:green
Power and digital level range:1.8V-5.5V(default 3.3V)
On board crystal frequency:7.680MHz

Product Features:
Complete ADS1256 application circuit module
On board Boost boost circuit, 3.3V LDO and 50V LDO, capable of external power supply from a single power source
The power and digital level range is: 1.8V -5.5V (default 3.3V). On board low-temperature ticket reference source
Single ended input or differential input can be used, and input attenuation can be configured. By default, there is no attenuation (differential resistance air welding)
The onboard crystal frequency is 7.680MHz
The analog signal input interface connector is MX3.0-16Pin
Four layer FR4 PCB board, compliant with ROHS

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

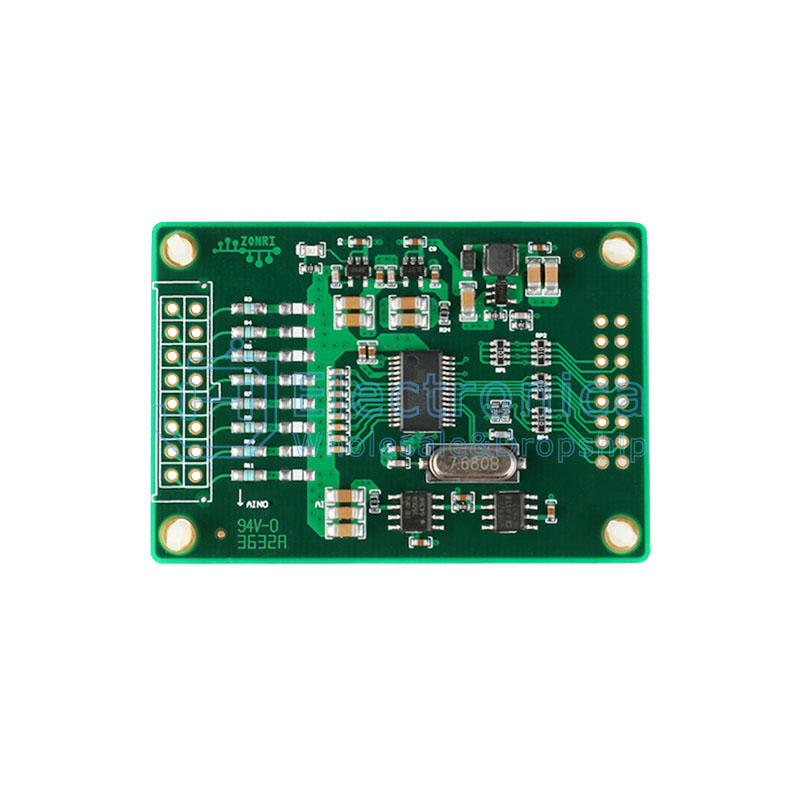

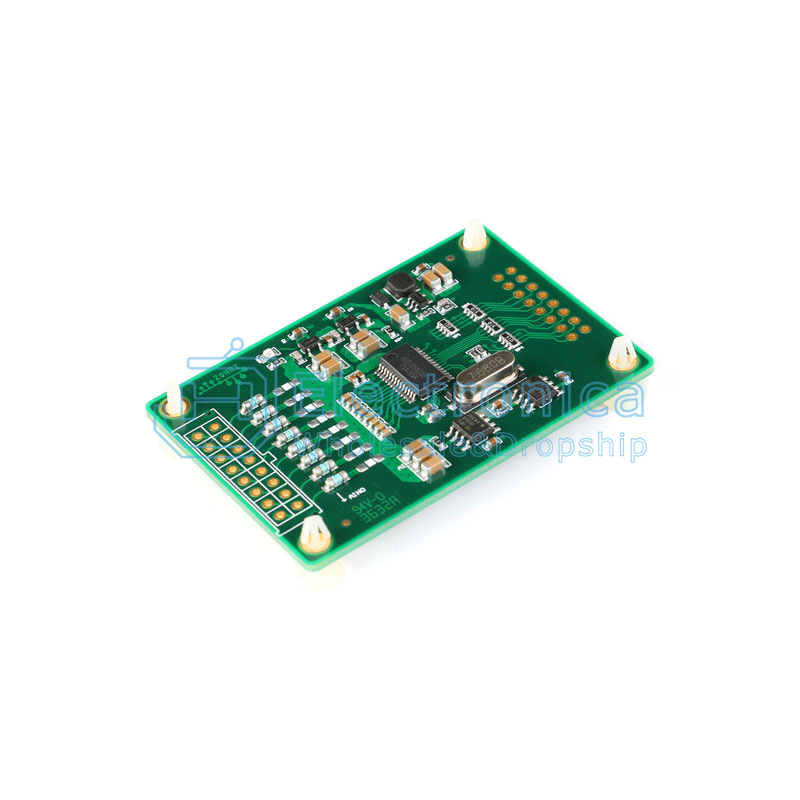

ADS1256 Analog to Digital Conversion Module

SKU : YXS1095 Brand :

Price : $ 17.21

100 +: $17.21500 +: $17.211000 +: $17.21
