Description

Product Parameters:
ADC offset error:±5mV
ADC conversion time:2us
ADC full power bandwidth:8.2MHz 3dB
DAC offset error:±3mV
DAC input all 0 error:2mV
Temperature measurement range:-40~105℃
Measurement error:±3℃
Power supply VDD:2.7-5V
IIC communication frequency:400KHz(MAX)

Product Features:
The AD5593R integrates 8 I/O pins that can be individually configured as DAC outputs, ADC inputs, digital outputs, or digital inputs. When the 1/O pin is configured as an analog output, it is driven by a 12 bit DAC. DAC output range is 0V to VREF, or 0V to 2 × VREF. When the l/O pin is configured as an analog input, it is connected to a 12 bit ADC through an analog multiplexer. ADC input range is 0 V to VREF, or 0 V to 2 × VREF. The l/O pin can also be configured as a universal digital input or output (GPIO) pin. By accessing the GPIO register through 12C write/read operations, the GPIO pin status can be set or read back. The AD5593R integrates a 2.5V, 20 ppm/℃ reference voltage source (default off) and a temperature indicator (indicating chip temperature). The temperature value is read back as part of the ADC reading sequence

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

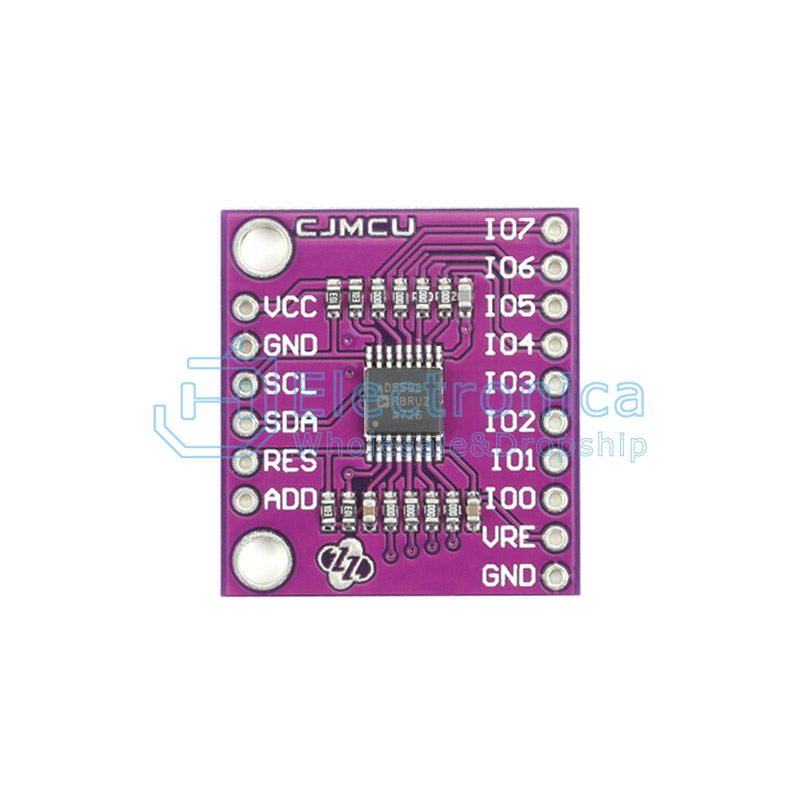

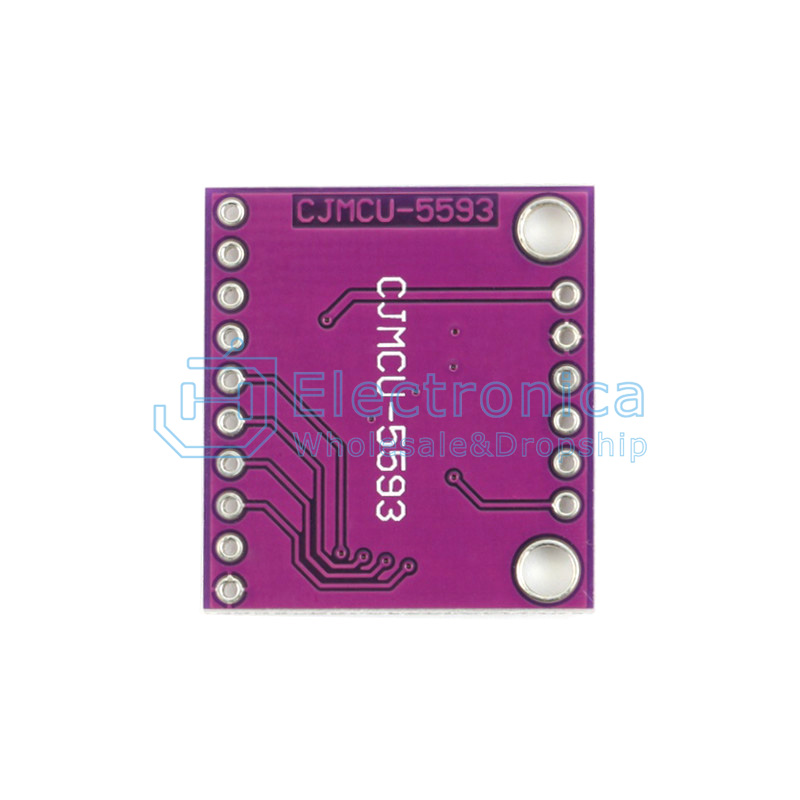

AD5593 Conversion Module

SKU : YXS1093 Brand :

Price : $ 14.08

100 +: $14.08500 +: $14.081000 +: $14.08
