Description

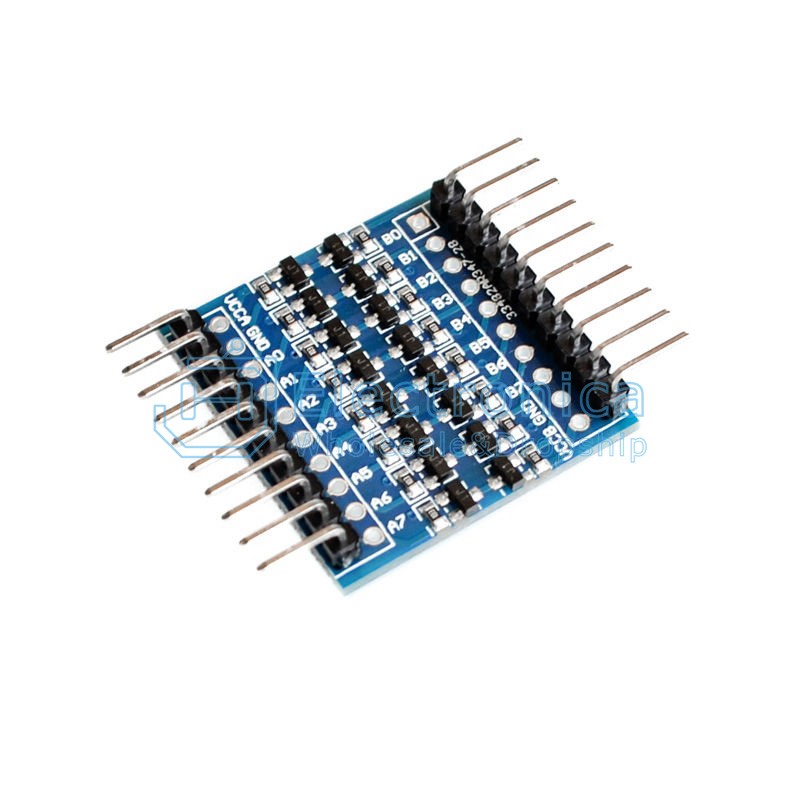

1.8 channel bidirectional conversion between high voltage logic and low voltage logic, realizing bidirectional conversion between ax and BX.
2. Conversion level range: 1.8v-6v
3. Module size: 28mm x 27.5mm
4. Instructions: (take 3.3V, 5V mutual conversion as an example)
Vcca connected to 3.3V power supply
Vccb connected to 5V power supply
GND is connected to the negative pole of the power supply, and the two power supplies are grounded together
Ax input 3.3V TTL level, BX output 5V TTL level
BX input 5V TTL level, ax output 3.3V TTL level

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

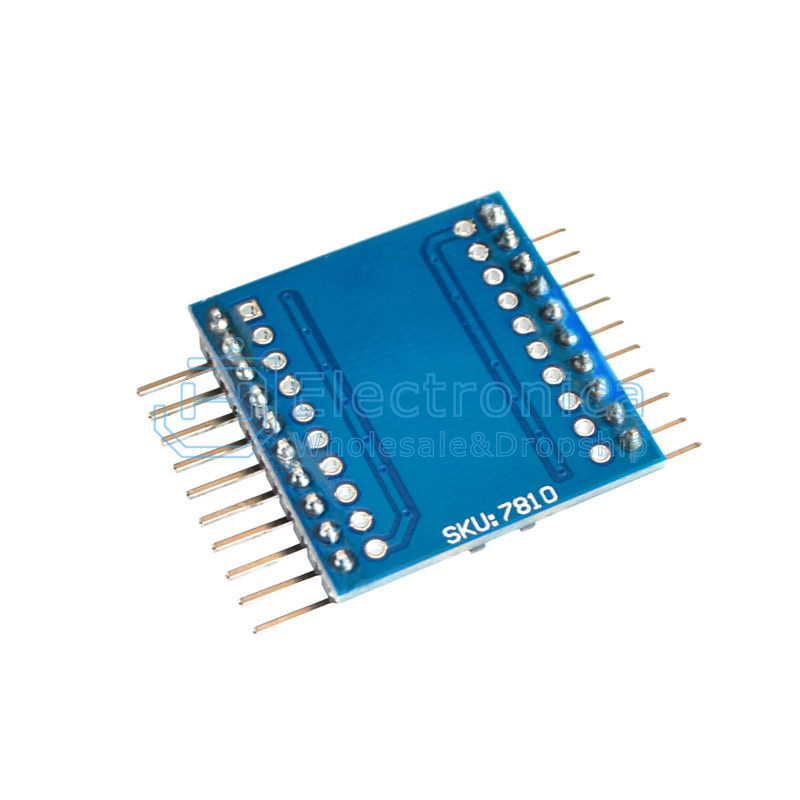

8 Channel 3.3V-5V 5V-3.3V IIC UART SPI TTL Two-Way Signal Convert Module

SKU : YXK381 Brand : JH Stock

Price : $ 0.55

100 +: $0.55500 +: $0.551000 +: $0.55
