Description

Product Parameters:
Board VCC:0V~5.5V
Chip working reference voltage Vref1,Vref2:0V~5.5V
Working environment temperature:-40℃~85℃
Board size:21.3mm*16.7mm*2.6mm,with two M3 mounting holes

Product Features:
The IIC level converter can enable communication between two IIC devices with different signal levels, converting the reference levels of 1.2V-3.3V and 1.8V-5.5V to each other. Internal low conduction resistance can reduce signal propagation delay. It is also possible to achieve normal communication between two IIC devices with different communication rates, such as a converter with one side at 400KHz and the other side at 100KHz, but the maximum communication rate of the system is slightly less than 100KHz due to the small signal propagation delay

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

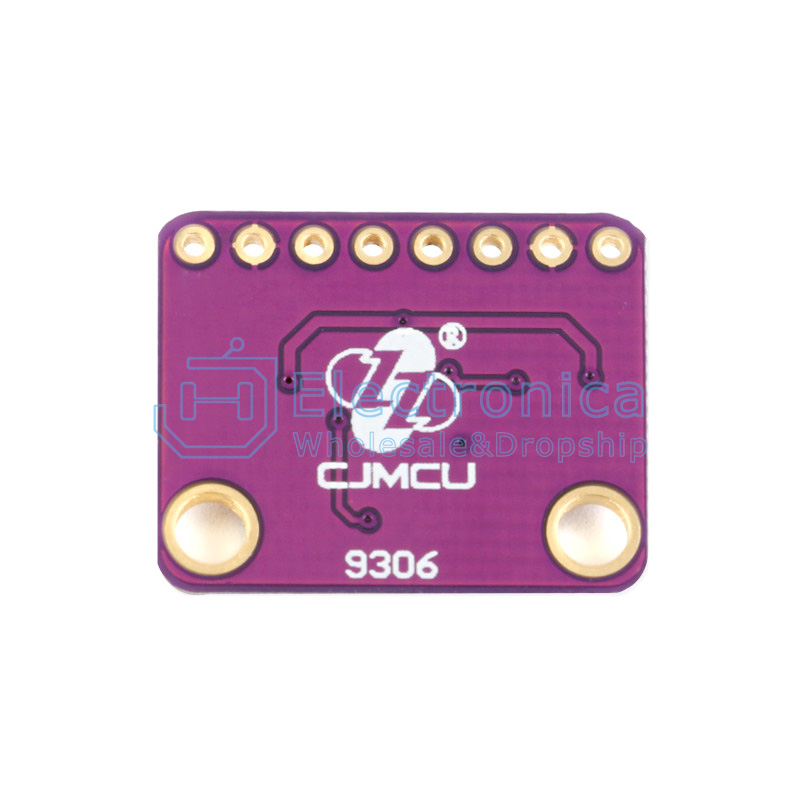

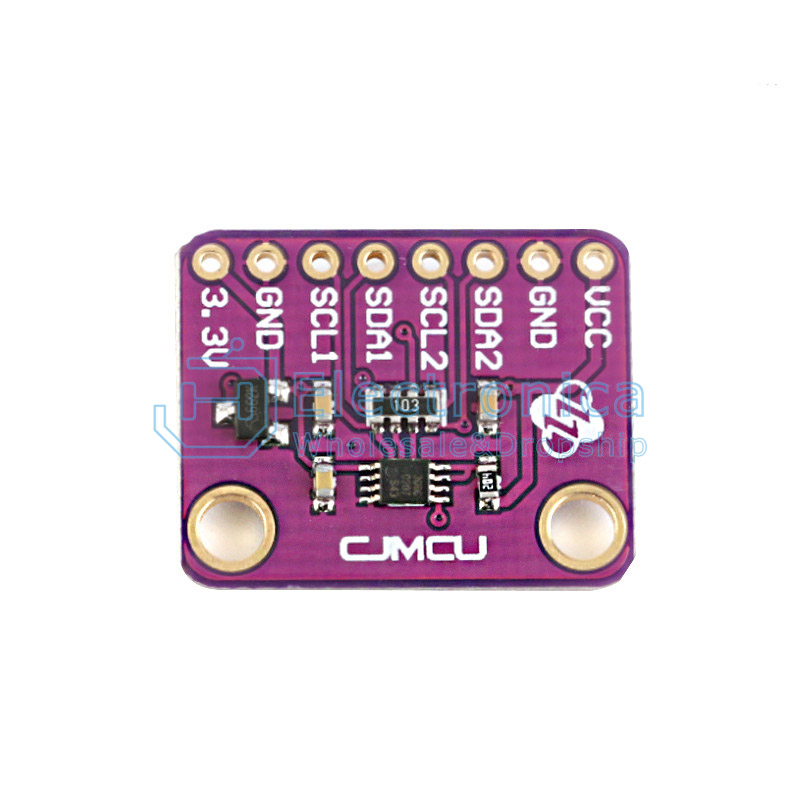

PCA9306 Bidirectional I2C Level Translation Module

SKU : YXS1087 Brand :

Price : $ 1.27

100 +: $1.27500 +: $1.271000 +: $1.27

Quantity :

- +

ADD TO CART
