Description
Supply voltage:DC2.0V-5.5V
Low flow loss:150uA
Working temperature:-40℃~125℃
Temperature resolution:0.03125℃
Temperature accuracy:0.4℃
Module size:16mm×16.6×2.43mm
Product Features:
ADS1118 is a high-precision, low-power 16 bit Δ - ∑ analog-to-digital converter (ADC). This device is packaged in an ultra-thin and small-sized VSSOP-10 package, which has all the functions required to measure the most common sensor signals. The ADS1118 integrates a programmable gain amplifier (PGA), voltage reference, and oscillator, making it a high-precision 14 bit temperature sensor. With these functions and a wide power supply voltage range of 2V to 5.5V
ADS1118 is very suitable for power and space limited sensor measurement applications.
The ADS1118 data conversion rate can reach up to 860 samples per second (SPS). The input range of PGA is ± 256mV to ± 6.144V, and it can measure large and small signals with high resolution. This device measures dual differential inputs or four single ended inputs through an input multiplexer (MUX). High precision temperature sensors are used for system level temperature monitoring or for cold junction compensation of thermocouples
ADS1118 can be selected to operate in continuous conversion mode or single mode. The device automatically powers off after completing one conversion in a single mode. In idle mode, single mode significantly reduces flow consumption. All data is transmitted through the Serial Peripheral Interface (SPI). The rated operating temperature range of ADS1118 is -40~+125℃
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

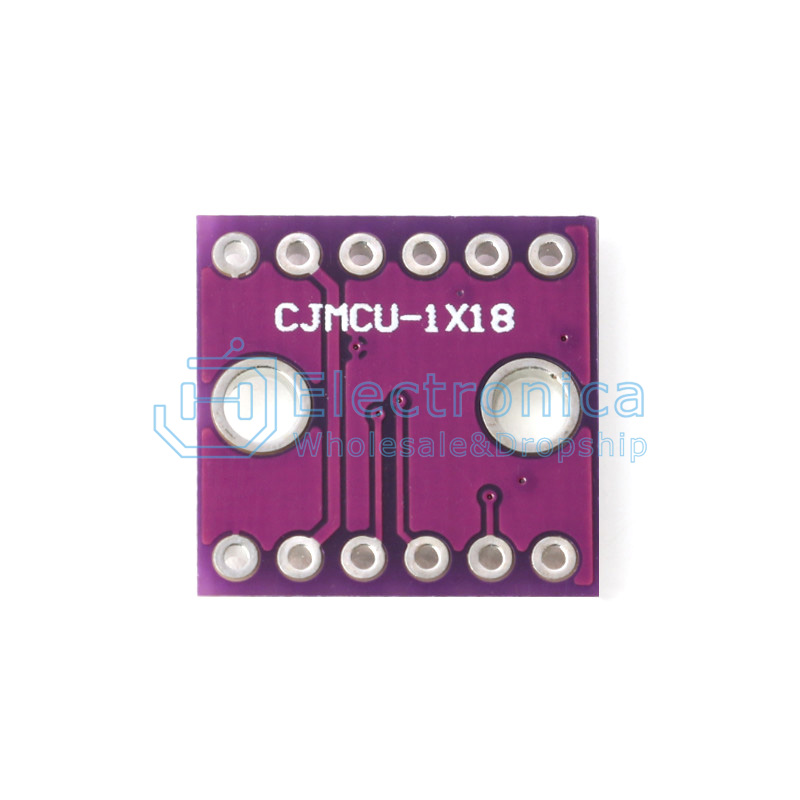

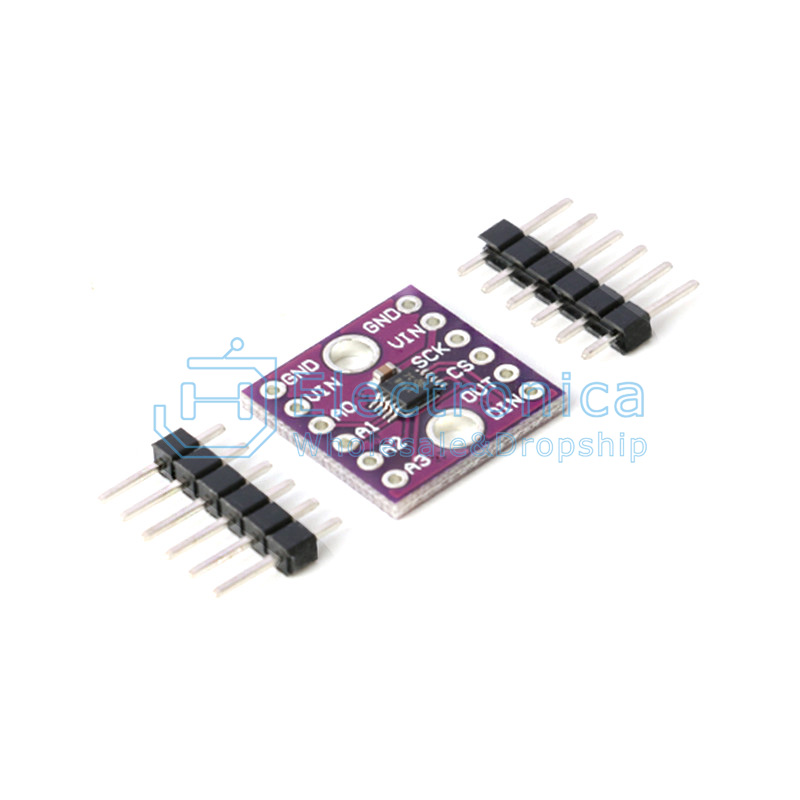

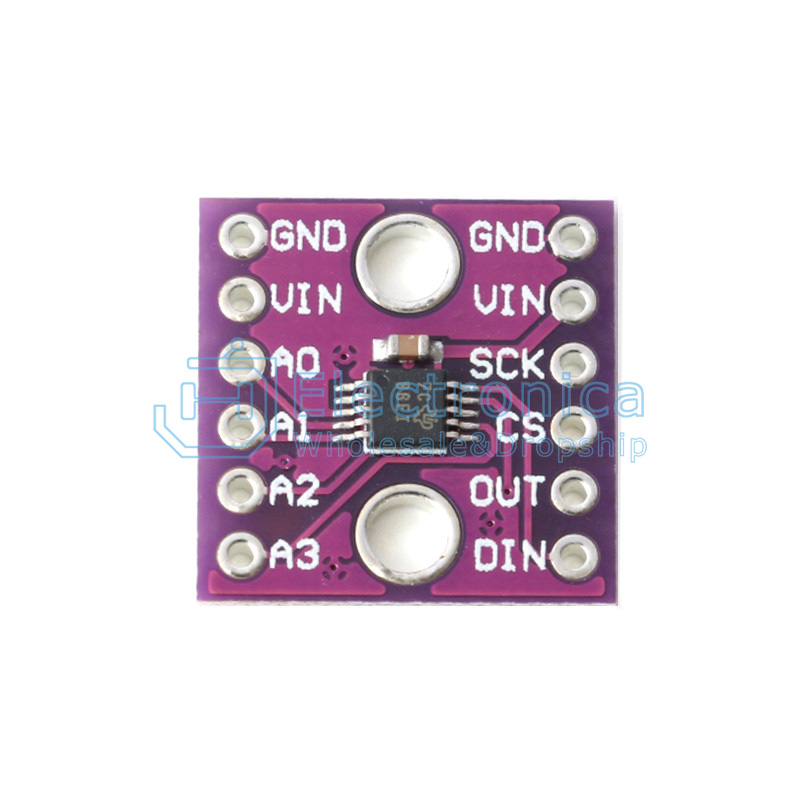

ADS1118 16 Bit Analog to Digital Conversion Module
SKU : YXS1094 Brand :
Style：
ADS1118 Digital Conversion Module
