Description

1.2-V to 3.6-V on A Port and 1.65-V to 5.5-V
on B Port (VCCA ≤ VCCB)
VCC Isolation Feature: If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State
Output Enable (OE) Input Circuit Referenced to VCCA
Low Power Consumption, 5-μA Maximum ICC
I OFF Supports Partial Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22 * A Port: * 2500-V Human-Body Model (A114-B)
1500-V Charged-Device Model (C101)
B Port: * ±15-kV Human-Body Model (A114-B)
1500-V Charged-Device Model (C101)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

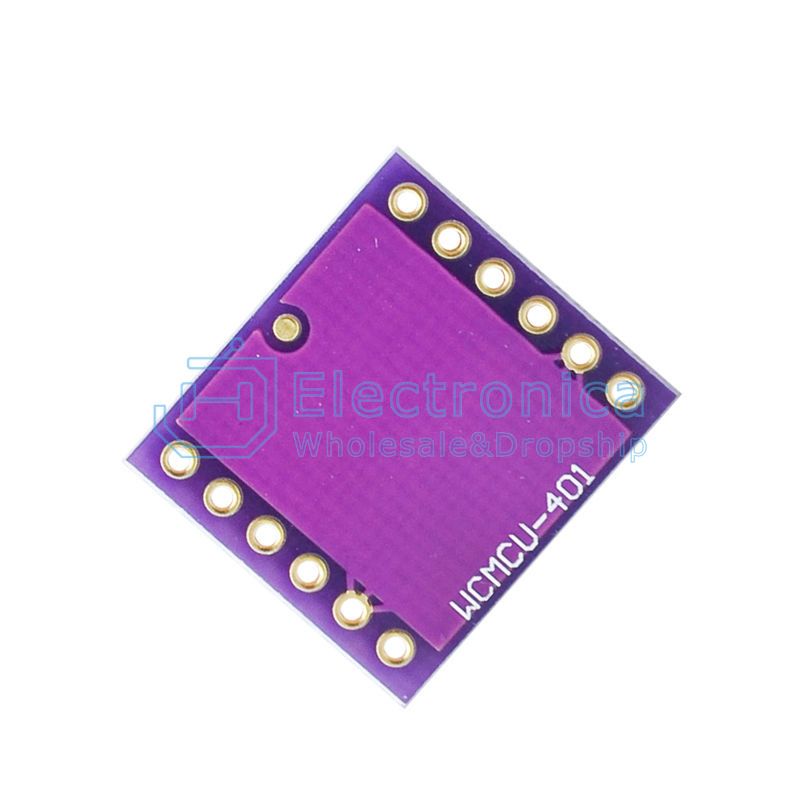

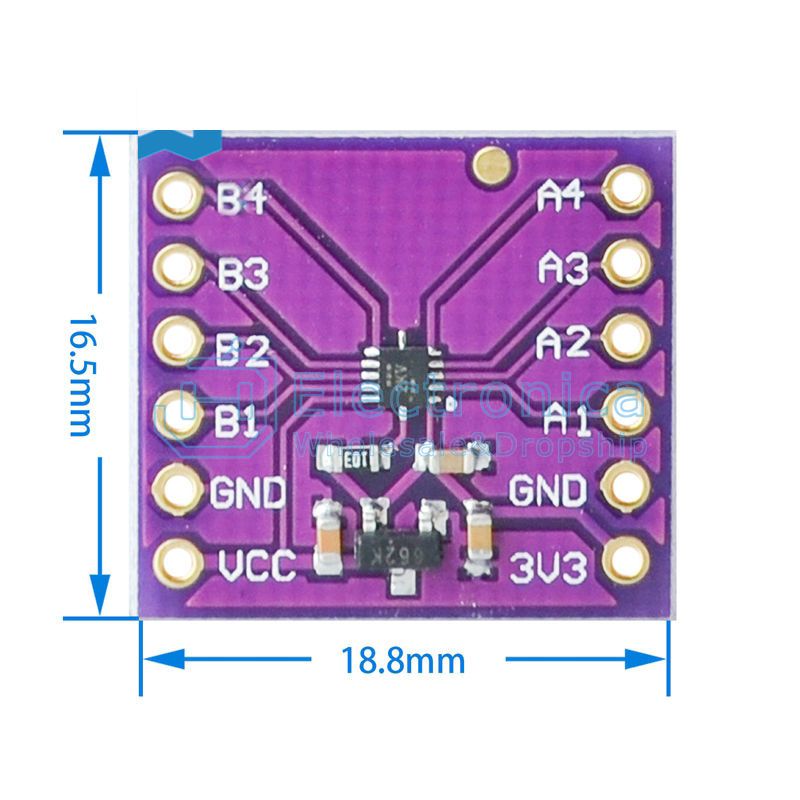

TXB0104 WCMCU-401 4-Bit Voltage Level Converter Module

SKU : YXK321 Brand : JH Stock

Price : $ 0.92

100 +: $0.92500 +: $0.921000 +: $0.92

Quantity :

- +

ADD TO CART
