Description

Three line Measuring range: DC 0V-100V
Two line measuring range: DC 4-30V
Working current: More than 20Ma
Input range: DC 5-30V
Display: Three 0.28inch digital tube
Dimensions: 30*11.7*9.2mm
Perforation size: 23*10mm
Refresh rate: 200mS / times
Measurement accuracy: 1%

Operation Temp: -10 - +65 degree

Extreme operating conditions:
Low operating voltage:+4.0V
Operating voltage:+40V
Working temperature:-10~+65℃
Working humidity:10~80%(non-condensing)
Working air pressure:80~106kPa
Sunlight:no direct exposure
Key Features:
1.Good product stability and high measurement accuracy
2.The appearance adopts standard size,easy to install
3.The power supply adopts polarity protection line

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

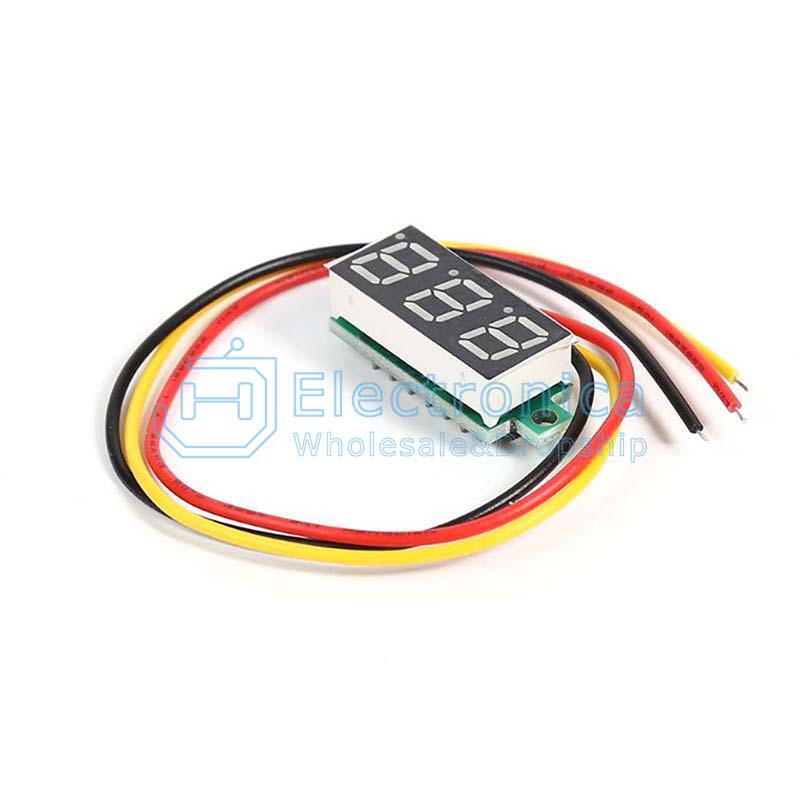

0.28" 3 Wires Digital Voltmeter LED Display DC 0-100V

SKU : YXB309 Brand : JH Stock

Price : $ 0.32~0.34

100 +: $0.32~0.34500 +: $0.32~0.341000 +: $0.32~0.34

Colour：

Red
Yellow
Green
Blue
