Description

Product parameters
1.Pressure-resistant:50V
2.Supply voltage:dual 12-36V ring cow
3.Output power:85W*1
4.Max Output power:100W
5.Speaker impedance:4-8Ω
6.PCB size:50*50mm
7.Work temperature:-25℃~85℃
8.Work humidity:5%~95%RH

Component list:
TDA7293 power amplifier IC integrated block*1pc
50V 2200UF electrolytic capacitor*2pcs
50V 22UF electrolytic capacitor*2pcs
50V 10UF electrolytic capacitor*2pcs
Screw type DG5.0-2P node terminal*2pcs
Screw type DG5.0-3P node terminal*1pc
KBL608 rectifier bridge*1pc
1N4148 switching diode*1pc
104 monolith capacitance*3pcs
105 monolith capacitance*1pc
0.25W 680R metal film resistor*1pc
0.25W 22K metal film resistor*3pcs
0.25W 33K metal film resistor*1pc
0.25W 10K metal film resistor*1pc
1W 10R metal film resistor*1pc
T0-3P silicone insulating pad*1pc
T0-220A insulating particles*1pc
3*8mm nickel-plated round head screw*1pc

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

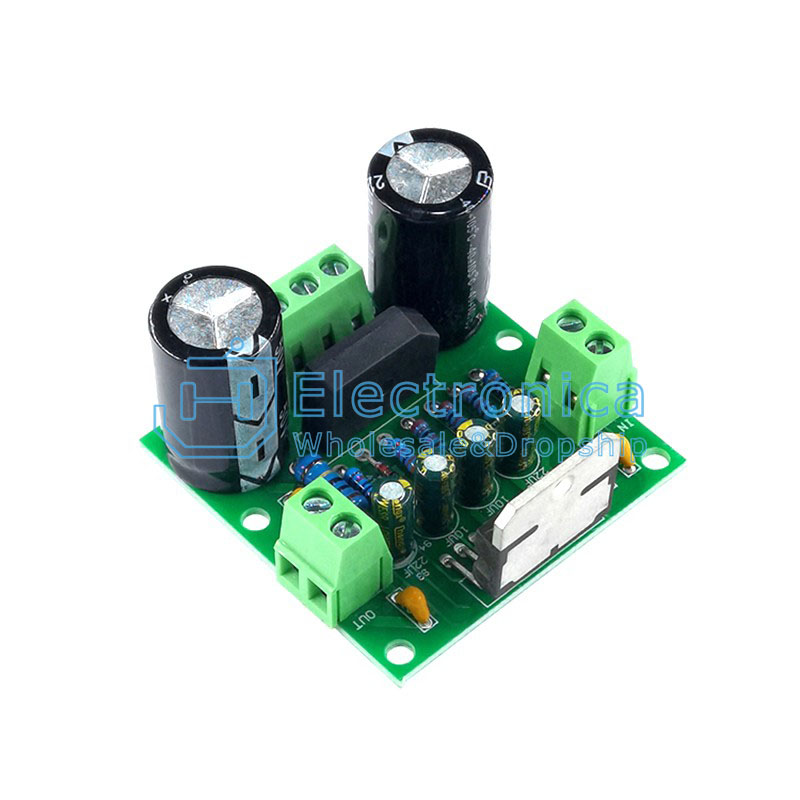

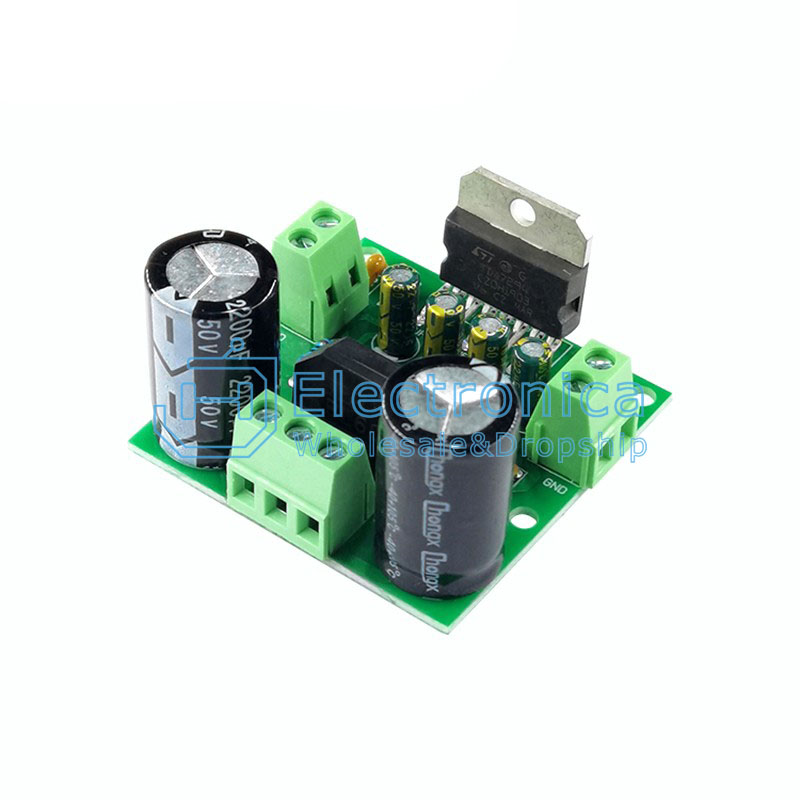

Mono TDA7293 7294 Amplifier Board Kit

SKU : YXS823 Brand :

Price : $ 2.56

100 +: $2.56500 +: $2.561000 +: $2.56
