Description

Product Parameters:
1.Equivalent noise:>=30dB
2.Work Voltage:DC 4.5V~5.5V
3.Output impedance:8ohm
4.Output power:5W
5.Output channel:Mono
6.Receiver Frequency:87.0MHz~108.0MHz
7.Frequency accuracy:0.1MHz
8.Board size:7.7×6.1cm
9.Case size:9.2×7.4×5.1cm
10.Work Temperature:-40℃~85℃
11.Work Humidity:5%~95%RH

Product Feature:
1.Automatically search for radio stations
2.Built-in volume adjustment
3.Automatic memory function after power off
4.Support 87Hz-108MHz receiver frequency
5.Built-in 5W power amplifier
6.Power saving mode with backlight off for 5 seconds

DIY Kit Shipping List:

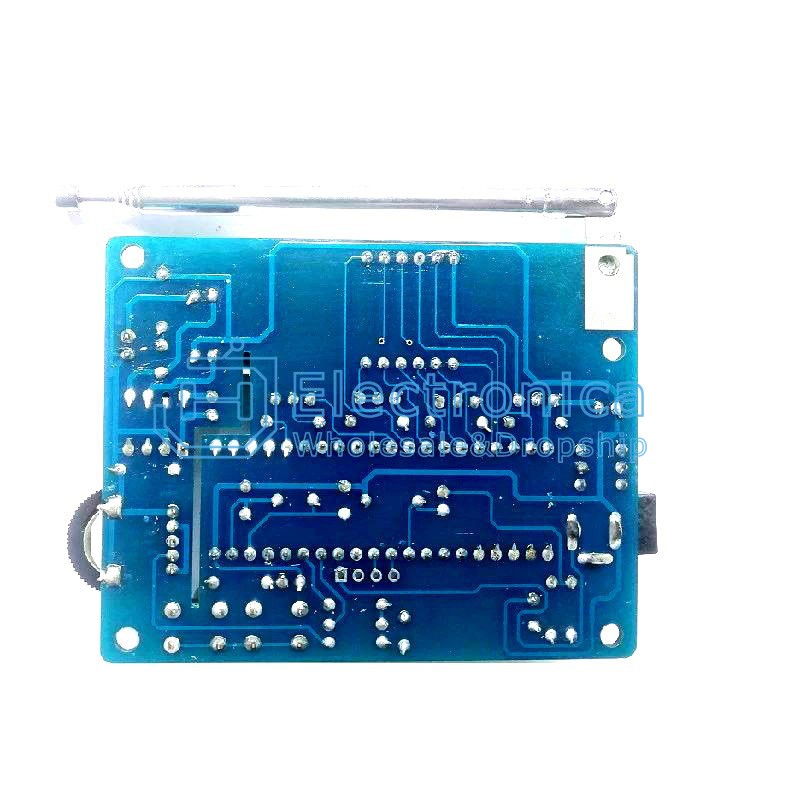

PCB 1
262 small antenna 1
0.56 inch 4-position common positive digital tube 1
100UF 50V electrolytic capacitor 3
10UF 25V electrolytic capacitor 2
22P or 20pf ceramic capacitor 2
104 single stone capacitor 3
8*8 self-locking switch 1
7MM high self-locking switch cap 1
DC005 Block 1
4.7 Ohm resistor 1
10K resistor 11
220K resistor 1
9012 transistor 4
12M crystal oscillator 1
RDA5807H Radio Module 1
6*6*20 button 2
2*5*7 LED 1
50K dial potentiometer 1
8P IC holder 1
40P IC holder 1
LM386 chip 1
STC89C52 (Burn Program) 1
2-inch horn 1
Red and Black Thread 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

TEA5767 Wireless FM Radio Receiver Kit

SKU : YXS716 Brand :

Price : $ 4.22~6.81
