Description

Working voltage:DC4-6V
Working current:20mA-40mA
Launch distance:20-80 meters without barriers(affected by production level)
Transmit frequency:87-108MHz 14 frequency point,change the frequency by DIP switch
Power indication:yes,the lights will be automatically turned off when it is below 4V
Antenna:300mm flexible wire is included
Oscillation mode:PLL phase-locked loop
Frequency stability:zero drift
Sound quality:excellent,stereo two-channel transmission,automatic gain control
Microphone:yes,PCB onboard
Microphone reception distance:1 meter to speak normally
Microphone and audio input conversion mode:unplug the audio cable and the microphone will work automatically
PCB size:74mm*52mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

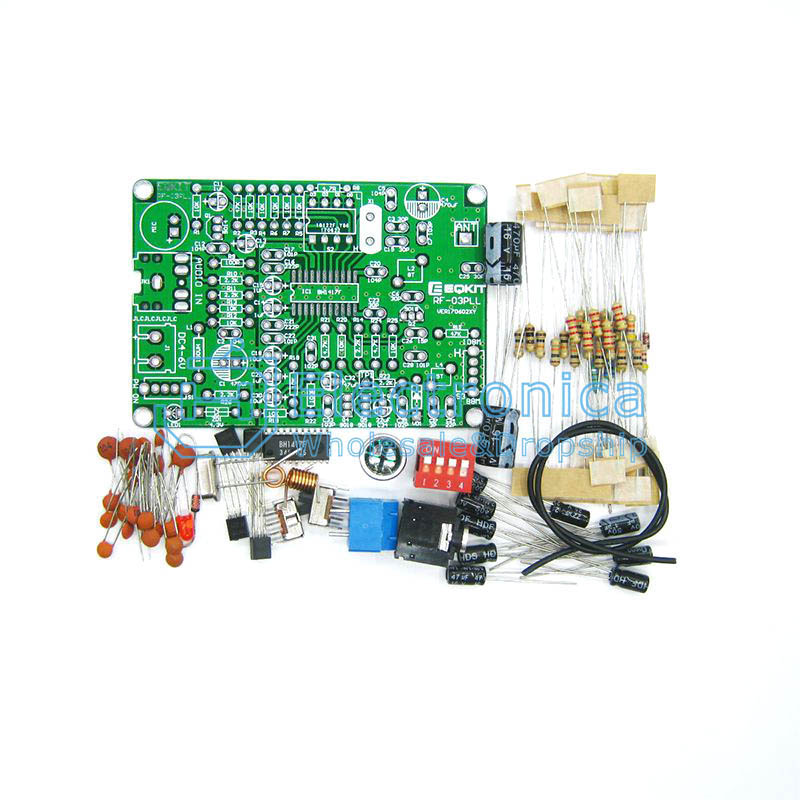

FM Stereo Transmitter Module DIY Kit

SKU : YXC1272 Brand :

Price : $ 6.66~7.14

100 +: $6.66~7.14500 +: $6.66~7.141000 +: $6.66~7.14

Style：

Quantity :

- +

ADD TO CART
