Description

Product Parameter:
1.Work Temperature:-40℃~85℃
2.Work Voltage:DC 3.7-5V
3.Bluetooth Version:5.0
4.Bluetooth Distance:15meters (Max)
5.Amplifier Power:3W*2
6.Music Source:Bluetooth/U-disk/TF Card
7.Control Type:Bluetooth/Remote Controller/On Board Button
8.LED Color:Yellow/Green/Red/Blue

Product Introduction:
1. The integrated speaker is easy to install, powerful in function, and equipped with a remote control
2. The main line is about 1 meter long and can be connected even if the host is placed under the table
3. This speaker has a unique appearance, with the outer shell cut from imported transparent acrylic, which is 1.8mm thick and crystal clear. Equipped with Bluetooth connection function for mobile phones, the infrared remote control function does not require an audio cable. Shipped as loose items, DIY belongs to its own speaker, with excellent stereo sound effect

12 Channel Patch Spectrum Supporting List
Aluminum chip electrolytic capacitor:1
0805 chip capacitor 104:1
0805 chip capacitor 30pf:3
SMD LED:100
STC12C5A60S2:1
Crystal oscillator Y1:1
PCB board:1
Bluetooth Main Control Board Supporting List
Bluetooth motherboard:1
Optional horn:2
Rocker switch:1
Power cord:1
Remote control:1
Power connector+nut:1
2p line (PH2.0):3
Red and black connecting wire:2
M3*8 copper column:2
M3*6 screw:4
M3*10 screw:12
M3 nut:12
M2 screw nut:13
One set of sound control water flow light speaker shell:1
Voice Controlled Flow Light Board Supporting List
2M:1
470R:2
20K:2
S9014:1
100UF:1
1UF:1
Mic 9*7:1
2P pin:1
Colorful LED:12
Plugin CD4017:1
PCB board:1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

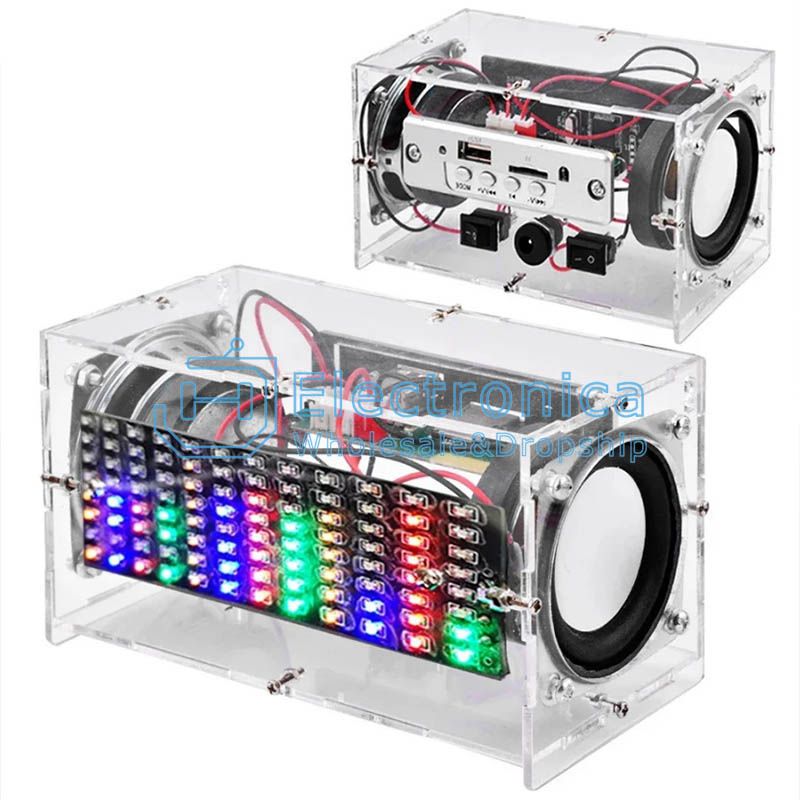

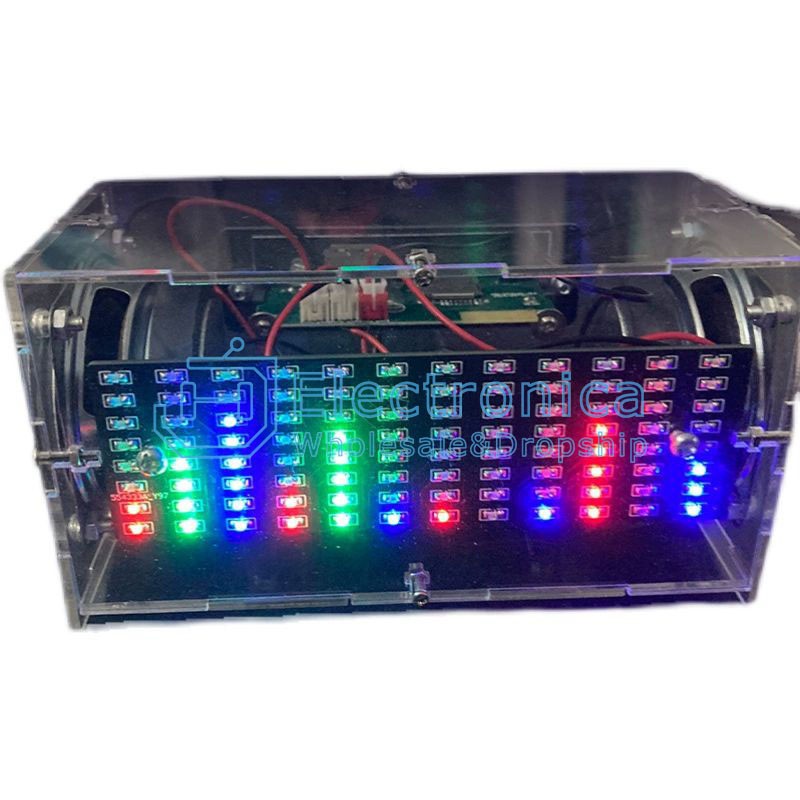

Bluetooth Speaker Spectrum Kit

SKU : YXS715 Brand :

Price : $ 7.34

100 +: $7.34500 +: $7.341000 +: $7.34

Quantity :

- +

ADD TO CART
