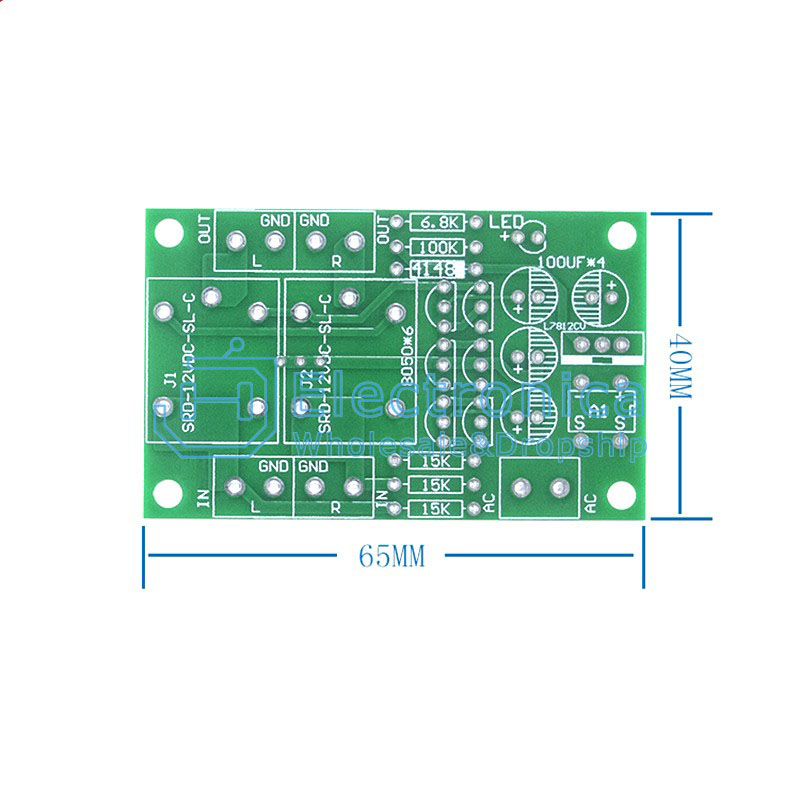

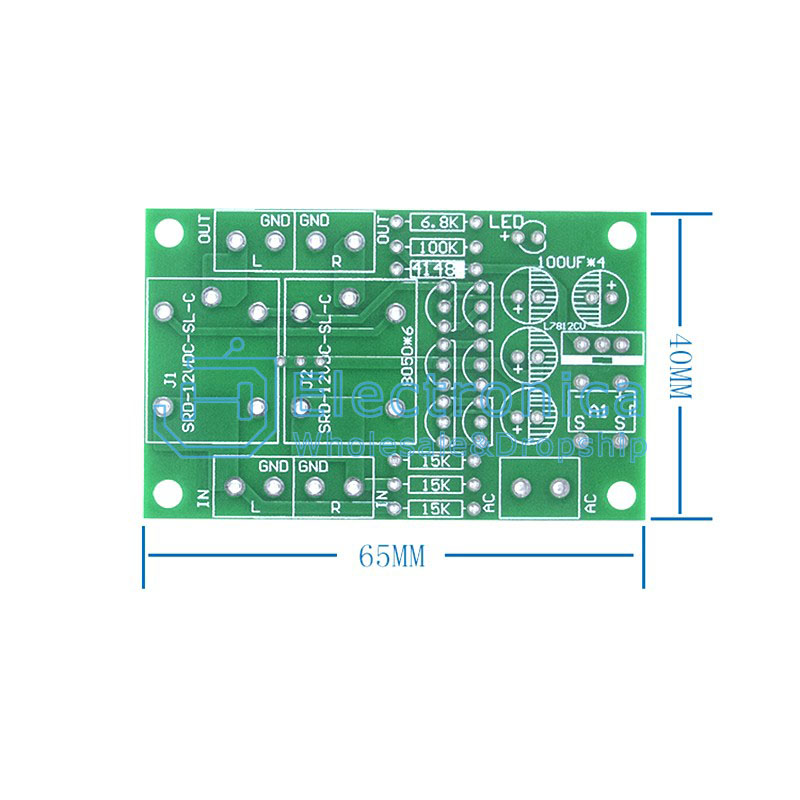

PCB size:65*40mm
Kit weight:about 37g
Work temperature:-25℃~85℃
Work humidity:5%~95%RH
Note:
1.BTL circuit requires two sets of protection boards (one set for each channel).
2.The protection boards are only suitable for dual power supply amplifiers, not for single power supply amplifiers.

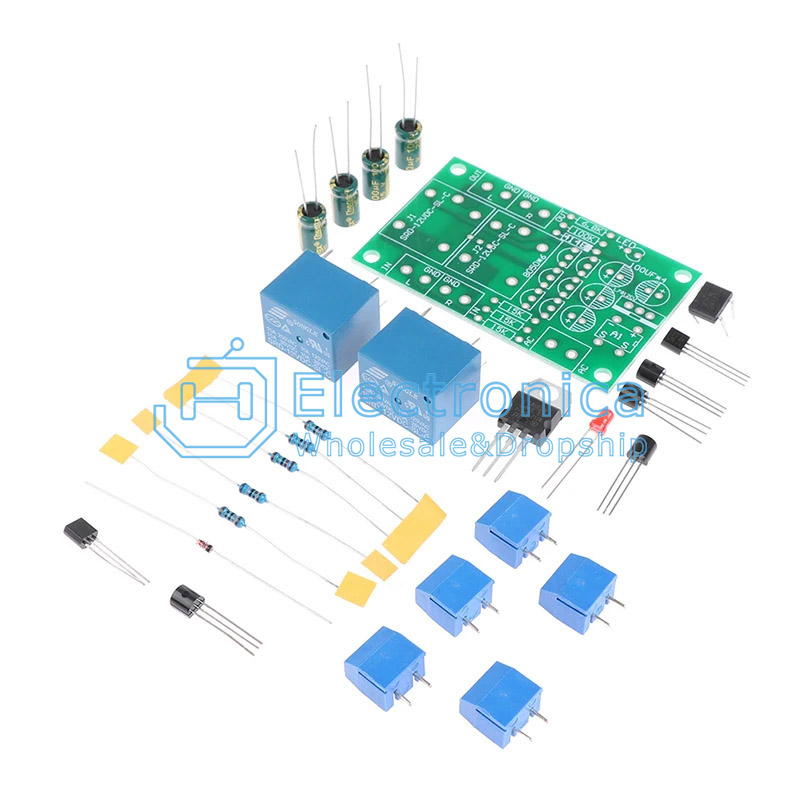

Component list:
SRD-12DC relay*2pcs
C8050 transistor*6pcs
25V 100UF electrolytic capacitor*4pcs
0.25W 15K metal film resistor*3pcs
0.25W 6.8K metal film resistor*1pc
0.25W 100K metal film resistor*1pc
Red light-emitting diode*1pc
1N4148 switching diode*1pc
DB107 rectifier bridge*1pc
7812 three-terminal regulator module*1pc
Screw type DG5.0-2P terminal block*5pcs
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
OUR GUARANTEE:
1: 90-Day Refund Policy
2: Comprehensive Customer Support
3: 100% Product Inspection on every order
4: Safe Payment
5: End to End Tracking for every order
If you need customized and packaged services, please contact us
Speaker Sound Protection Circuit Board
JH Stock: Our in-stock inventory at JH Huaqiangbei warehouse
Taobao Sourcing: Products sourced by JH Agent from a long-term cooperative and reputable Taobao store
1688 Sourcing: Products sourced by JH Agent directly from factories on 1688, which can support customization of logos, colors, styles and more
All products on JH webstore are guaranteed to meet JH's product standards with one-year warranty, and are shipped directly from JH warehouse in Shenzhen
style:
DIY parts

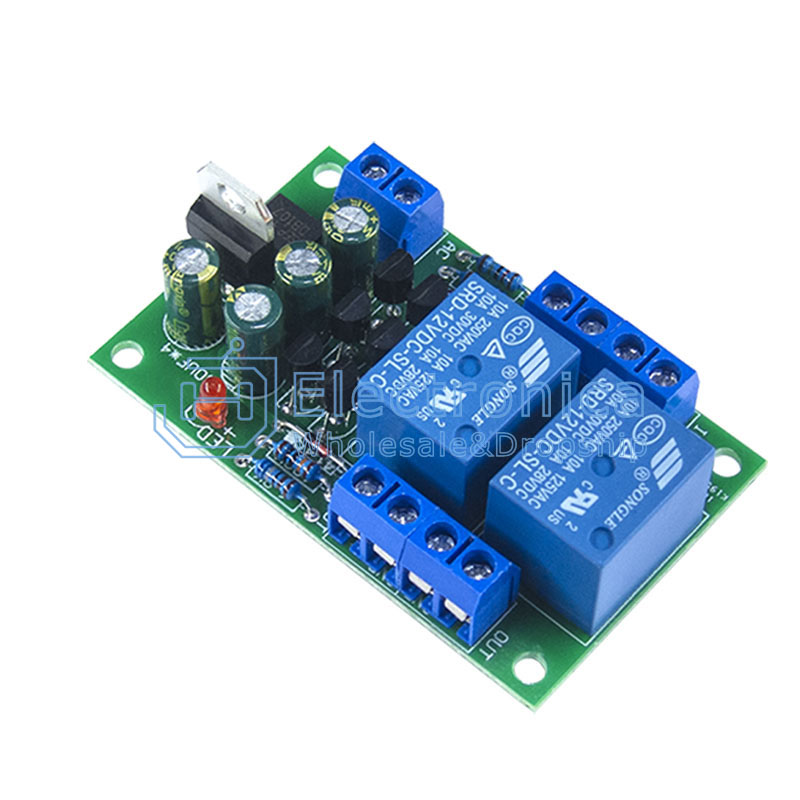

Finished product
