Description
Work Voltage:DC 5V
Speaker output:4 ohm 3W
Board size:7.6×6.8cm
Shell size:8.8×8×4.6cm
Shipping List:
Resistance 4.7Ω, color ring:yellow purple black silver brown:1
Resistance 1K color ring: brown black black brown:1
Ceramic capacitor 30pf:2
Monolithic capacitor 104:4
Electrolytic capacitor 10uf:2
Electrolytic capacitor 100uf:1
Electrolytic capacitor 470uf:1
Crystal oscillator 12M:1
5MM red LED:1
Discharge 470 Ohms:1
Blue and white potentiometer 50K:1
Key 6*6*17:2
Self locking switch cap:1
Resistance 10K, color ring:brown black black red brown:4
DC002 power socket:1
3.5mm audio stand:2
TEA5765 Module:1
Singlechip STC89C52RC:1
40P IC holder:1
Inline chip LM386:1
8P IC holder:1
0.56 inch 4-position common cathode digital tube:1
4 Euro 3W Horn:1
2P wire 10cm long:1
Radio antenna:1
DC002 power cord:1
PCB board:1
Product Introduction:
This kit is based on a 51 microcontroller and uses the TEA5767 radio module to search for frequencies, enabling the reception of 87.5MHZ-108MHz FM broadcasts. Two buttons can be used to adjust the increase or decrease of the radio frequency, and the current frequency can be displayed on a digital tube. The searched radio signal can be played through headphones, and can also be driven to sound through the LM386 amplification circuit
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

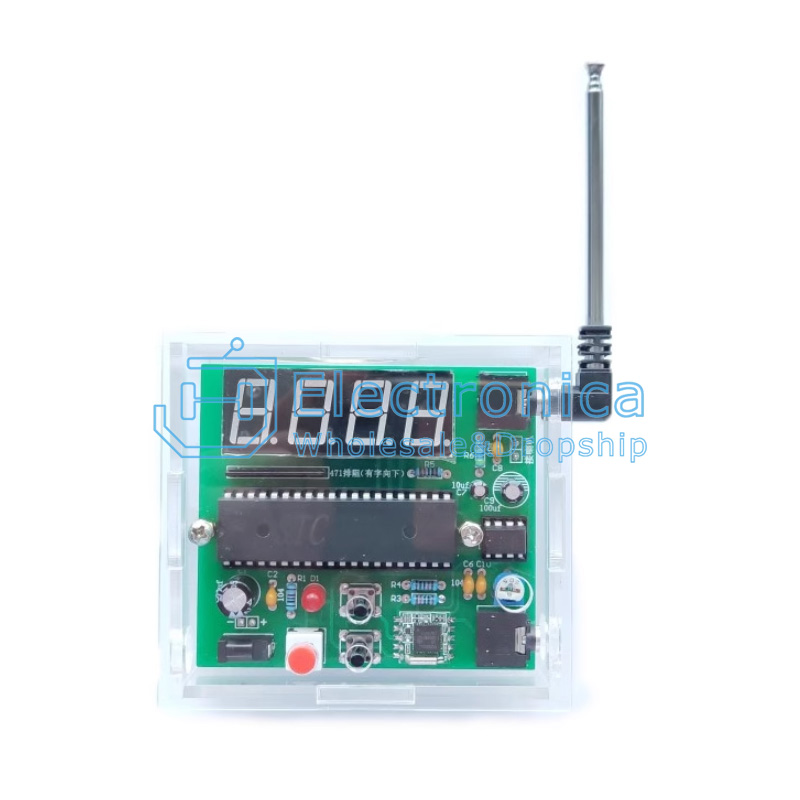

FM Digital Radio Kit
SKU : YXS709 Brand :
style：
.Kit(2).jpg)

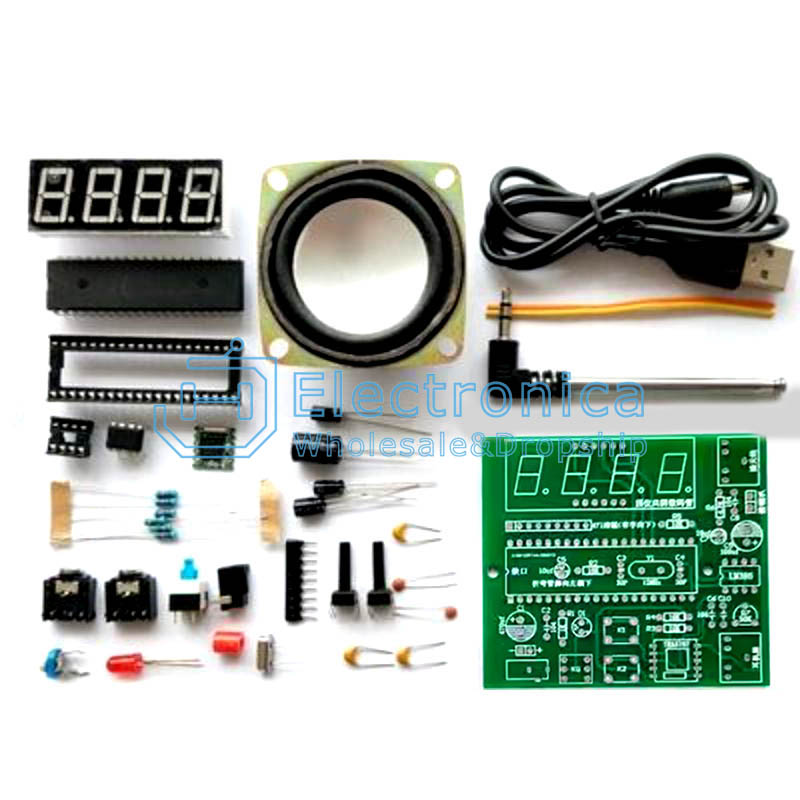

Kit

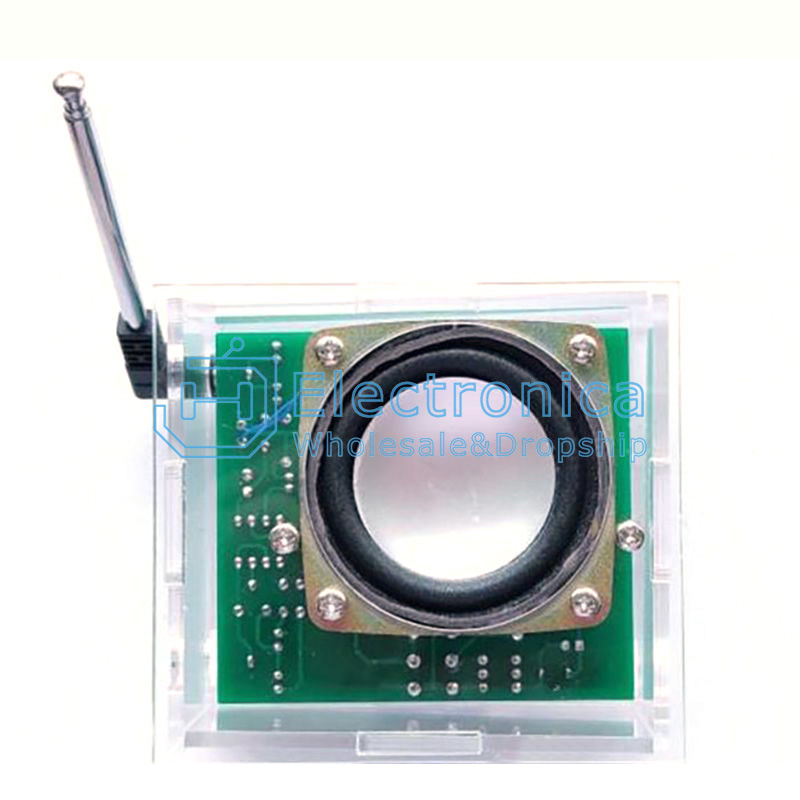

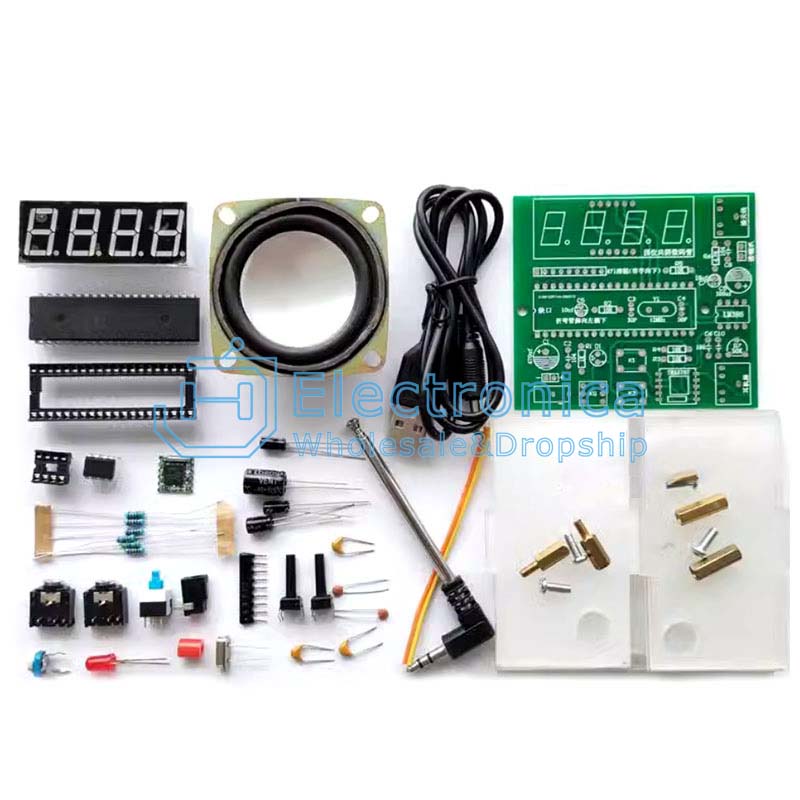

Kit+Shell
