Description

1. Weight：6g
2. Operating voltage range: DC4.5-20V
3. Static current: <60uA
4. Output level: high 3.3v / low 0v
5. Trigger: repeatable trigger (default)
6. Delay time: default 8S + -30% (can be customized range of a few tenths-tens of minutes)

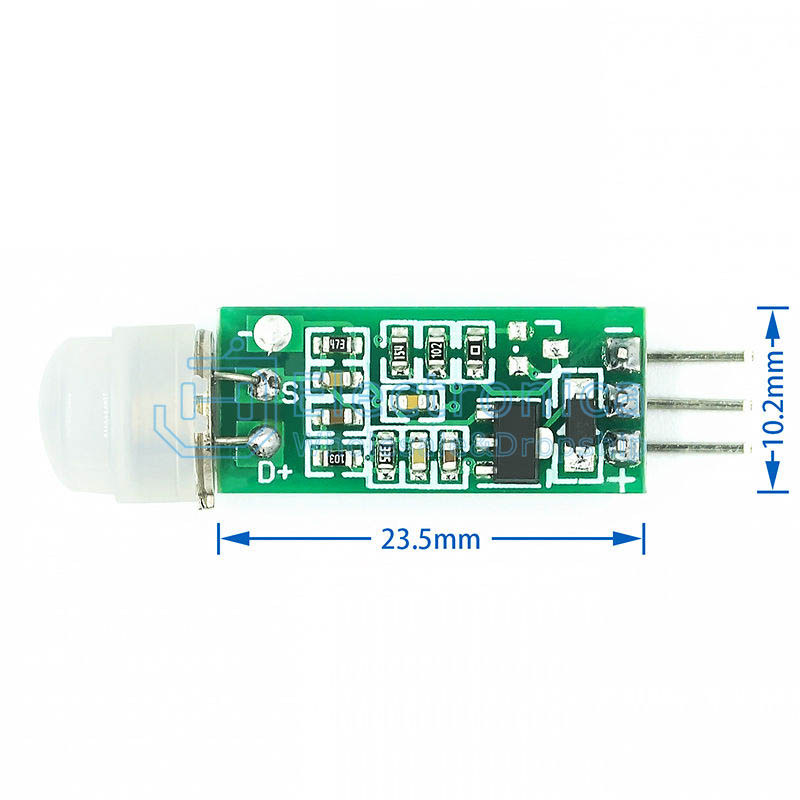

7. PCB Dimensions: 10 * 23mm
8. Induction angle: <100 degree cone angle
9. Induction distance: 3 meters
10. Working temperature: -20 - +80 degrees
11. Sensor lens dimensions: diameter: 10mm (default)
12. Automatic induction: to enter the sensing range of the output is high,people leave the sensor range automatically delay off high, output low.Ultra-small size.
13. Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay lOW (automatically extended sensor module detects the human body after every activity a delay period, and the last time an event is the starting point of the delay time).
14. Wide operating voltage range: the default operating voltage DC4.5V-20V.
15. Output high signal: easy docking and all kinds of circuits.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

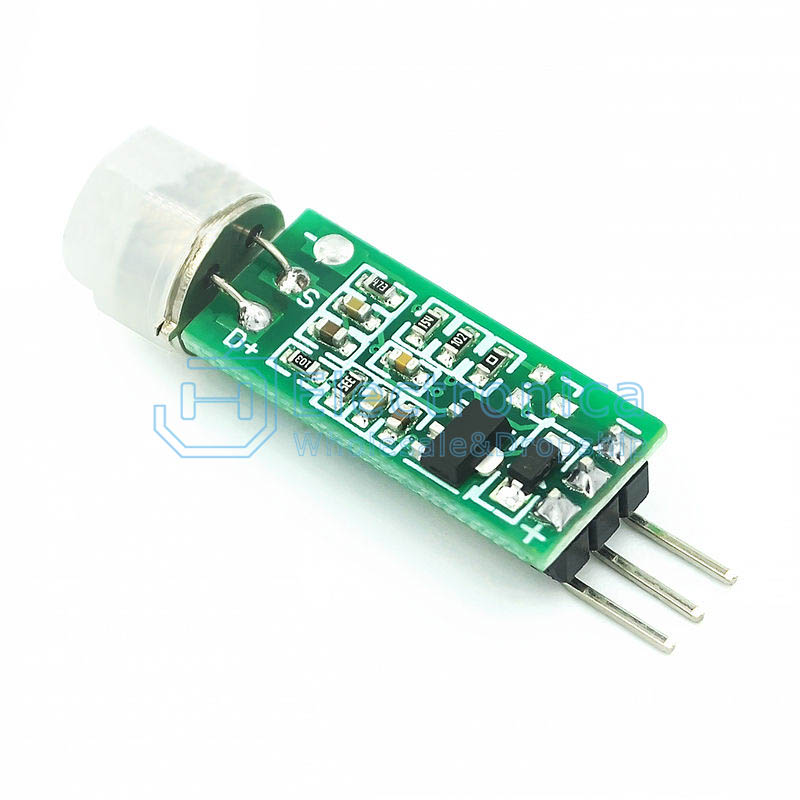

HC-SR505 Mini Infrared Motion Sensor

SKU : YXB211 Brand : JH Stock

Price : $ 0.42

100 +: $0.42500 +: $0.421000 +: $0.42
