Description

1.Detection distance, test white paper about 2 cm. Different color different distance more white.

2.Power supply Voltage: 2.5 volts ~12 Volts, no more than 12 volts

(note: The use of power supply voltage is low, the power supply voltage is too high, the sensor life will be shortened, 5 kv power supply for the preferred power).

3.Working current, 5 V 18-20ma. After several tests, the sensor hardware is set to the best performance of the current 18 Ma 20 ma, mainly in the capacity-jamming.

If you need a small power consumption, we can modify it, at least they can do

5.You can display a message.
4.The detected object, the final output signal level is low, the object is not detected, the final output signal high level.
5. TTL level sensor output can be directly connected to the MCU IO Port 3.3 volts or 5 volts.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

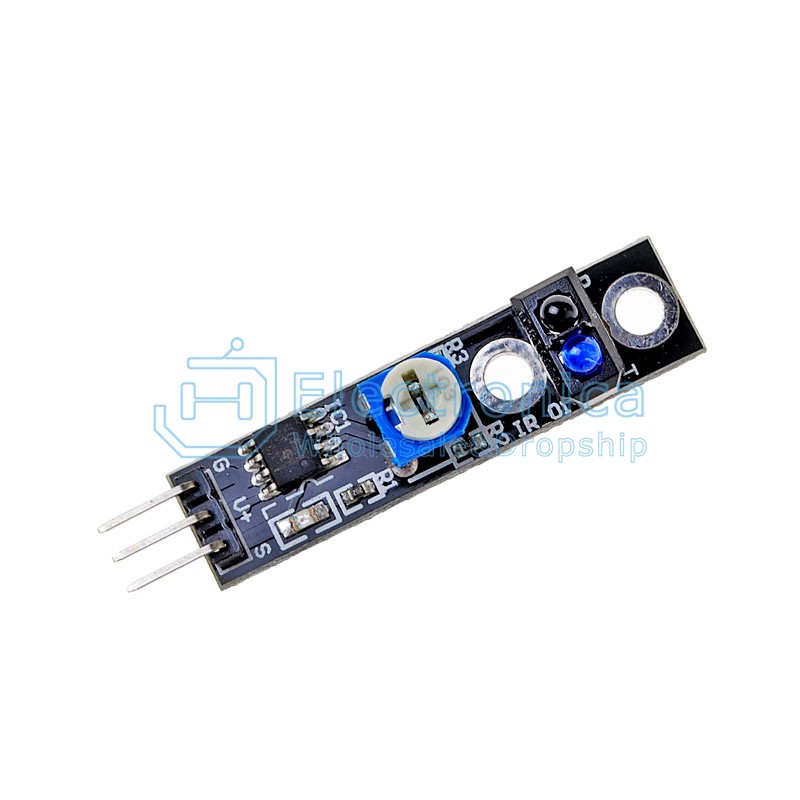

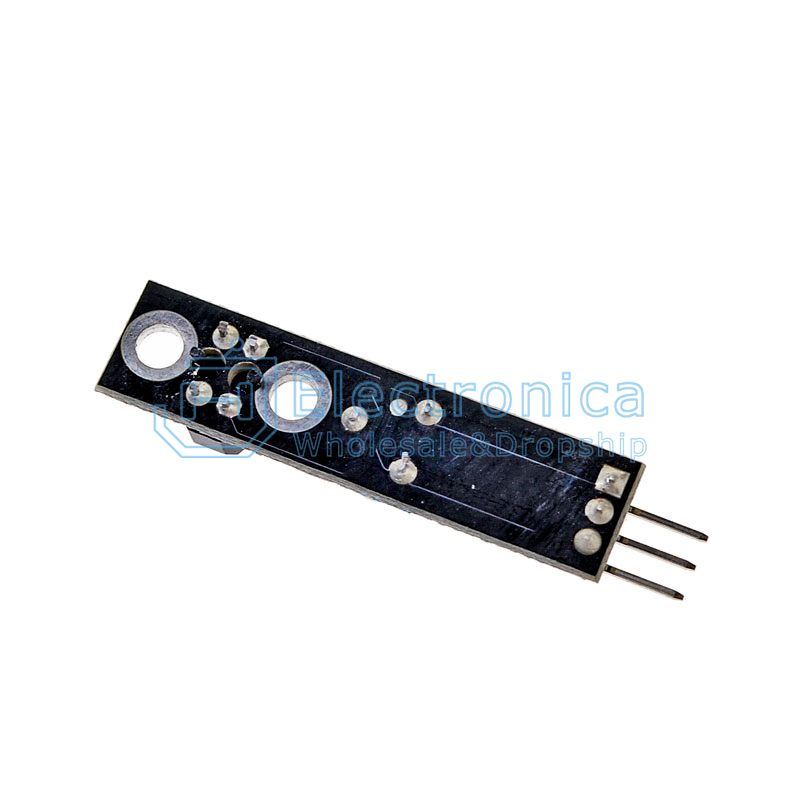

KY-033 TCRT5000 Tracking Sensor

SKU : YXK546 Brand : JH Stock

Price : $ 0.22

100 +: $0.22500 +: $0.221000 +: $0.22

Quantity :

- +

ADD TO CART
