Description

1. Outline
US-016 ultrasonic ranging module can achieve 2cm ~ 3m non-contact distance measurement function, the power supply voltage of 5V, operating current of 3.8mA, support for analog voltage output, stable and reliable. This module can be set to different ranges according to different scenarios (maximum measuring distance of 1m respectively and 3m); when the Range pin is floating, the range is 3m.
US-016 capable of measuring a distance into an analog voltage output, the output voltage is proportional to the measured distance.

2. The main technical parameters
Electrical parameters: US-016 Ultrasonic Ranging Module
Operating Voltage: DC 5V
Working Current: 3.8mA
Working temperature: 0 ~ + 70 degrees
Analog output voltage: (0 ~ Vcc)
Induction angle: less than 15 degrees
Detection distance: 2cm-300cm
Detection accuracy: 0.3cm + 1%

Resolution: 1mm

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

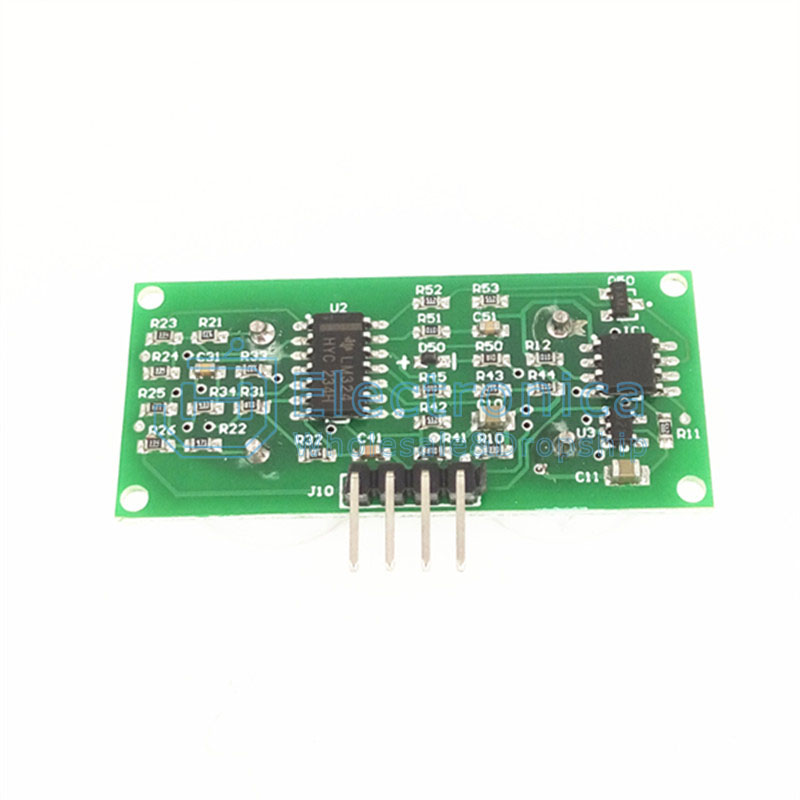

US-016 Dual Range Analog Ultrasonic Ranging Module

SKU : YXC339 Brand : JH Stock

Price : $ 1.12

100 +: $1.12500 +: $1.121000 +: $1.12

Quantity :

- +

ADD TO CART
