Description

Effective distance:2-30cm
Working voltage:3.3V-5V
Detection angle:35°
Circuit board size:3.2cm*1.4cm
The comparator uses LM393 for stable operation
The module can be powered by a 3-5 V DC power supply. When the power is turned on, the red power indicator light lights up
The detection distance of this sensor can be adjusted by a potentiometer, with characteristics such as low interference, easy assembly, and easy use. It can be widely used in robot obstacle avoidance, obstacle avoidance cars, assembly line counting, black and white line tracking, and many other occasions

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

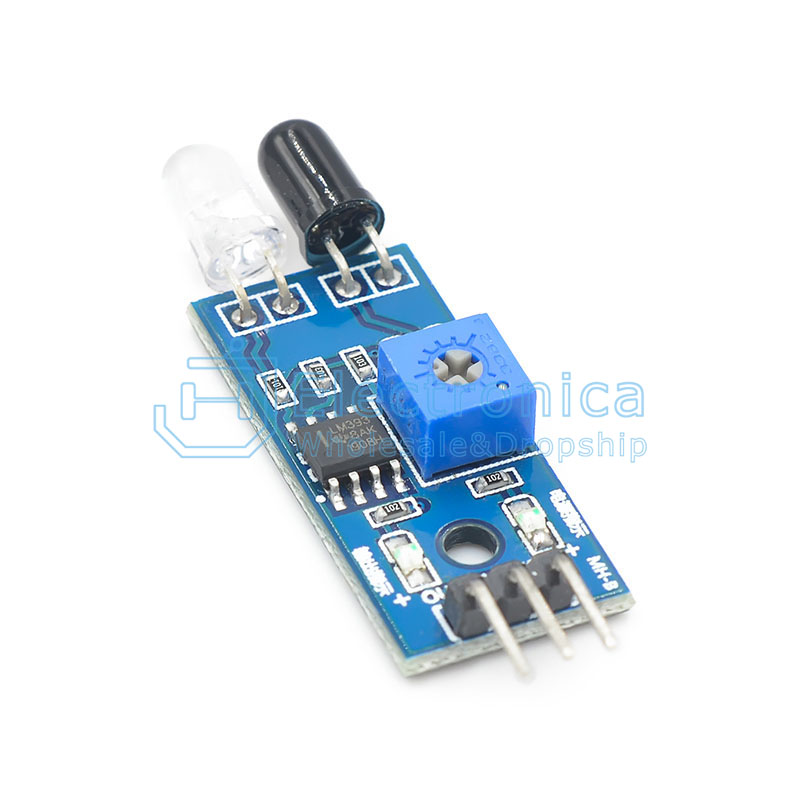

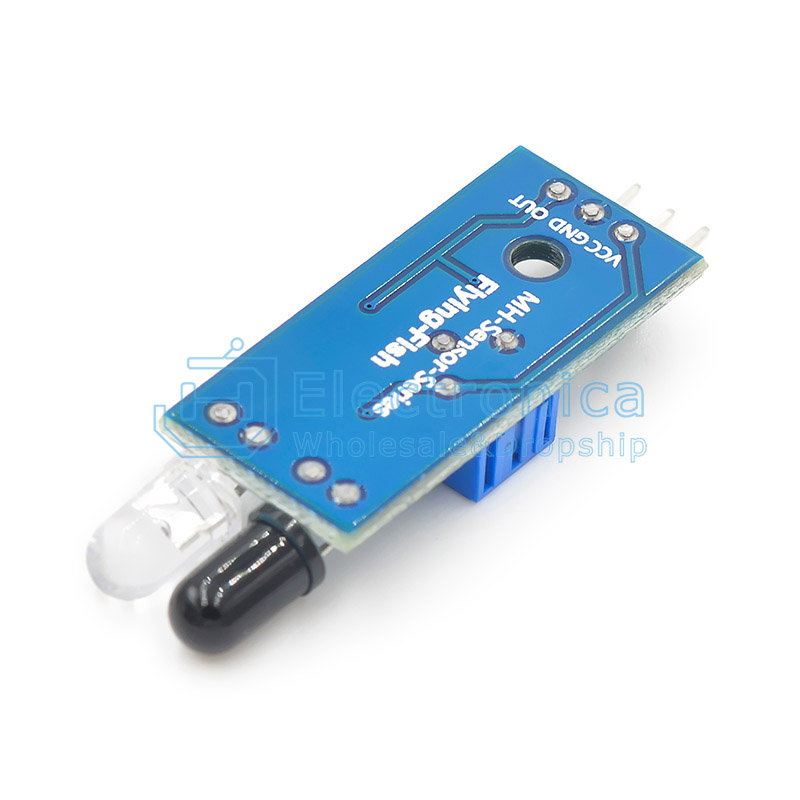

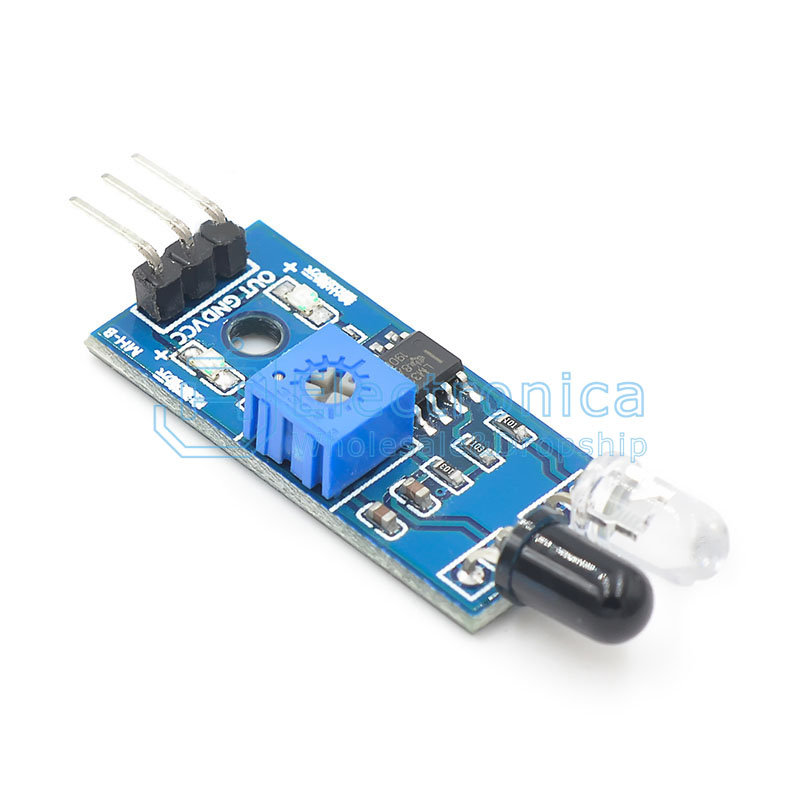

3pin IR Infrared Obstacle Avoidance Module

SKU : YXC108 Brand : JH Stock

Price : $ 0.19

100 +: $0.19500 +: $0.191000 +: $0.19
