Description

Operating Voltage 3.3V-5V.
The output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output.
A fixed bolt holes for easy installation.

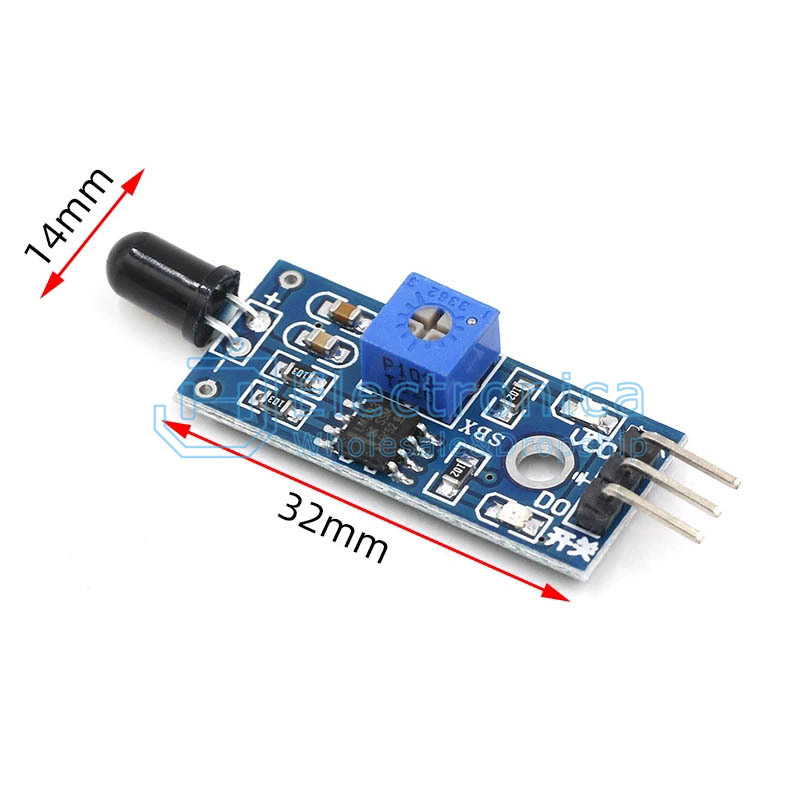

Small plates PCB size: 3.2cmx1.4cm.
Using a wide voltage LM393 comparator.
Wiring Instructions:
1. VCC: VCC3.3-5V.
2 .GND: GND.
3. DO: TTL switch signal output.
4. AO: Analog Output.

Detection flame wavelength:760nm~1100nm
Test flame distance:80cm
Detection angle:60°
Comparator output,clean signal,good waveform, strong driving ability,over 15mA

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

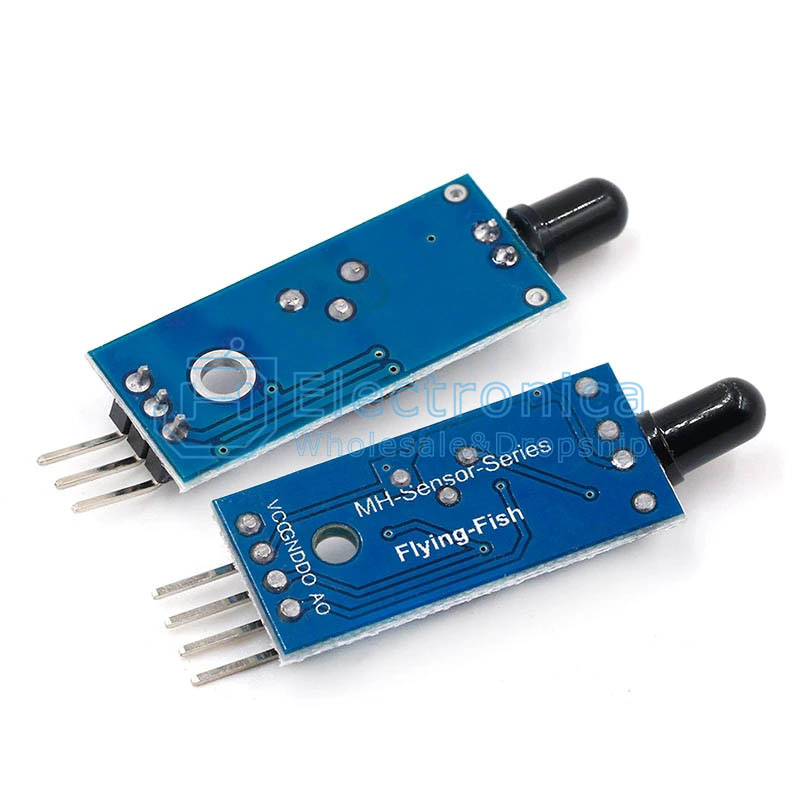

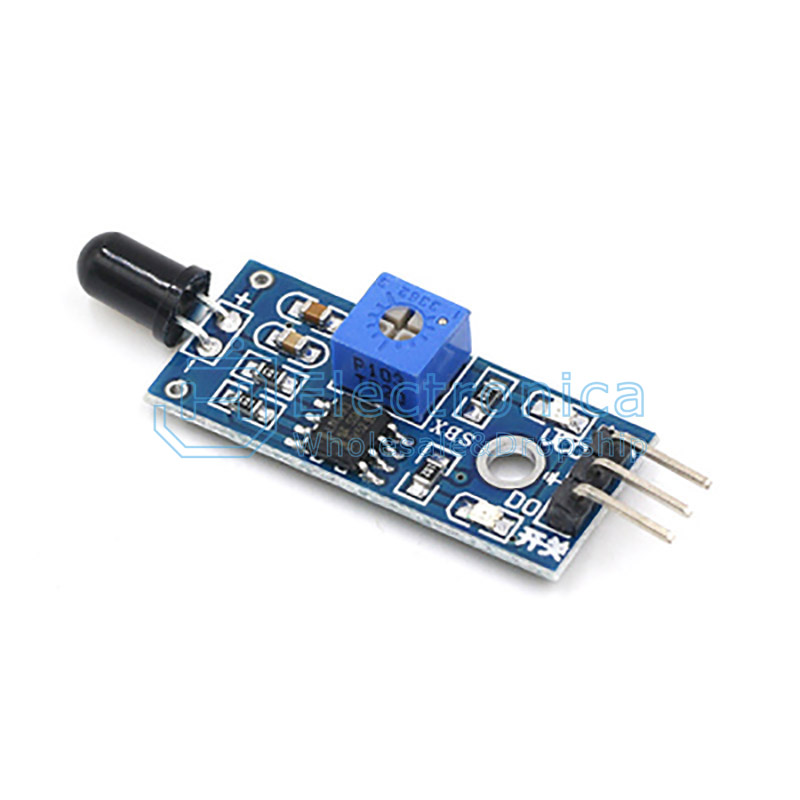

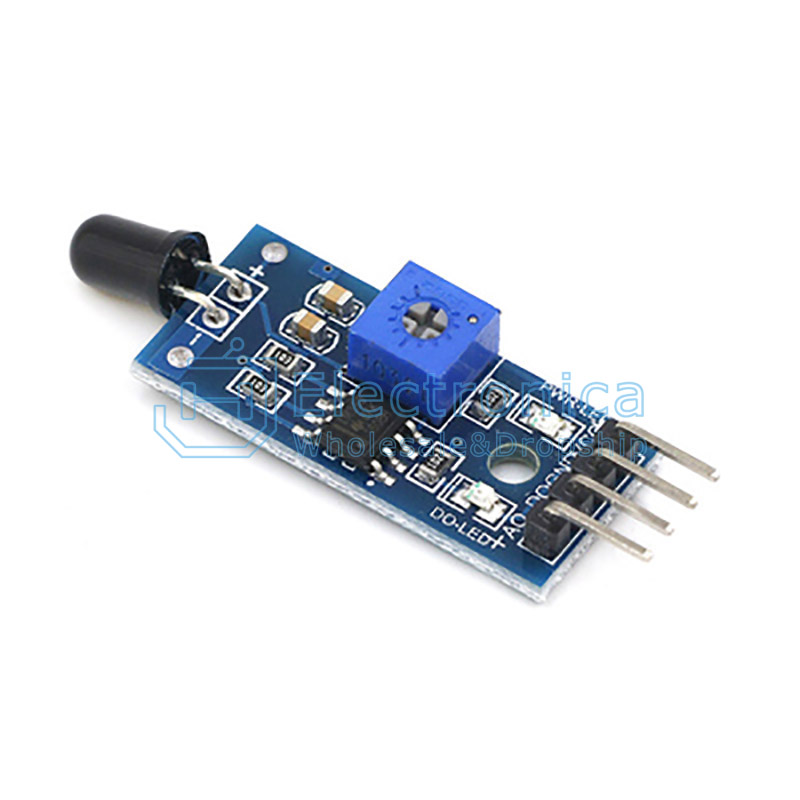

Infrared Flame Detect Sensor

SKU : YXC107 Brand : JH Stock

Price : $ 0.19

100 +: $0.19500 +: $0.191000 +: $0.19

Style：

3Pin
4Pin
