Product Parameters:
Continuous energy harvesting from low voltage input supply:VIN ≥80mV
Ultra-low quiescent current:IQ<330nA(typical)
Cold start voltage:VIN≥330mV(typical)
Energy input voltage VIN(DC):0.13V-3V
Energy storage element BAT voltage:2.5V-5.25V
Operating ambient temperature:-40℃~85℃
Step-Up mode switching frequency:Maximum 1MHZ

Product Features:
CJMCU-25504 is the first new intelligent integrated energy acquisition and micro power management solution, very suitable for low-power applications with special needs. This device is specially designed to collect and manage micro watt (uw) to milliwatt (mW) level power generated in various DC sources such as photovoltaic (solar) generators or thermoelectric generators. Bq25504 is the first of its kind to implement an efficient boost converter 1 charger for products and systems with strict power and operational requirements, such as wireless sensor networks (WSNs). The design of Bg25504 started with a DC-DC boost converter/charger that only requires micro watts of power to start working

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

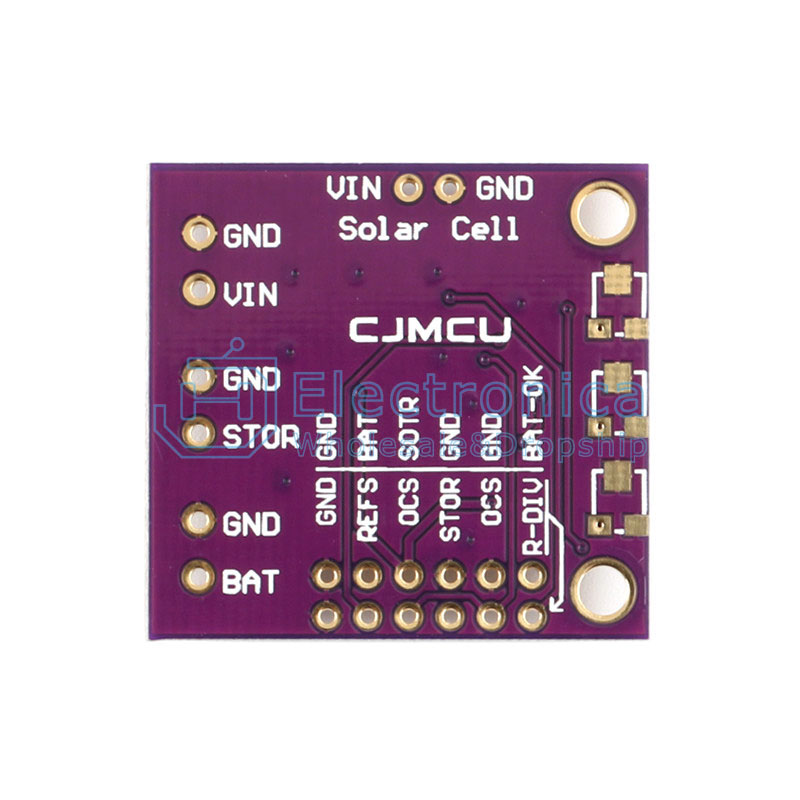

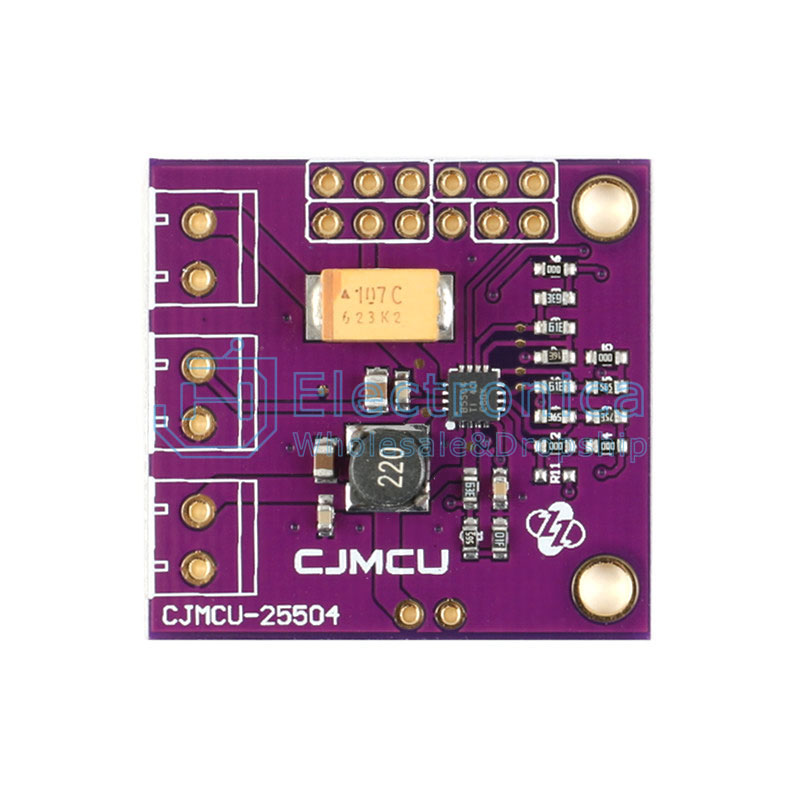

CJMCU-25504 Solar Photovoltaic Energy Collector

SKU : YXS1053 Brand :

Price : $ 8.76

100 +: $8.76500 +: $8.761000 +: $8.76
