Description

Input voltage: DC 8.5-48V
Input current: 10A (MAX), if exceeds 8A, please strengthen the heat dissipation
Static working current: 10mA (12V up 20V, the higher the output voltage is, the higher the static current will increase)
Output voltage: 10-50V continuous adjustable
Constant current range: 0.2-8A
Working temperature: -40 - 85℃ (please strengthen the heat dissipation when the ambient temperature is too high)
Work frequency: 150KHz
Conversion efficiency: maximum 96% (efficiency is related to input/output voltage, current, voltage difference)
Install mode: 4*3mm screw holes
Connection mode: wiring output
Module size: 70 x 36.2x 20mm

Weight:66g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

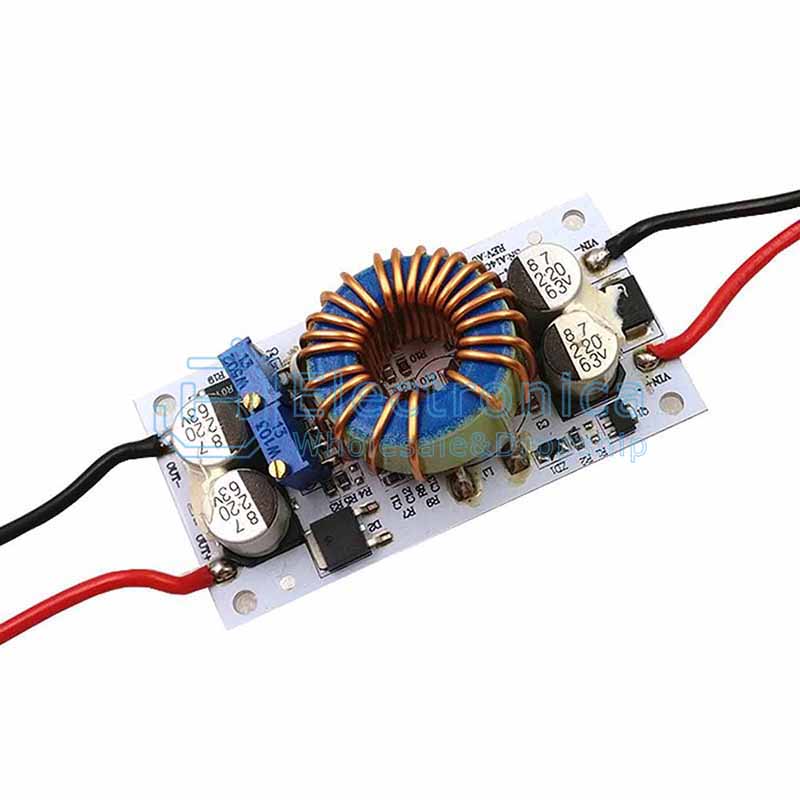

250W Adjustable High Power Boost Power Module

SKU : YXA333 Brand : JH Stock

Price : $ 1.18
