Description

1.Applicable to a variety of platforms including for Arduino /AVR/ARM/PIC
2.The module is a convenient carrier for eight IR emitter and receiver pairs evenly paced.
3.Distance between each IR Sensor: 15MM
4.Uses 5 sensors for best resolution
5.Great useful in building fast line following and grid navigating robots
6.Comes with easy to use digital outputs with a direct connection to micro controllers
7.The array has mounting holes of 3mm diameter for easy mounting
8.Status LED on each sensor for the detection of black line
9.VCC: VCC is the power input port, which could access 3.3V To 5V Voltage
10.GND: GND is the negative input of the power supply
11.OUT1To 5: OUT is the signal output port, MCU link I / O port

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

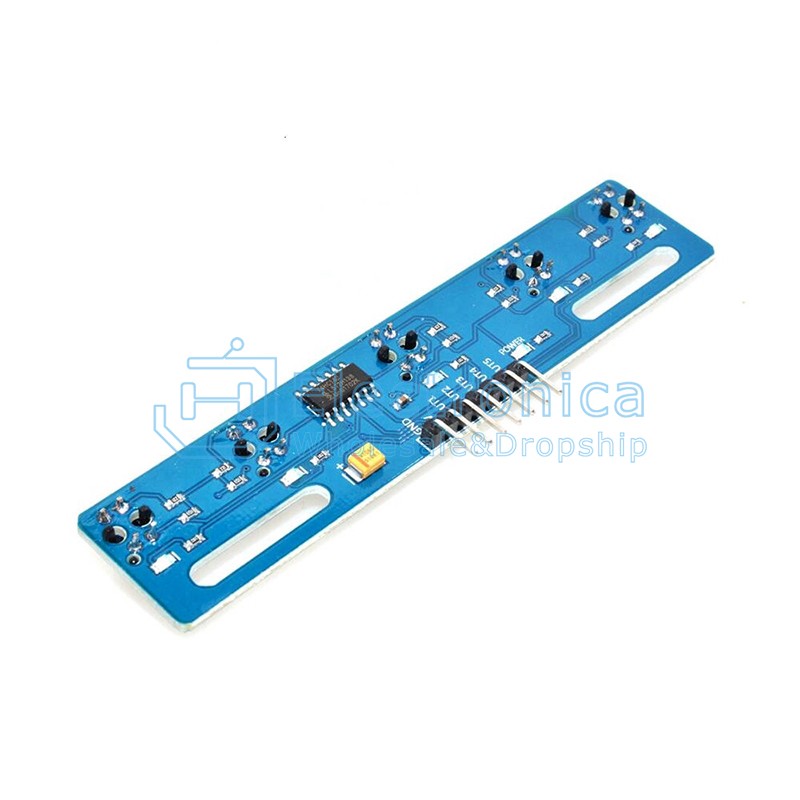

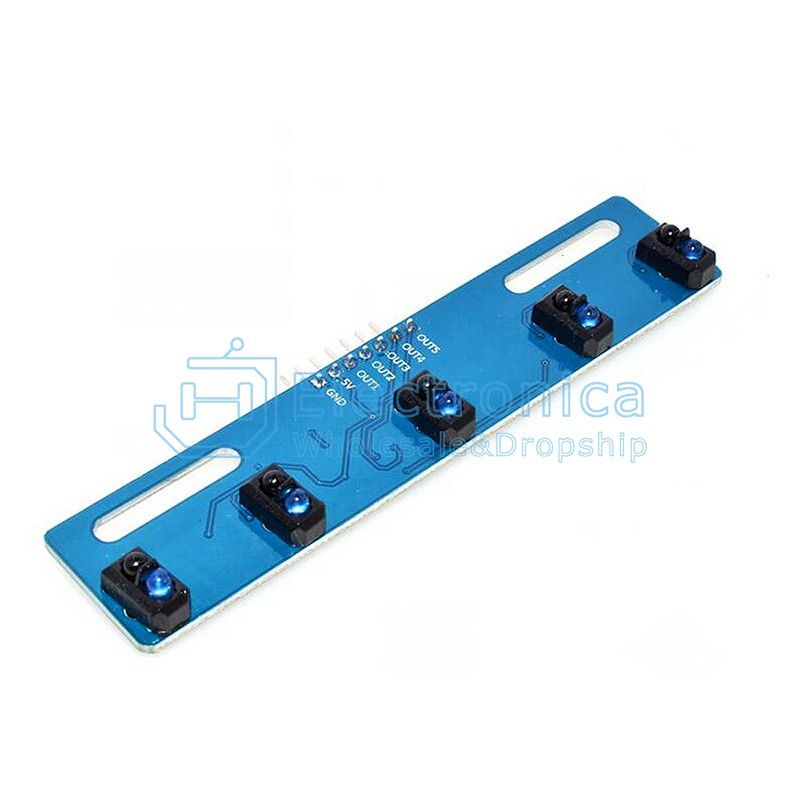

5 Channel TCRT5000 IR Infrared Line Tracking Sensor

SKU : YXC084 Brand : JH Stock

Price : $ 0.93
