Description

Pulse width output: serial port output
Working voltage: DC: 3.0-5.5v
Working current: less than 8 Ma
Probe frequency: 40KHz
Long range: 600cm
Short range: 20cm
Long range accuracy: ± 1cm
Resolution: 1 mm
Measuring angle: 75 degrees
Input trigger signal: 1, more than 10us TTL pulse, 2, serial port send command 0x55
Output echo signal: output pulse width level signal, or TTL

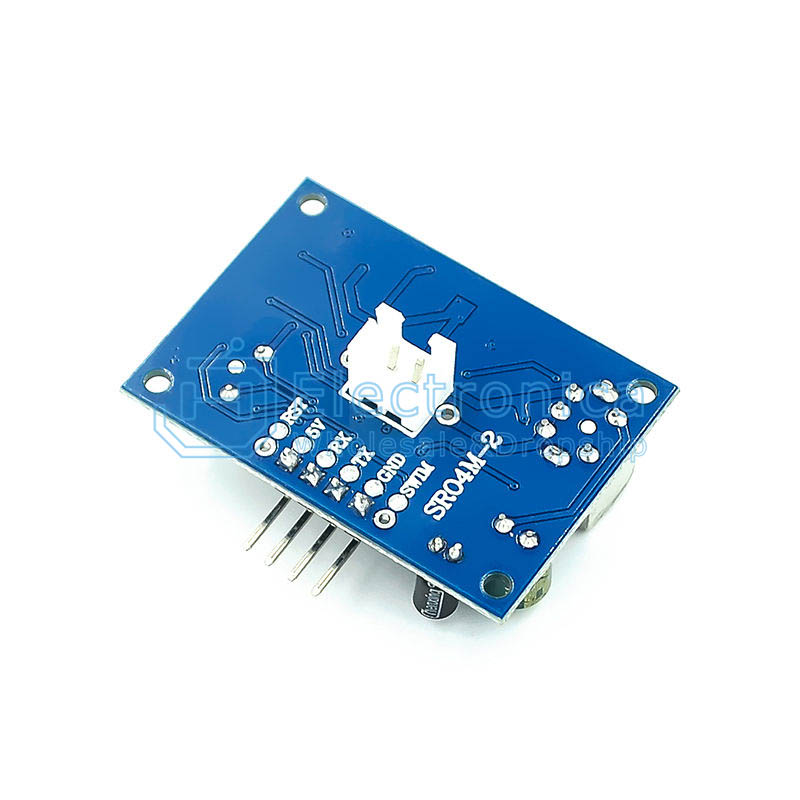

Wiring mode: 3-5.5v (positive pole of power supply). Trig Rx. Echo TX. GND (negative pole of power supply)

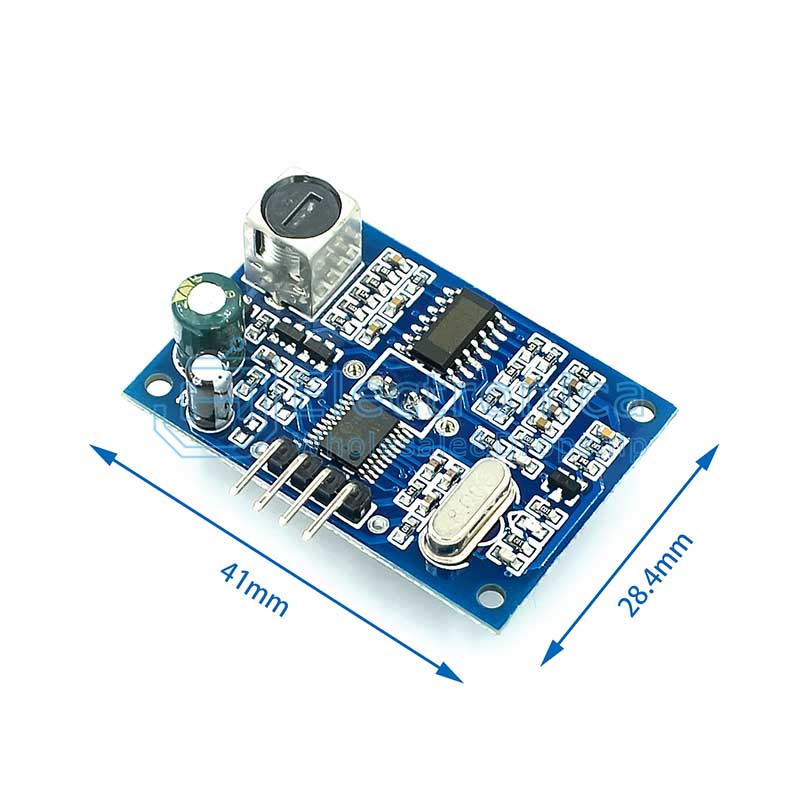

Product size: l42 * W29 * H12 mm
Working temperature: - 20 ℃ - + 70 ℃
Product color: PCB is blue

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

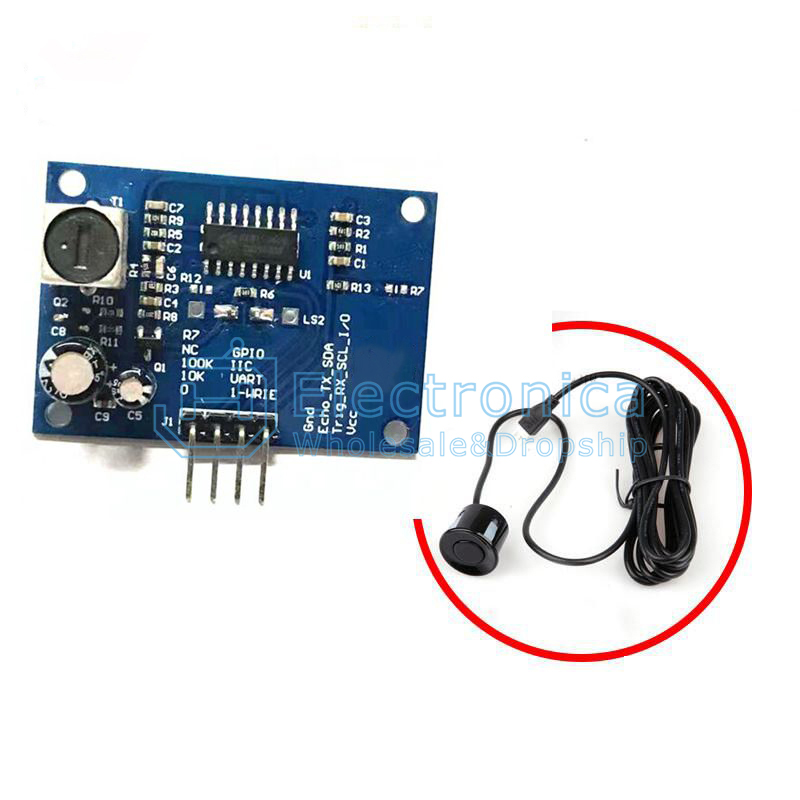

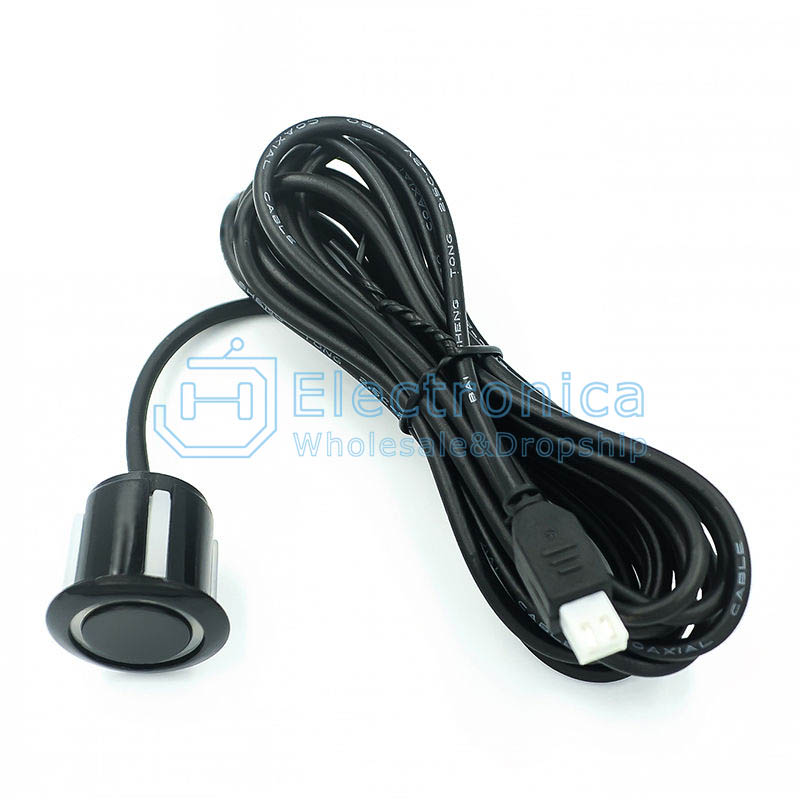

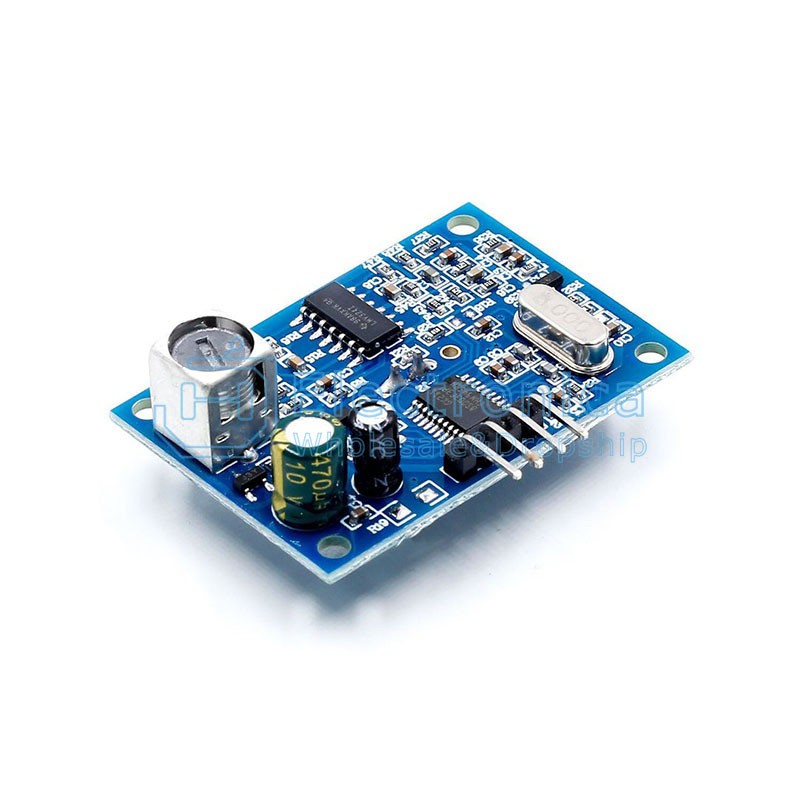

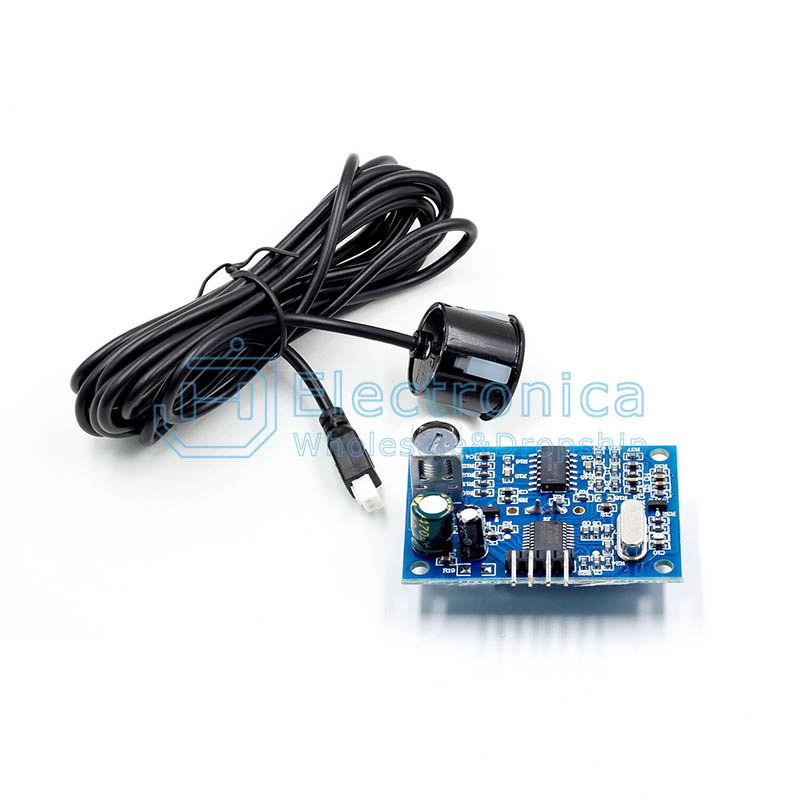

JSN-SR04T Ultrasonic Ranging Module

SKU : YXB202 Brand : JH Stock

Price : $ 0.73~1.69

100 +: $0.73~1.69500 +: $0.73~1.691000 +: $0.73~1.69

Style：

Module
Wire
Module+Wire
New version module+cable
