Description
Resolution ratio:240*RGB*280
Interface:SPI
Control chip:ST7789V2
Size:30.07*37.43*1.56mm
Pixel pitch:0.11655*0.11655
Working voltage:3.3V
Working temperature:-20~70℃
Backlight type:3 white LED parallel
Brightness:480(TYP)Cd/m2
Pin:12 Pin
Weight:3.4g
Connection:0.7mm pitch welded FPC
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

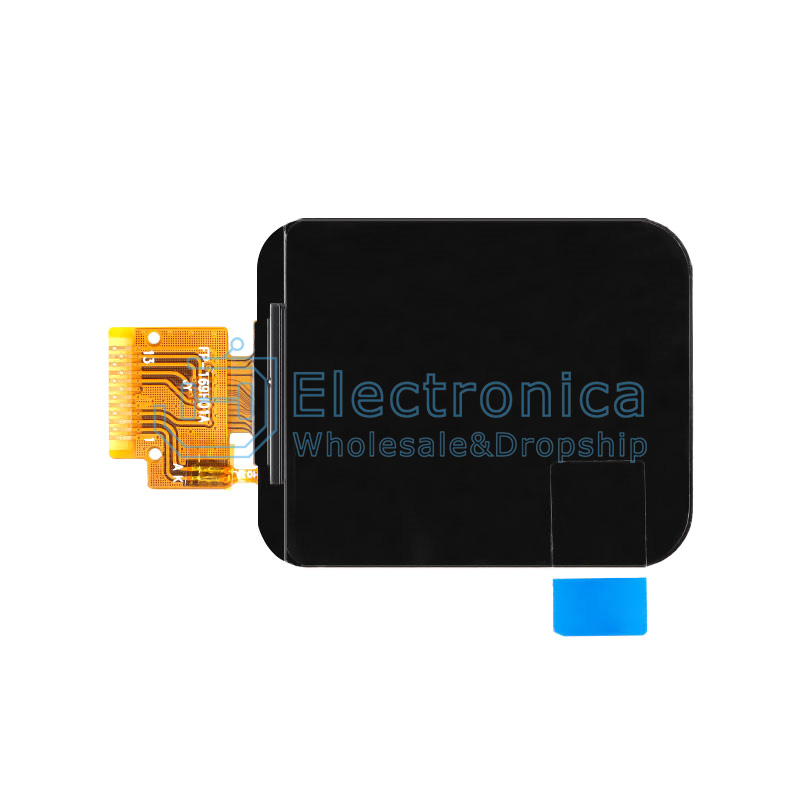

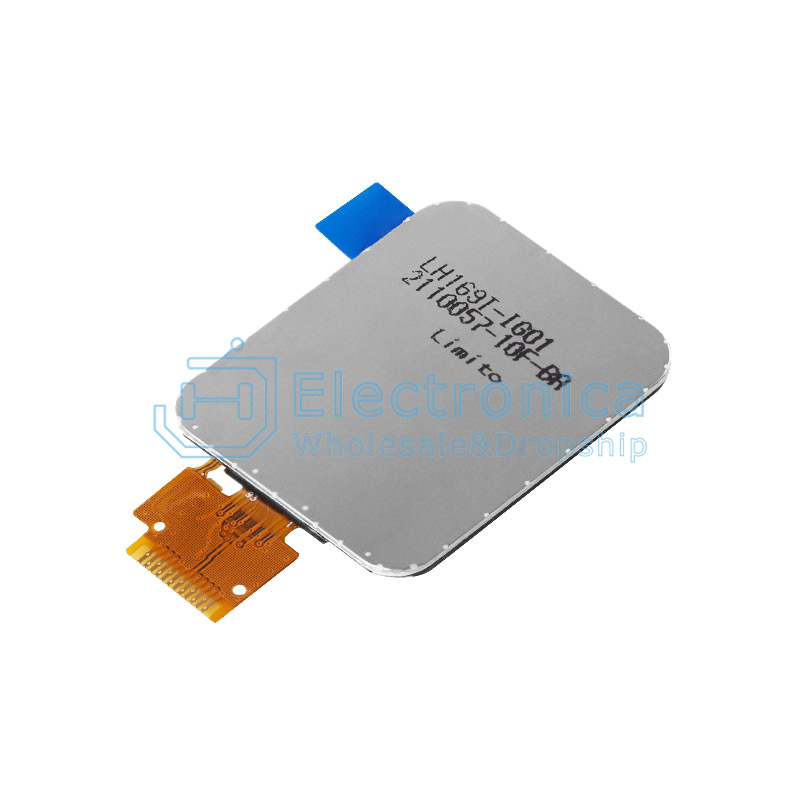

1.69 Inch TFT IPS Display Screen
SKU : YXS1001 Brand :
