Description

Module Properties: Non-isolated boost module (BOOST)

Input voltage: DC10V-60V

Input Current: 10 (MAX)

Static operating current: 10mA (12V or 20V, the higher the output voltage, the static will be too much)
Output voltage: 12-60V continuously adjustable (default output 19V shipping, other voltage, please note the treasurer)
Output current: 10A above 6A Please strengthen the heat (with the input and output pressure difference is bigger, the output current is smaller)
Constant current range: 0.2-10A
Output power: = input voltage * 10A, such as: input 12V * 10A = 120W, input 24V * 10A = 240W, input 36V * 10A = 1360W, input 60V * 10A = 600W,
Operating temperature: -40 ~ +85 degrees (when the ambient temperature is too high, please strengthen the heat)
Working frequency: 150KHz
Conversion efficiency: 92% -96% (efficiency and input, output voltage, current, pressure related)
Input reverse polarity protection: No (Note the positive and negative are not reversed)
Installation: 4 3mm screw holes
Wiring method: wiring output

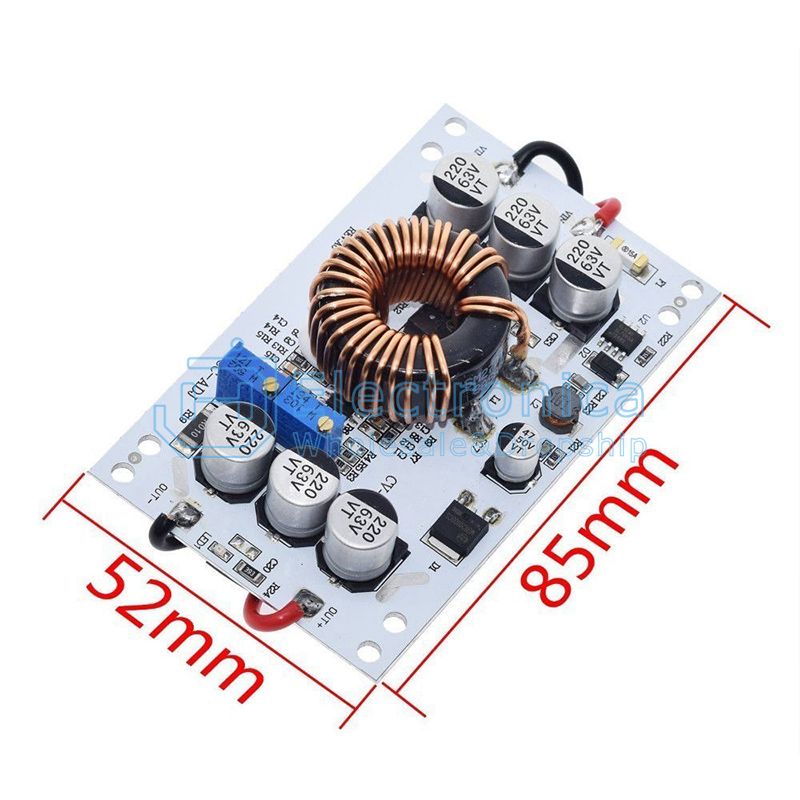

Module Size: Length 85mm Width 52mm Height 21mm

Module weight: 80 grams

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

DC-DC 600W 12V Adjustable 10A Step Up Constant Current Power Supply Module

SKU : YXC269 Brand : JH Stock

Price : $ 2.33

100 +: $2.33500 +: $2.331000 +: $2.33
