Description

Working voltage:DC 5.0~7.0 V
Working current:150mA
Size:71×60×25mm
Serial baud rate:600-230.4K(bps)
Storage temperature:-40~105℃
Storage humidity:5%~95% RH
Working temperature:-25~75℃
Working humidity:5%~95% RH
Network protocols:IP,TCP/UDP,ARP,ICMP,IPV4,HTTP
IP acquisition method:static IP,DHCP
Working mode:TCP Server/TCP Client/UDP Server/UDP Client/Httpd Client
Average transmission delay:<10ms
With the help of a serial server, traditional serial devices can connect to the local area network and the internet through network ports. Can access touch screens, SCADA software, and self built TCP servers for local or remote monitoring and control
Multi user access:The serial server connects to the local area network to achieve serial device access
Multi device management:The serial server connects to the central server to achieve centralized management of serial devices
Extension of serial port cable: Through the free "virtual serial port management software" provided by someone, remote management of target serial port devices can be achieved without the need to replace the serial port software
Peer to peer communication:Paired use of serial servers enables device communication without platform conditions

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

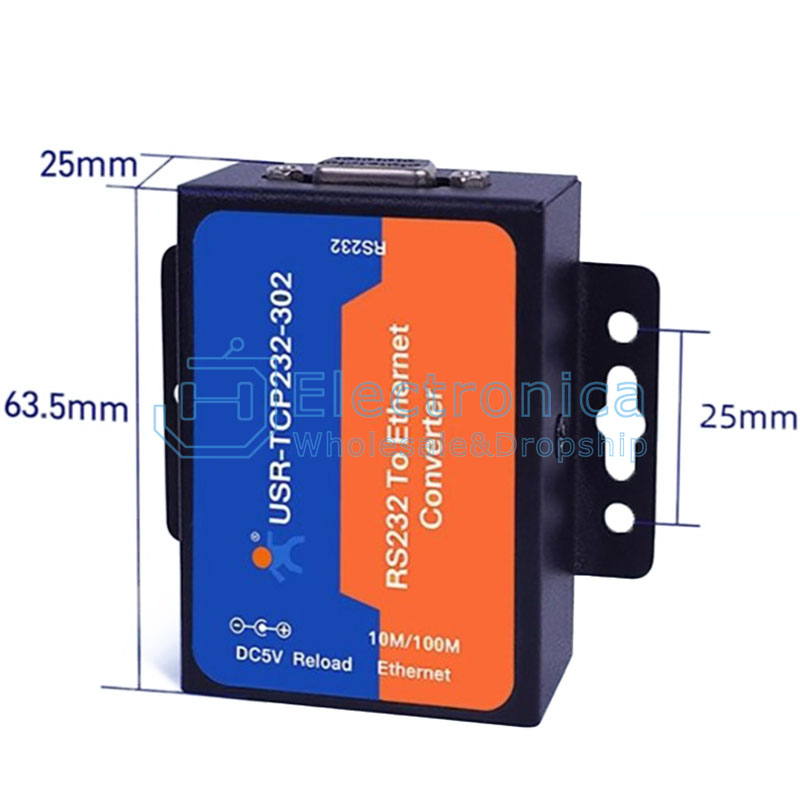

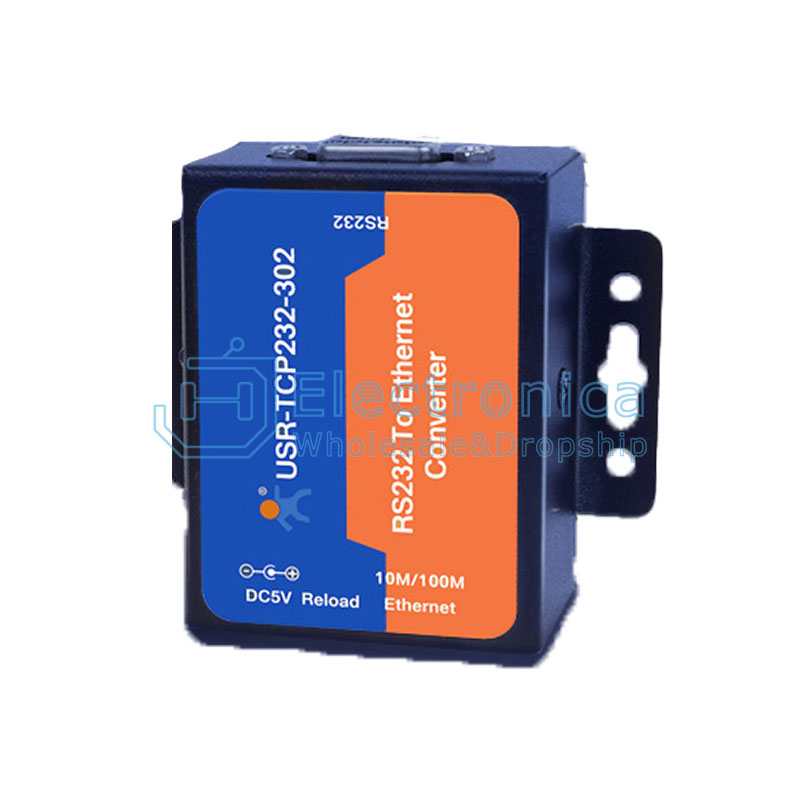

USR-TCP232-302 RS232 to Ethernet Converter

SKU : YXC952 Brand :

Price : $ 14.51

100 +: $14.51500 +: $14.511000 +: $14.51
