Description

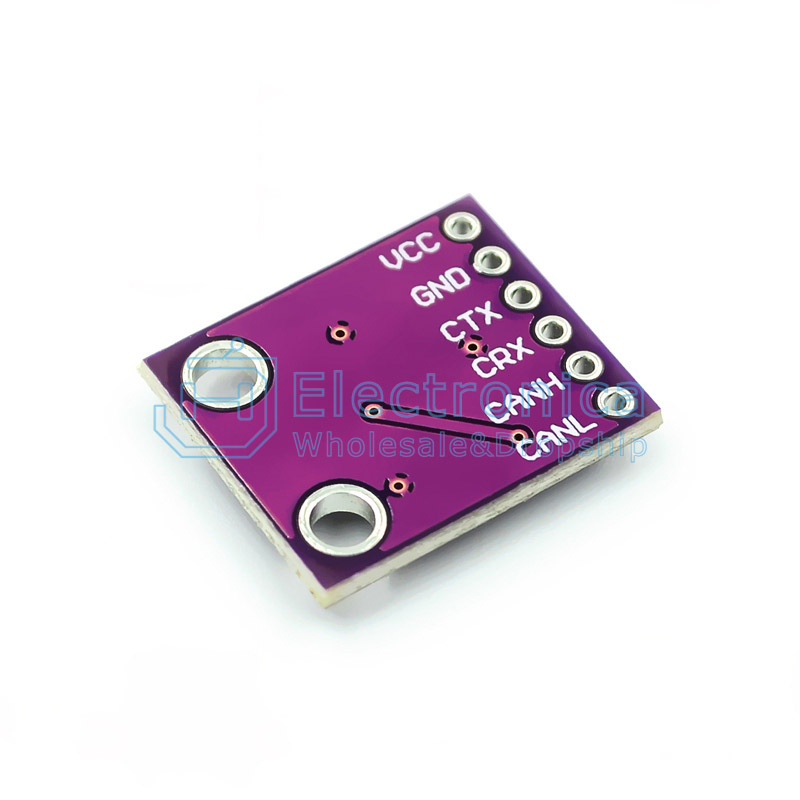

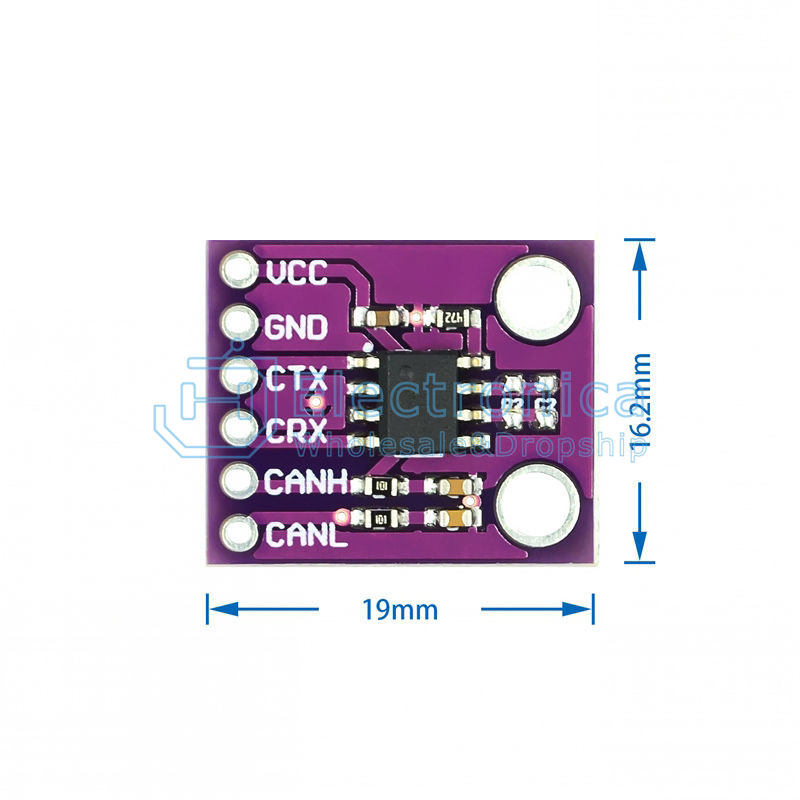

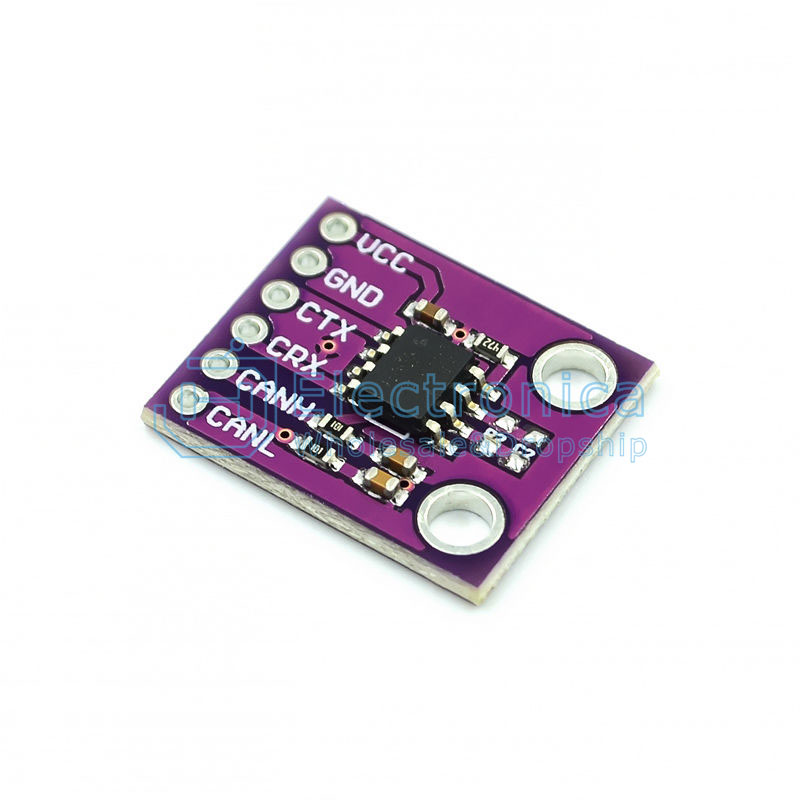

Mcp2551 high speed can communication protocol controller bus interface module

Cjmcu-2551 is a fault-tolerant high-speed can device, which can be used as can protocol controller and physical bus interface.

Mcp2551 can provide differential transceiver capability for CAN protocol controller.

It fully meets iso-11898 standard, including the requirement of 24 V voltage.

Typically, each node in can system must have a device to convert the digital signal generated by CAN controller into a signal suitable for bus transmission.

It also adds a buffer between the CAN controller and the high voltage spikes on the CAN bus, which may be generated by external devices.

Support 1MB / s running rate.
·Meet the physical layer requirements of iso-11898 standard.
·Suitable for 12V and 24V systems. Slope external control to reduce RFI.
·Automatic detection of TXD input grounding error.
·Power on reset and voltage event undervoltage protection.
·The CAN bus will not be affected if the node is not powered on or under voltage.
·Low current standby operation.
·Up to 112 nodes can be connected.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

MCP2551 CAN Communicate Protocol Controller

SKU : YXB273 Brand : JH Stock

Price : $ 0.42

100 +: $0.42500 +: $0.421000 +: $0.42
