Description

Features:
Power consumption:0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6kHz
“Always on” experience with low power consumption for both accelerometer and gyroscope
Smart FIFO up to 8 kbyte based on features set
Full scale:±2/±4/±8/±16g
Full scale:±125/±245/±500/±1000/±2000dps
Analog supply voltage:1.71V-5 V
SPI/I2C serial interface with main processor data synchronization feature
Embedded temperature sensor
Size:13mm*18mm

Description:
LSM6DS3 is an accelerometer and gyroscope sensor with a huge 8kb FIFO buffer and embedded interrupt processing function, specifically designed for the mobile phone market
The LSM6DS3 can read accelerometer data up to 6.7kS/s and gyroscope data up to 1.7kS/s for more accurate motion sensing. As mentioned earlier, due to the built-in FIFO of LSM6DS3, this breakthrough can also buffer up to 8KB of data between reading, hosting other sensors, and driving interrupt pins
Each pin on the LSM6DS3 has been disconnected, with one side of the board having power and I2C functions, while the other side has pins for controlling SPI function and interrupt output. The LSM6DS3 is a 3.3V device, so providing a voltage greater than~3.6V may permanently damage the IC. Any development platform running at 5V requires a logic level shifter

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

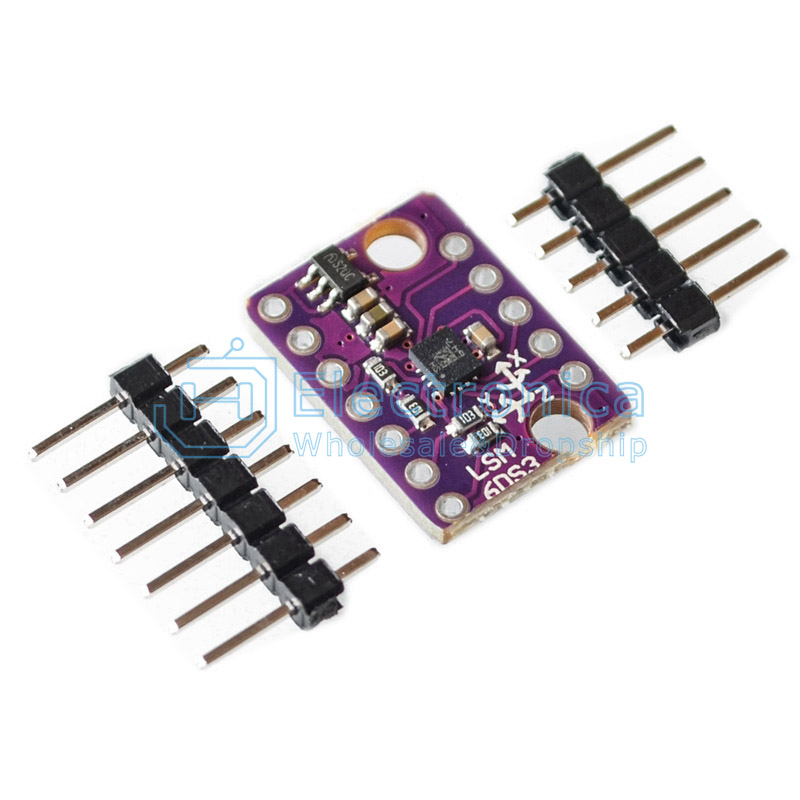

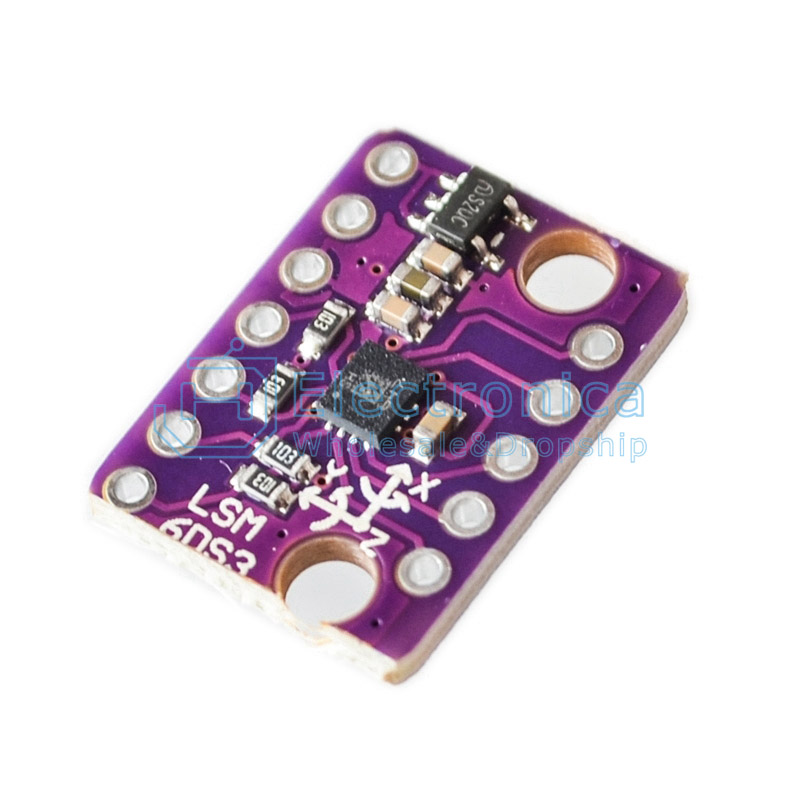

GY-LSM6DS3 IIC/SPI Transmission Module

SKU : YXC1077 Brand :

Price : $ 0.83

100 +: $0.83500 +: $0.831000 +: $0.83
