Description

Main features and pin functions

Sn65hvd230 can be used in high interference environment.

The main characteristics of the device are as follows

Fully compatible with iso11898 standard;
High input impedance, allowing 120 nodes;
Low current wait mode, typical current is 370 μ A；
The signal transmission rate can reach 1MB / s;
It has the function of thermal protection and open circuit failure protection;
It has the function of resisting instantaneous interference and protecting bus;
Slope control reduces radio frequency interference (RFI);
Differential receiver, with a wide range of common mode interference, electromagnetic interference (EMI) ability.
Working mode and control logic

Sn65hvd230 has three different working modes: high speed, slope and waiting.

Its working mode can be controlled by RS control pin.

Figure 2 is a typical application diagram of sn65hvd230 in CAN bus system.

As can be seen from the figure, the output pin TX of CAN controller is connected to the data input D of sn65hvd230, which can transmit the data sent by this can node to the can network;

The receiving pin RX of CAN controller is connected with the data output r of sn65hvd230 to receive data. Sn65hvd230 mode selection port RS is connected with a jumper and a slope resistor grounded at one end.

Three operation modes can be selected through hardware mode, among which the slope resistor is 0-100k Ω potentiometer.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

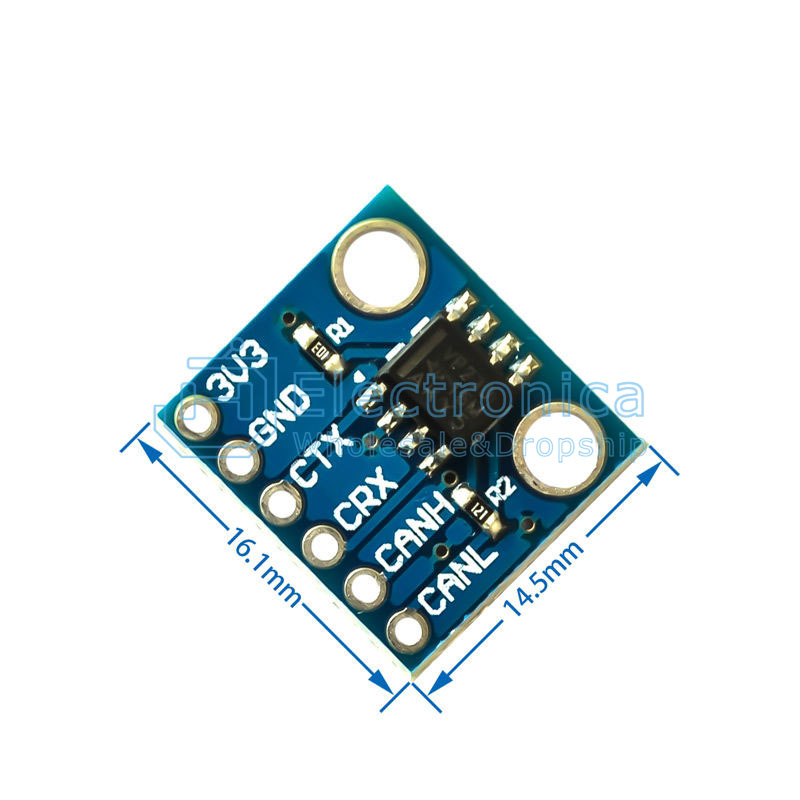

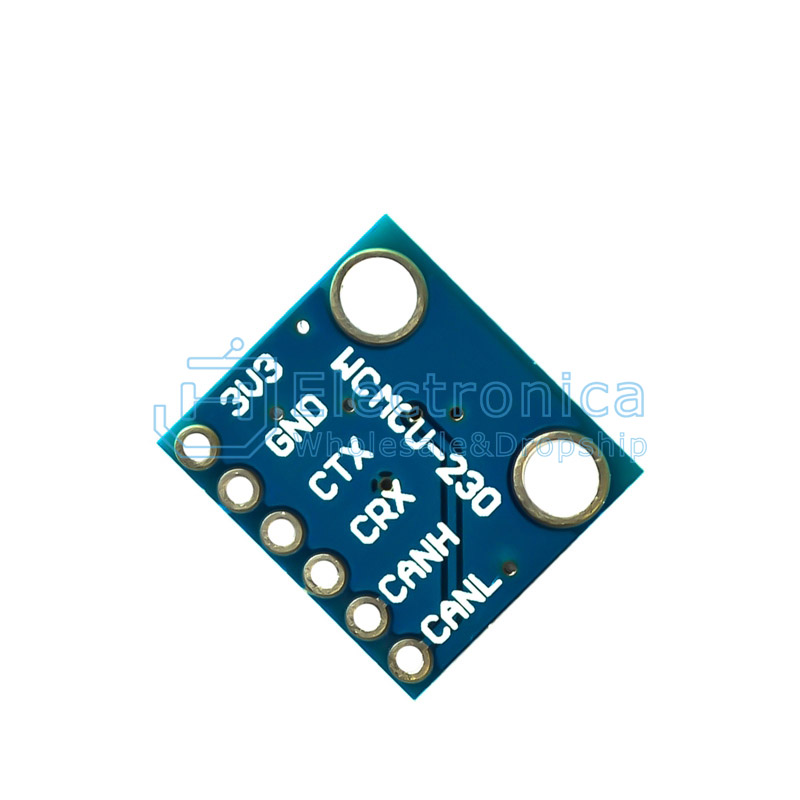

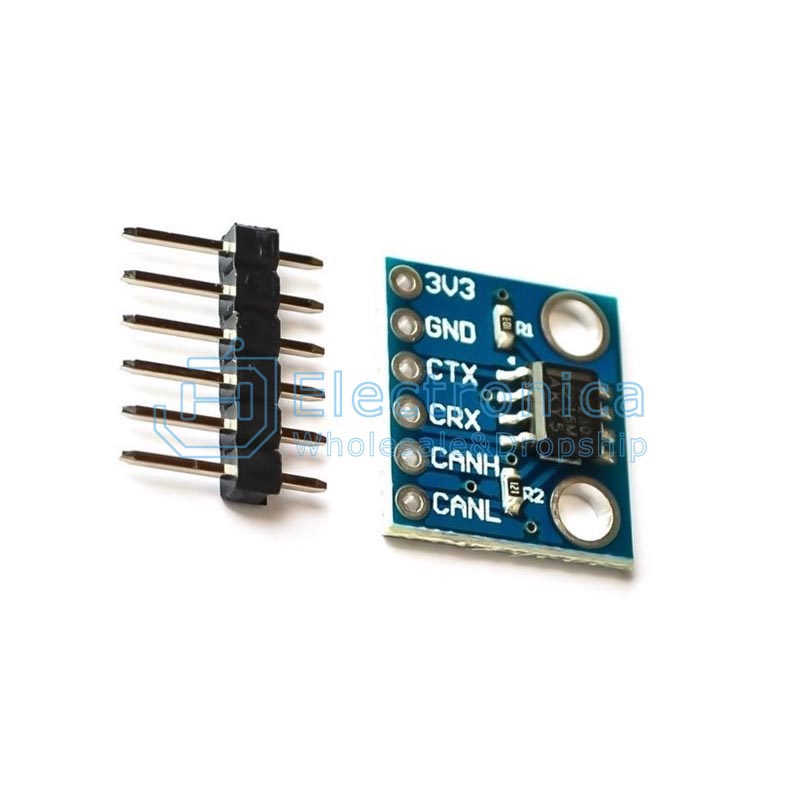

MCU230 SN65HVD230 CAN Communication Module

SKU : YXB266 Brand : JH Stock

Price : $ 0.40

100 +: $0.40500 +: $0.401000 +: $0.40

Quantity :

- +

ADD TO CART
