Description

Product Parameters:
1. Size:65mm×36mm×20mm
2. Working voltage:12V
3. Trigger methods:high-level PNP and low-level NPN (note: Hall components such as water flow sensors and motor Hall pulse feedback are recommended to beat NPN)
4. Service life:≥100000 times
5. Relay capacity:maximum AC220V 10A or DC30V
6. Pulse frequency range:0~10KHZ
7. Pulse signal current:≥20ma

Product Features:
1. With power supply anti reverse protection
2. LED with power indicator and relay status indicator
3. Input can be connected to "switch button" or use "sensor"
4. Genuine Songle relay, not counterfeit, industrial grade material
5. The time set value is permanently lost without loss
6. Time accuracy range: 0.01-99.99 seconds adjustable
7. The digital display can display up to four digits of 9999, and the upper and lower pulse frequency/number setting range is 0-9999
8. Commonly used for pulse and frequency detection such as water flow detection and motor speed detection

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

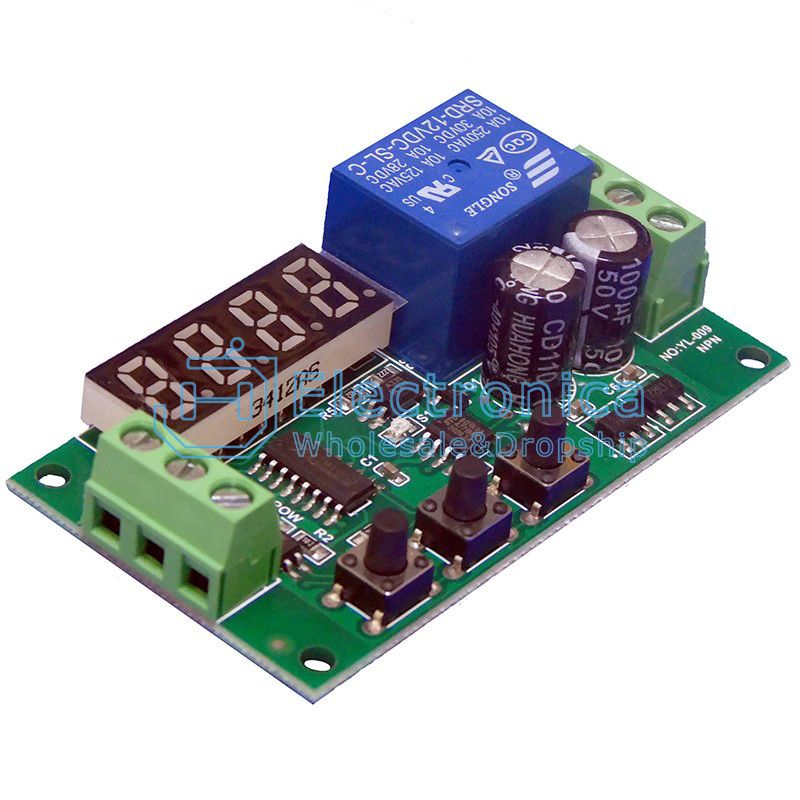

Pulse Frequency Relay Module

SKU : YXS1306 Brand :

Price : $ 4.27

100 +: $4.27500 +: $4.271000 +: $4.27

Style：

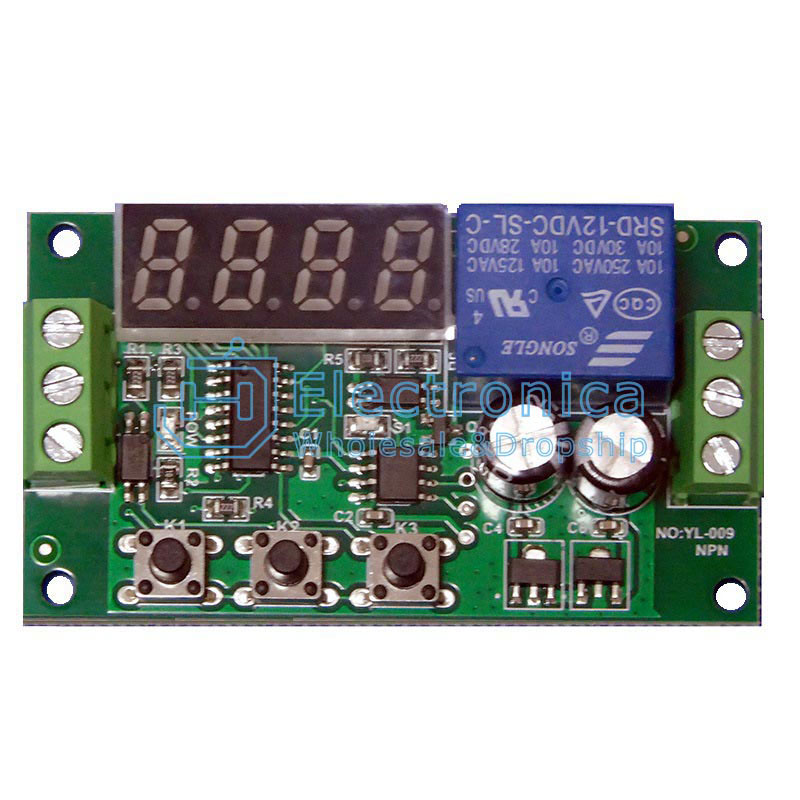

DC 12V without shell
