Description

1.The module is controlled by relay. The maximum AC voltage is 250V, the maximum AC current is 10A, the maximum DC voltage is 30V, and the maximum DC current is 10A

2.With 8550 triode drive, the driving ability is strong
3.Working voltage 5v12v24v, VCC pin 5v12v24v input 4. Fixed bolt hole is set for convenient installation
5.Board size:7.4*4.4cm

6.Power indicator (green), eight way relay status indicator (red)

7. Weight:51.5g

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

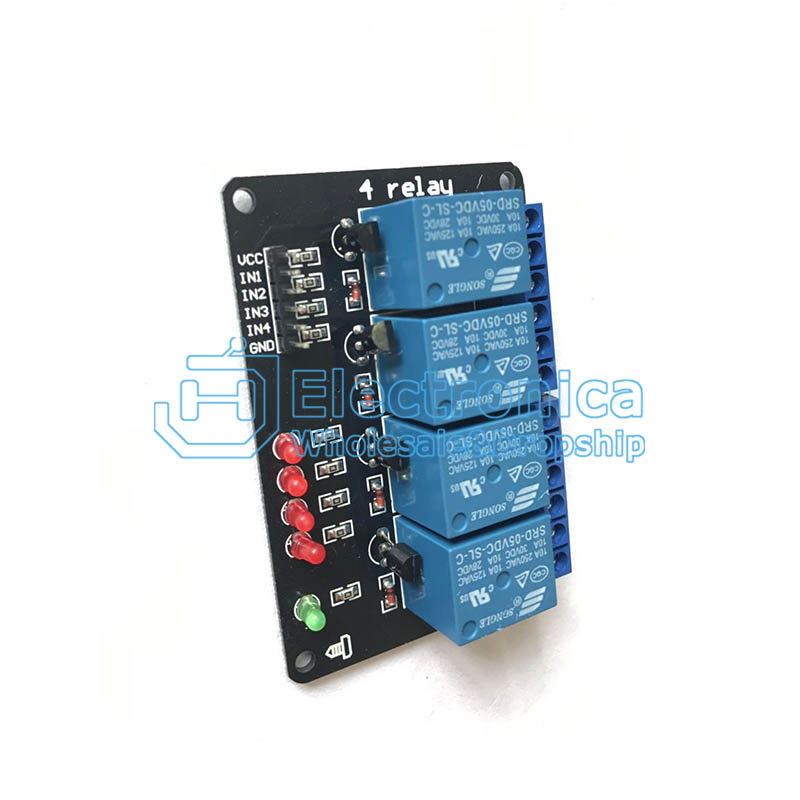

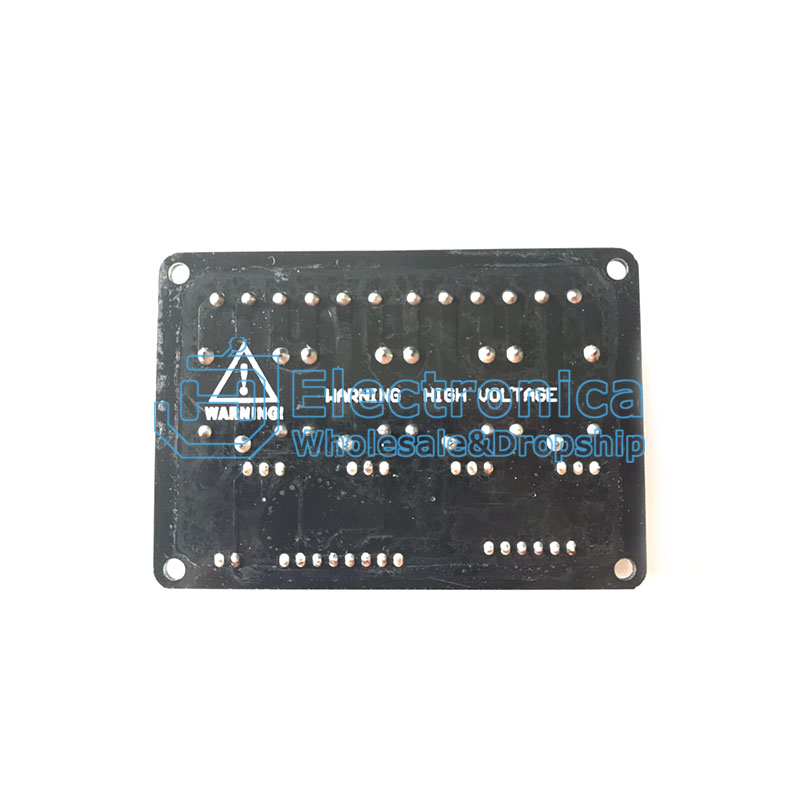

4 Channels Relay Module for AVR/51/PIC

SKU : YXC464 Brand : JH Stock

Price : $ 1.42

100 +: $1.42500 +: $1.421000 +: $1.42
