Description

1. Onboard ESP-01 WiFi module and high performance microprocessor STM8S103.
2 The module has 2 working modes:
Mode 1: The phone is directly installed on the WiFi module.
Mode 2: Equipped with a mobile phone and WiFi module on the router
Additional features: It can also be used as a USB relay when the ESP-01 is pulled out.
3. Transmission distance:
In an open environment, when the mobile phone is installed on the WiFi module, the maximum stable transmission distance is 100M.
4. When the WiFi module and the mobile phone are simultaneously carried on the router, the transmission distance depends on the signal strength of the router.
5. On-board 5V, 10A // 250V AC 10A // 30V DC relay, which can continuously pull 100,000 times, with diode discharge protection and short response time.
6. Use Smartcongig technology to complete the account and password configuration on the APP ESP-01 WiFi module on the mobile phone, and configure the username and password memory functions.
7.Board mode selection and real-time working status indicator.
8. Reserved UART debug interface and STM8 SWIM program download interface.
9. Board size: 59 * 40mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

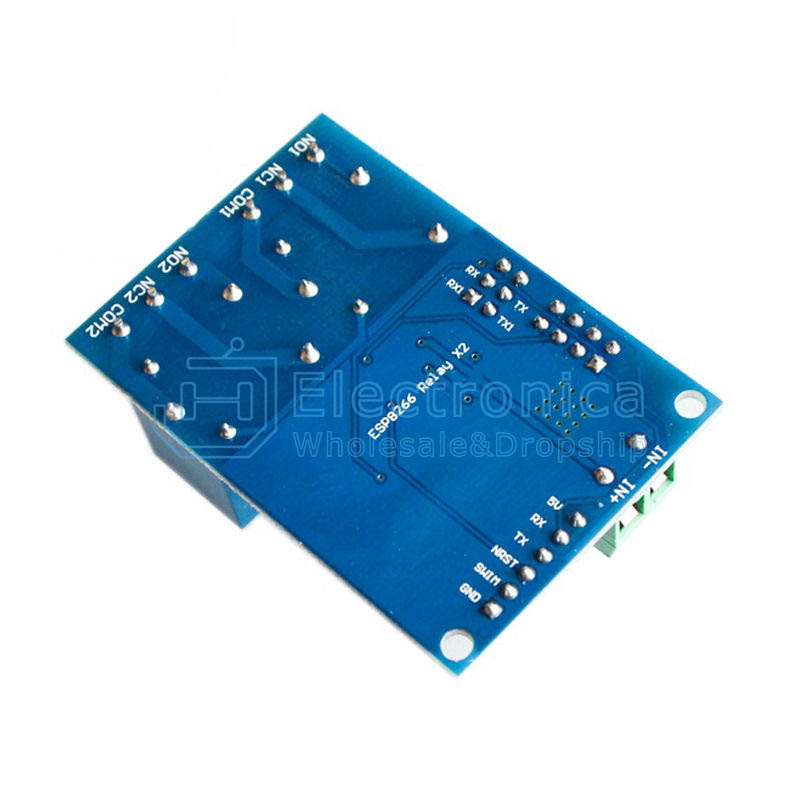

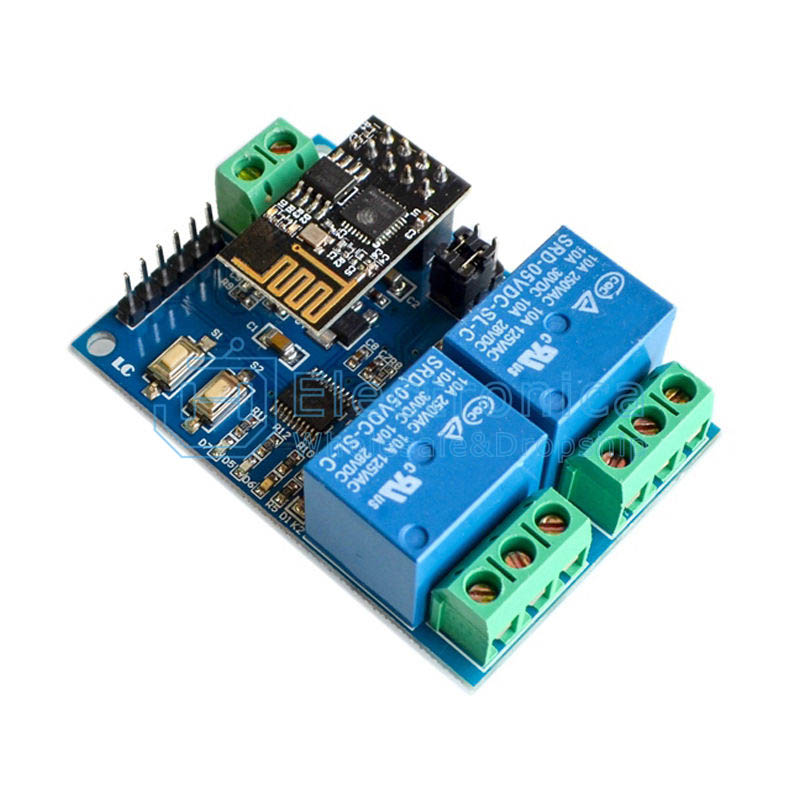

5V ESP8266 2 Channel WiFi Relay Module

SKU : YXA626 Brand : JH Stock

Price : $ 2.90

100 +: $2.90500 +: $2.901000 +: $2.90

Quantity :

- +

ADD TO CART
