1. The module adopts high-quality genuine 30A relay, the maximum load of a normally open interface: AC 250V / 30A, DC 30V / 30A;
2. It uses chip optocoupler isolation, strong driving ability, stable performance; Trigger current of 5mA ;.
3. The operating voltage of the module is 5V, 12V, 24V, availabel for selection;
4. The module can be jumper activated to set a high or low level.
5. All interfaces can be directly connected through the terminal block, which is very convenient.
6. Module size: (length * width * height)

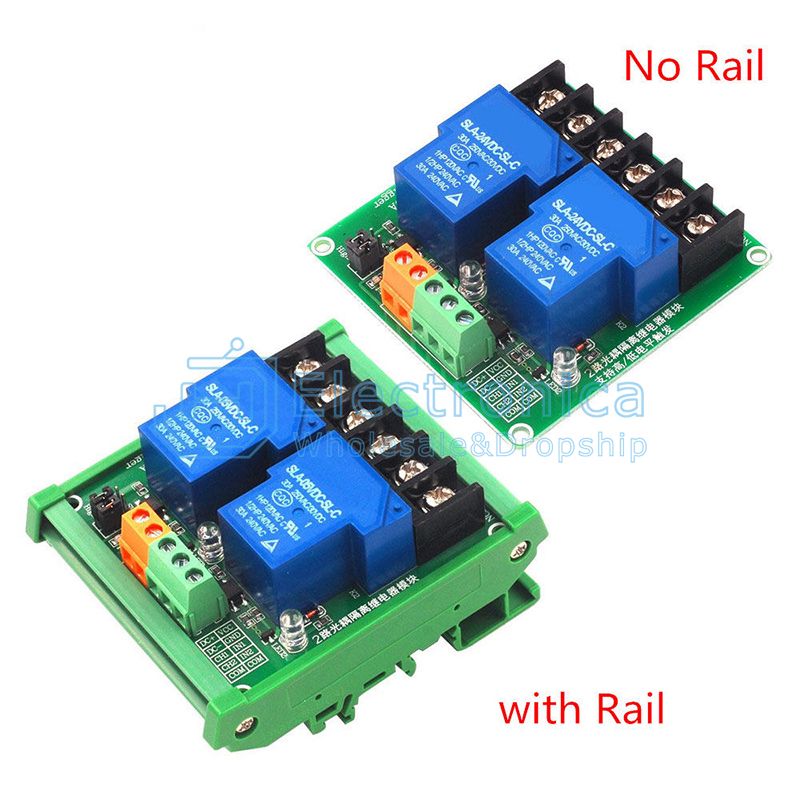

Without rail: 72mm * 40mm * 24mm
With rail: 86mm*43mm*45mm
7. Product net weight: about 46g
8. There are 4 fixing bolt holes, the hole is 3.1mm, the spacing is 44.5mm * 27.5mm
Interface description:
1. DC +: module DC power supply positive (trigger terminal voltage positive)
2.DC-: module DC power supply negative (trigger terminal negative voltage)
3. IN: signal trigger end (the default trigger voltage is the same as the power supply)
4.High / Low edge trigger mode selection, when the jumper is connected with the L terminal, the terminal is low edge trigger, and when connected to the H terminal it turns high level
5. Normally closed end (NC): Relay normally closed.
6. Common (COM): common relay
7. Normally open (NO): The relay is normally open.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

1/2 Channel 5V/12V/24V 30A Relay Module

SKU : YXB689 Brand : JH Sourcing

Price : $ 1.40~3.72

100 +: $1.40~3.72500 +: $1.40~3.721000 +: $1.40~3.72
