Description

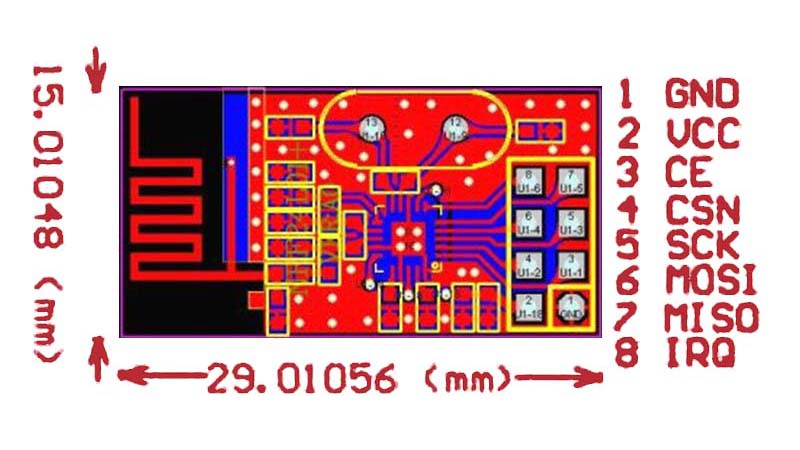

1. Size：28.9*15.2mm

2. Low operating voltage: 1.9~3.6V
3. Maximum operating speeds: 2Mbps
4. 125 channels
5. Standard DIP pass-through interface for embedded applications

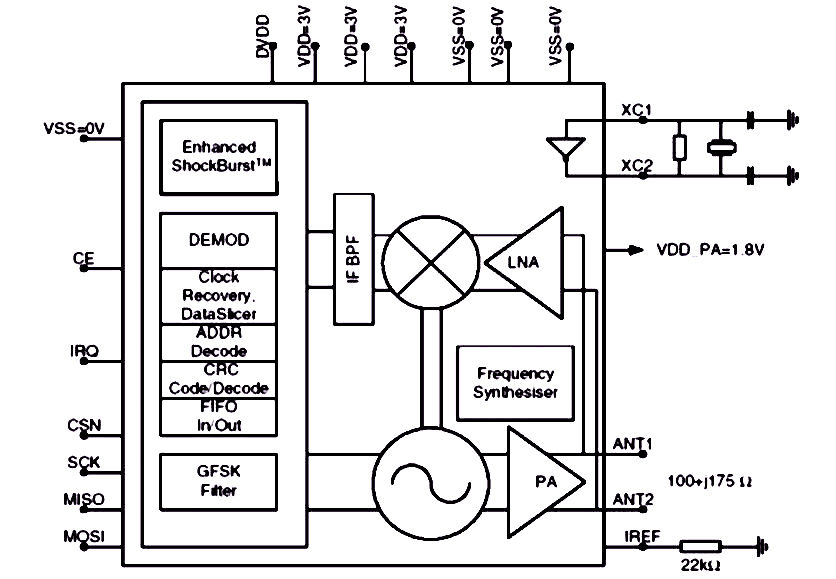

NRF24L01 is a single-chip transceiver chip operating in the 2.4-2.5GHz world wide ISM frequency band. The output power channel selection and protocol settings can be set through the SPI interface with extremely low current consumption,When working in transmission mode with a transmission power of 6dBm, the current consumption is 9.0mA. The acceptance mode is 12.3mA, and the current consumption mode is lower in power off mode and standby mode

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

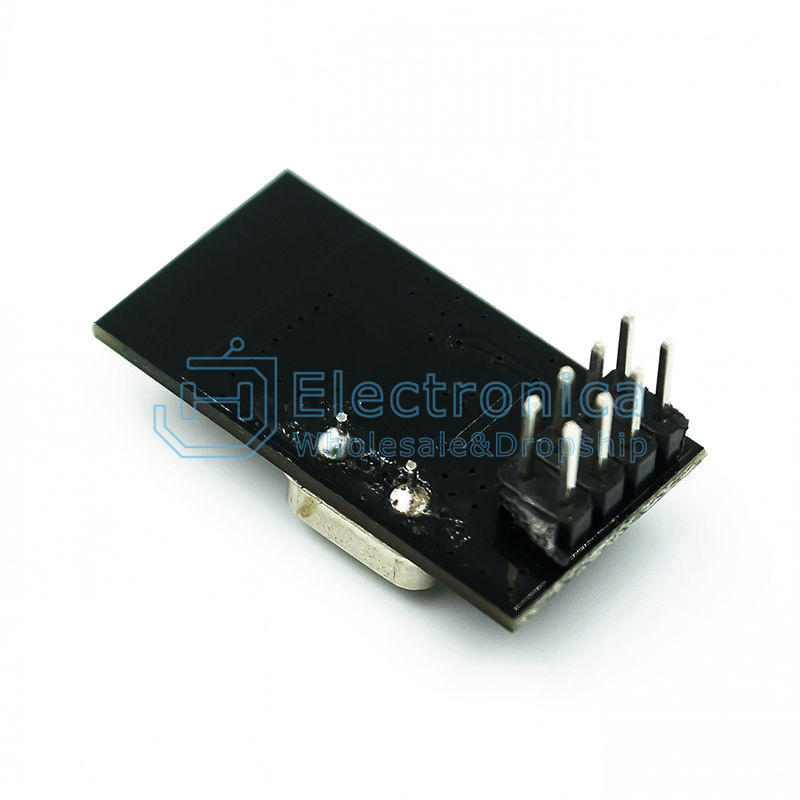

NRF24L01 Wireless Module

SKU : YXA487 Brand : JH Stock

Price : $ 0.48

100 +: $0.48500 +: $0.481000 +: $0.48

Quantity :

- +

ADD TO CART
