Description

Output power:100mW
Audio frequency response range:50Hz-18KHz
Transmitting frequency:76.0MHz-108.0MHz(configure the transmitting frequency through the computer)
Modulation mode:Standard FM frequency modulation
Sound channel:Mono
Supply voltage:DC 3.0V-5.0V operating current:35mA
Transmitter antenna:75cm rod antenna
Transmitting distance:FM transmitting module connected to the 75cm standard rod antenna,radio with Delsun PL-660,open space measured coverage radius of 100 meters.Measured coverage radius 100 meters.(Note:Transmitting distance is for reference only,due to the use of different environments vary slightly)
Product Features:
1:Using advanced FM phase-locked loop modulation technology(PLL) to make the sound quality more realistic.
2.Adopting audio-specific low-noise operational amplifier,with extremely low power consumption and minimal noise interference.
3.Power-down automatically memorizes the frequency before power failure.
4.The temperature and voltage change the transmitter frequency no longer drift.
5.Frequency output is accurate,adjustable range is wide.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

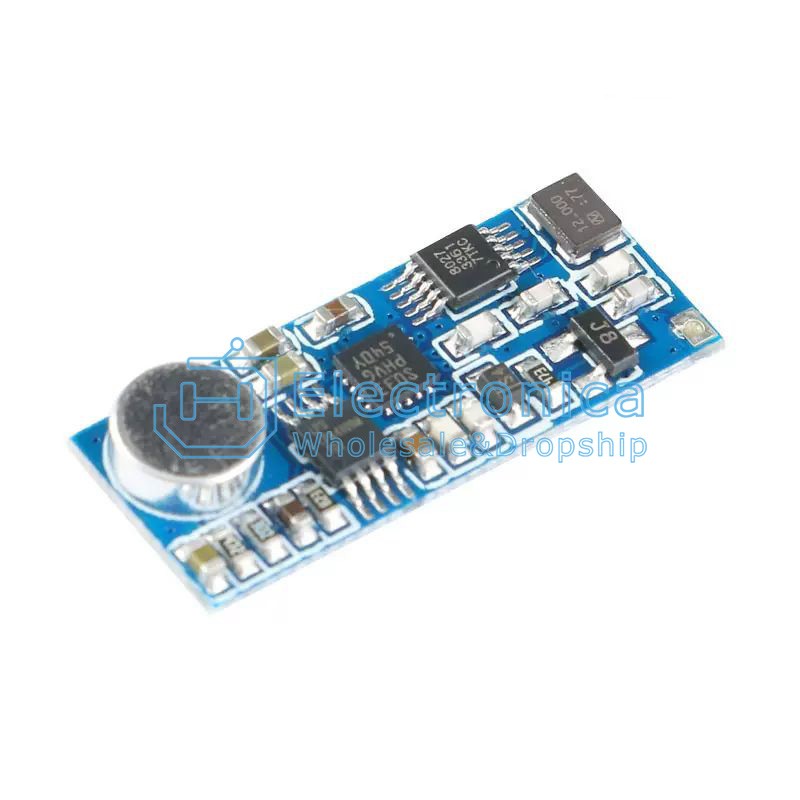

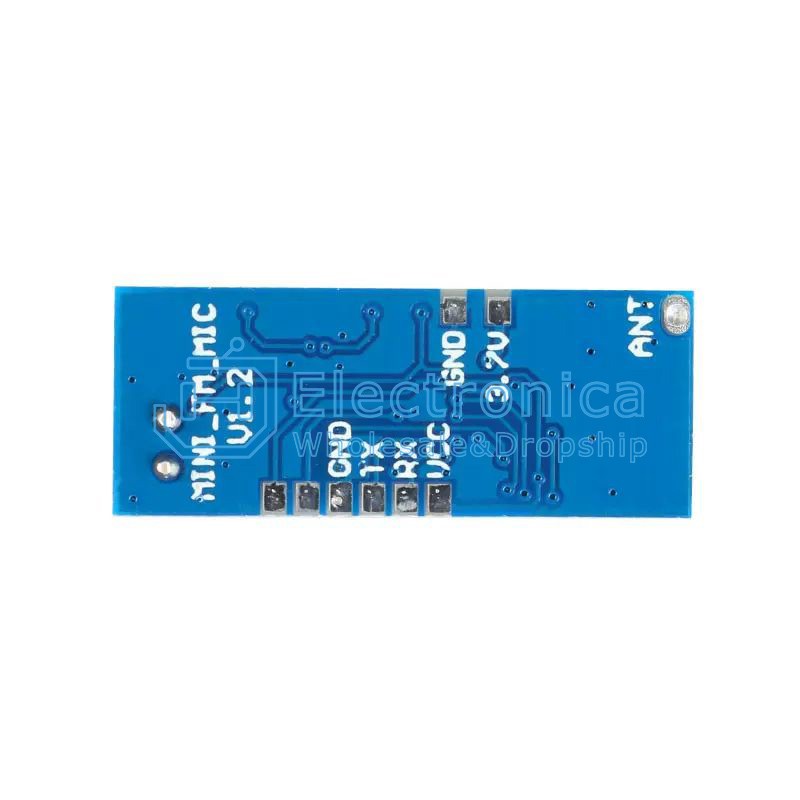

Mini FM Wireless Microphone Module

SKU : YXS895 Brand :

Price : $ 2.97

100 +: $2.97500 +: $2.971000 +: $2.97

Quantity :

- +

ADD TO CART
