1. Product overview:

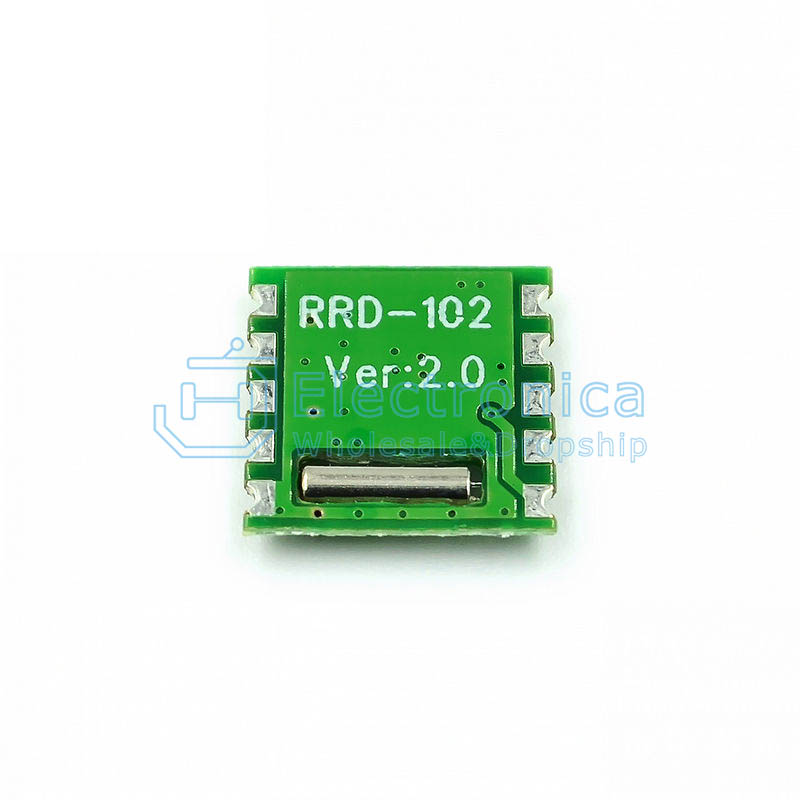

"RRD-102V2.0" Stereo Radio Module (FM Stereo Radio Module) High sensitivity, low power consumption, ultra-small volume FM stereo radio module. Using RDA5807M (or RDA5802NM) from RDA Microelectronics, this circuit has few peripheral components and extremely low noise figure. It has the advantages of small size, low power consumption, low cost, simple application and wide range of use. It is a single-chip FM stereo radio module that is easy to use and highly cost-effective.
A: Mobile DVD, TV, MP3, MP4 and other built-in FM full-band wireless receiving modules.
B: Stereo FM broadcasting system in public places such as industrial and mining, enterprises, campuses, communities, tourist areas, etc.
C: Wireless audio and wireless stereo headset function.
D: GPS navigation, TV broadcasting system and other wireless FM radio.
E: Game consoles and wireless audio electronic toys.
F: Stereo radio for mobile phones, cell phones, intercom systems, mobile radio devices, etc.
G: Peripheral applications such as PDAS and Notebook PC.

2. Features:
A. It adopts the universal 102BC module package, users can directly replace and use without changing the circuit design.

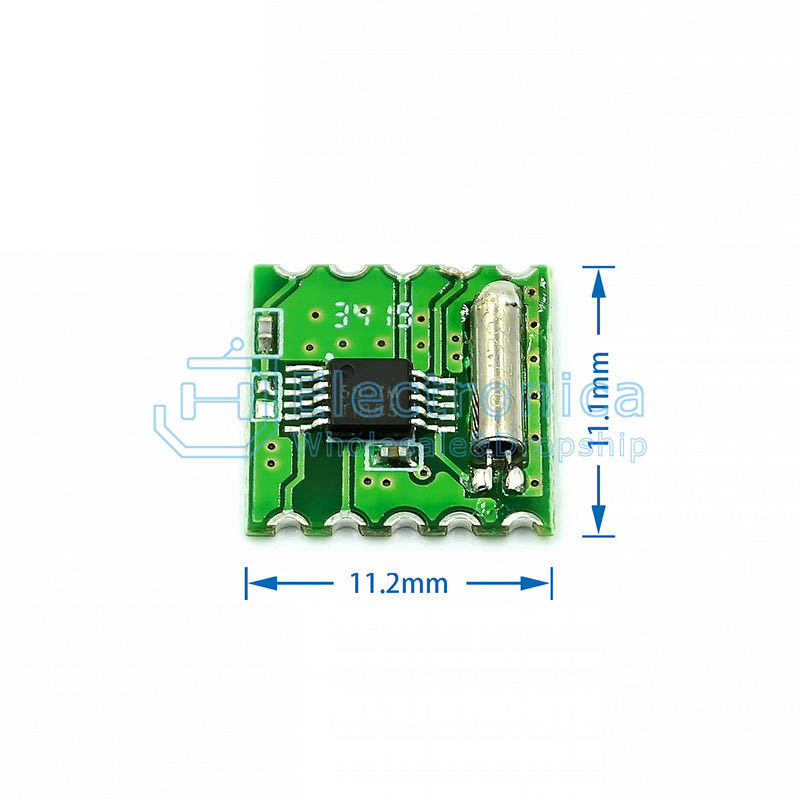

B. High sensitivity, low noise, strong anti-interference ability, few external components, small size (11*11.2MM Max), and extremely simple to use.
C, 76-108MHz global FM frequency band compatible (including Japan 76-91MHz and Europe and the United States 87.5-108.5MHz).
D, I2C serial data bus interface communication, support external reference clock input mode.
E. The fully integrated COMS process single-chip integrated circuit has extremely low power consumption.
F. Built-in high-precision A/D (analog-to-digital converter) and digital frequency synthesizer.
G. Built-in LDO adjustment, low power consumption, ultra-wide voltage range (2.7-3.6VDC).
H. Built-in noise cancellation, soft mute, bass enhancement circuit design.
I. High-power 32Ω load audio output, direct earphone connection, no need for external audio driver amplification.

J. Simple application, low cost and high cost performance.

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

RDA5807M RRD102V2.0 Wireless FM Stereo Radio Module

SKU : YXB096 Brand : JH Stock

Price : $ 0.33

100 +: $0.33500 +: $0.331000 +: $0.33
