Description

Module Parameters:
Working frequency:13.56MHz
Working voltage:2.5-3.6V
Working current:20mA (3.3V power supply)
Card reading distance:0-50mm (M1)
Support type:MIFIRE1 S50 S70 UltraLight Pro
Working temperature:-25~+85℃
Size:2×3cm
Module Overview:
The RC522 module is a Mifare card read and write module based on the NXP RF base station chip of NXP. The module operates at a frequency of 13.56MHz and meets the ISO14443A standard. It can support Mifare 1 S50, Mifare 1 S70, Mifare Light, Mifare UltraLight, and Mifare Pro. The module has the characteristics of easy to use, high reliability, and small size, which can help customers conveniently and quickly apply non-contact cards to the system

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

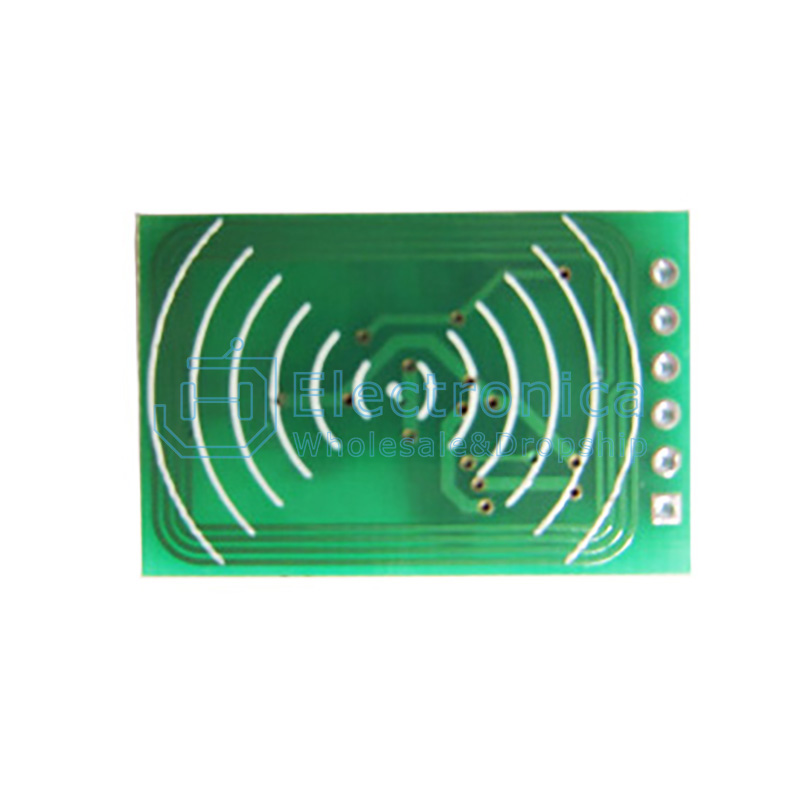

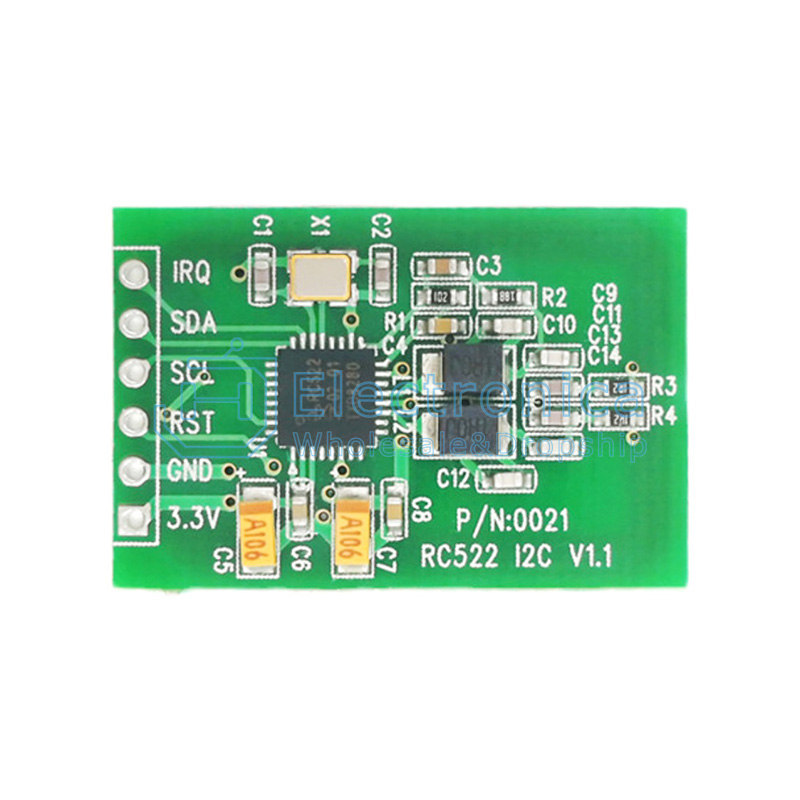

13.56MHz RC522 RFID Reader Writer Module

SKU : YXS1609 Brand :

Price : $ 3.93

100 +: $3.93500 +: $3.931000 +: $3.93
