Description

Product Features:
Equipped with a digital automatic gain control (AGC) circuit, making the received signal more stable
Low power consumption, with a total current of approximately 19mA when powered by two AA batteries
Supports global frequency bands 76-108Mhz
Support the radio station memory function, which automatically returns to the previous radio station and volume when turned off the next time
The circuit is simple, easy to make, and can work normally without debugging

Product Parameters:
Power supply voltage:2.7-33V(two dry batteries)
Working current:20mA
Radio frequency:76MHz --108MHz
Headphone impedance:32Ω
Board size:56.2mm*30mm

Component List:
30k resistor 1
0.1uh inductance 1
1uh inductance 2
100uf capacitor 2
Tact Switch 5
Chip 1
Ligature 2
24p porcelain chip 1
103p porcelain chip 1
223p porcelain chip 1
32768 crystal oscillator 1
Headphone jack 1
AA battery box 1
PCB board 1

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

FM Stereo Radio Module Kit

SKU : YXS717 Brand :

Price : $ 1.70~2.14

100 +: $1.70~2.14500 +: $1.70~2.141000 +: $1.70~2.14

style：

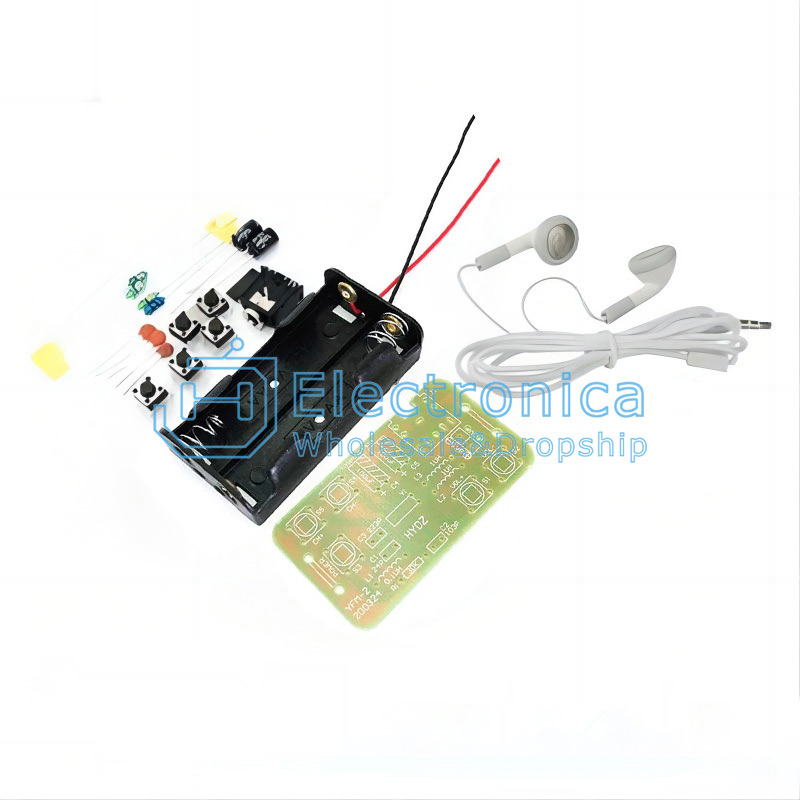

FM radio kit+headphones(requires self soldering)

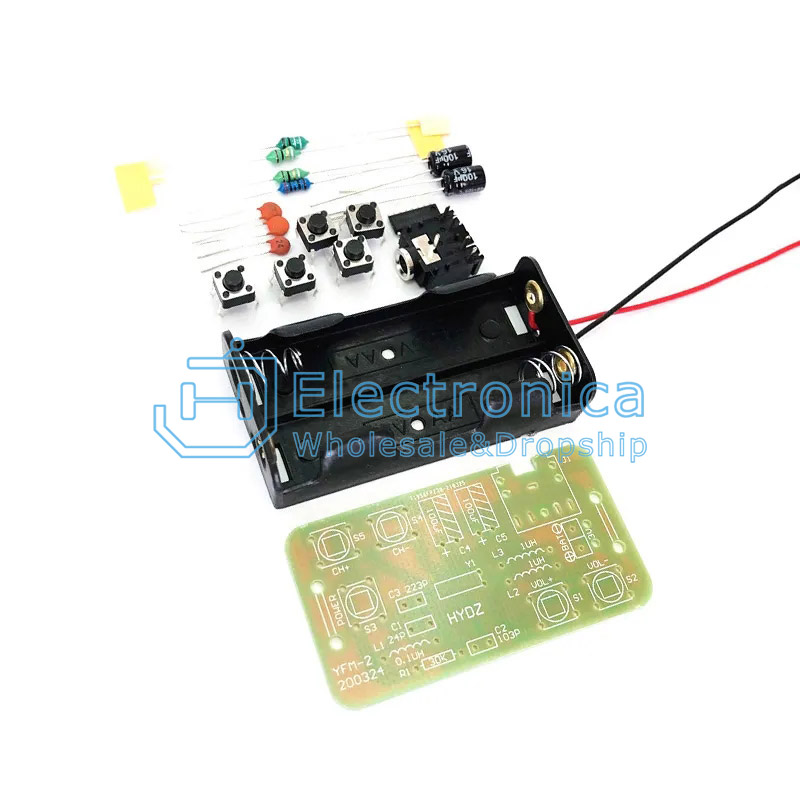

FM radio kit

Quantity :

- +

ADD TO CART
