Main Features:
Compact in size, fully functional, easy to operate, and convenient to carry. It can be powered by an adapter or by a lithium battery
Together with an oscilloscope, it can be used for electronic circuit testing and debugging, as well as testing and measuring the frequency characteristics and pulse response of audio amplifiers. Due to the excellent accuracy and frequency stability of DDS, it is also very suitable for oscilloscope scanning time factor calibration
The square wave output is suitable for adjusting the pulse characteristics of oscilloscope attenuators and probes
Main technical Indicators:
1. Frequency range:sine wave 1Hz-500kHz (where the output amplitude is flat up to 200 kHz, and the output amplitude will decrease as the frequency further increases), other waveforms 1Hz-20kHz (but the upper limit of adjustable frequency is not limited. If there is no high requirement for distortion and shaking, the frequency can be further increased)
2. Resolution:1Hz
3. Output waveforms:sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave
4. Sine wave distortion:<1% below 1kHz,<0.5% above 1kHz
5. Output amplitude:±10V (P-P)
6. Output impedance:50 ohms
7. DC offset:±10V, related to closing function
8. There are filters that can be turned on and off, which can adapt well to sine and pulse waveform outputs
9. Power supply:DC3.5-10V. It is recommended to use a DC5V adapter and a 3.7V lithium battery for battery power

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

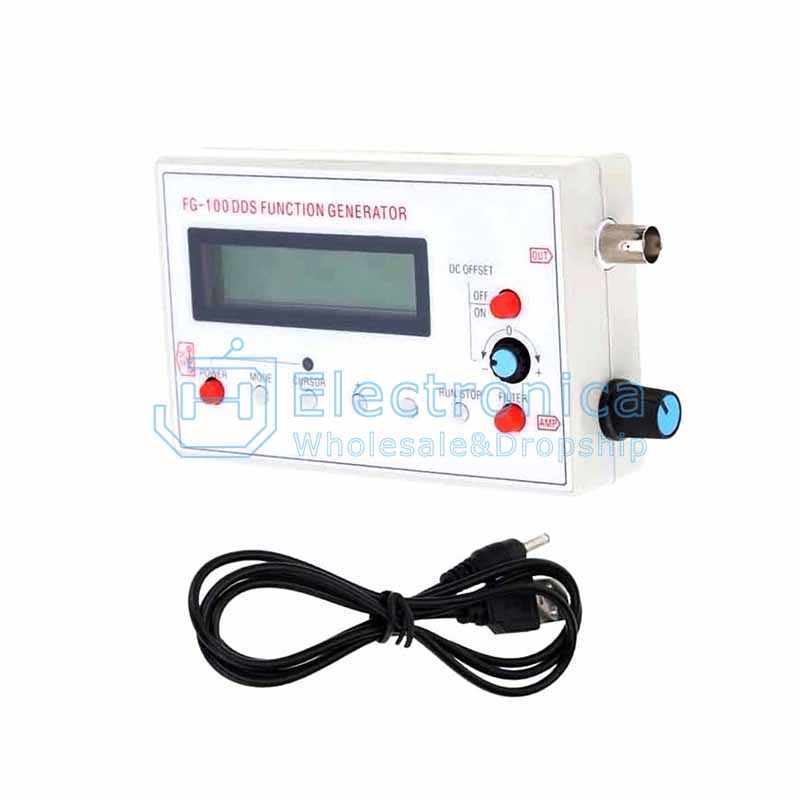

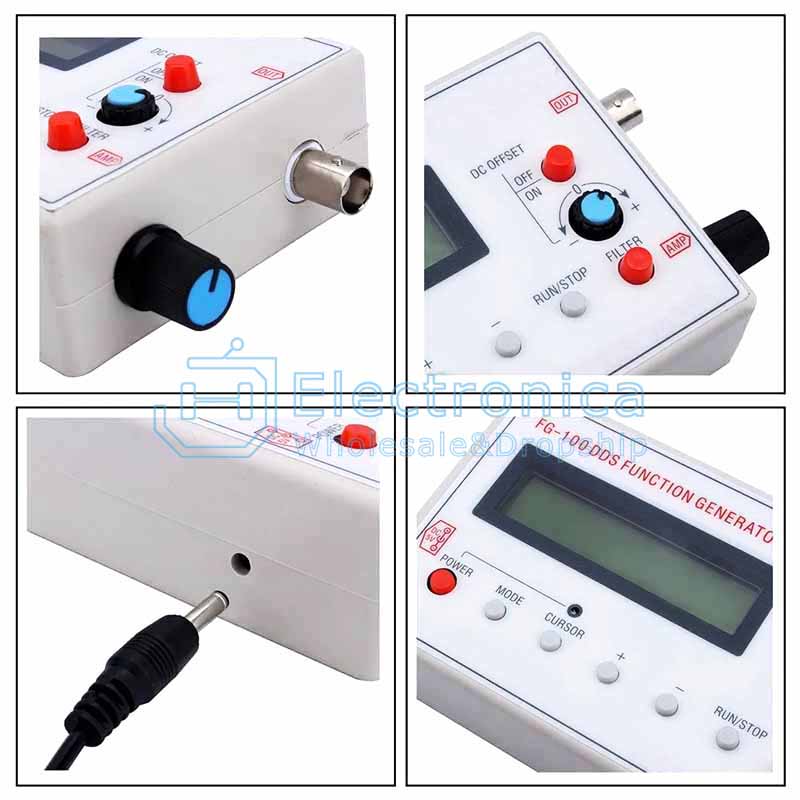

FG-100 DDS Function Signal Generator

SKU : YXC1621 Brand :

Price : $ 11.10

100 +: $11.10500 +: $11.101000 +: $11.10
