Description
2. 2 sine wave and 2 square wave output.
3. After the 20-30MHz frequency harmonics increases, the waveform will be less and less clean.
4. Square Wave: 0-1MHz.
5. Low-pass filter with 70MHz, so the waveform better than SN.
6. Parallel and serial data input can be selected via a jumper.
7. DA produced the benchmark pin (PIN12) leads for easy adjustment to do the
magnitude of the output waveform Application.
8. Comparator reference input voltage generated by the variable resistor, the resistor can be adjusted duty cycle square wave of different.
9. Active AD9850 125MHz crystal oscillator modules.
10. Dimension:4.5cm x 2.6cm
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

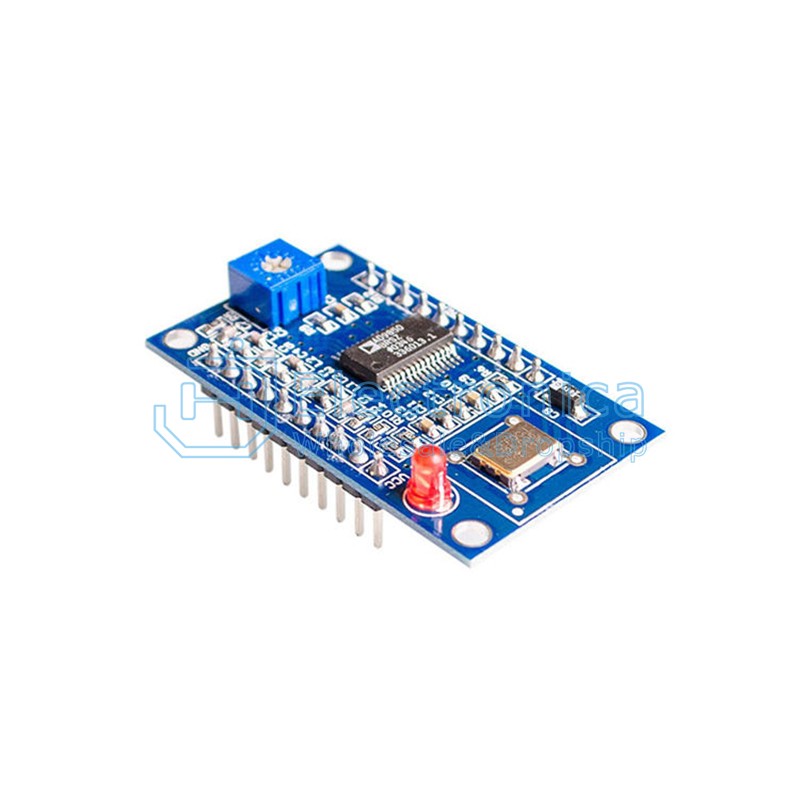

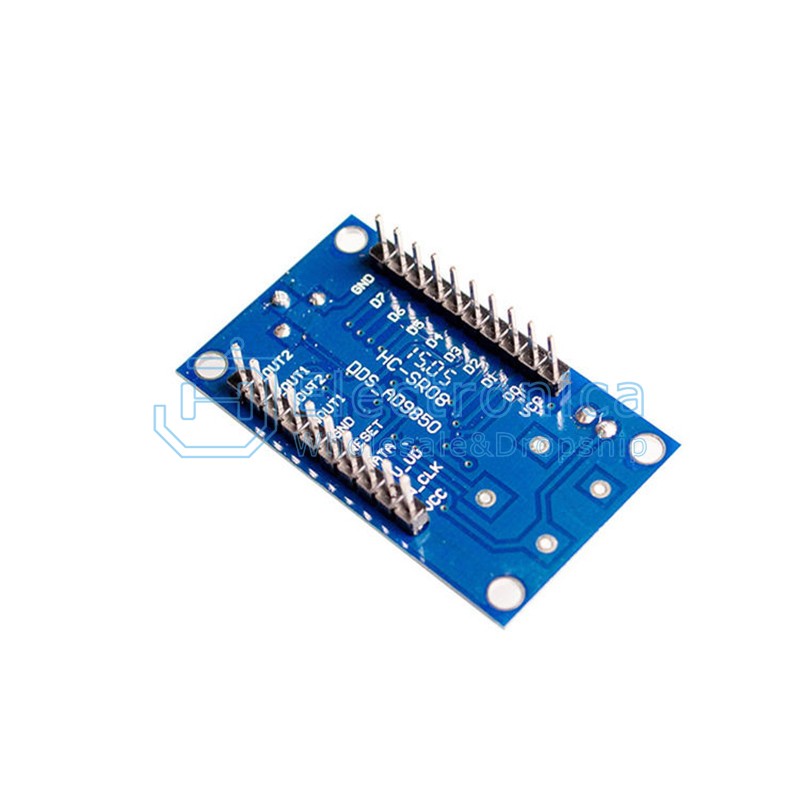

AD9850 DDS Signal Generator Module
SKU : YXA102 Brand : JH Stock
Style：
AD9850 Module

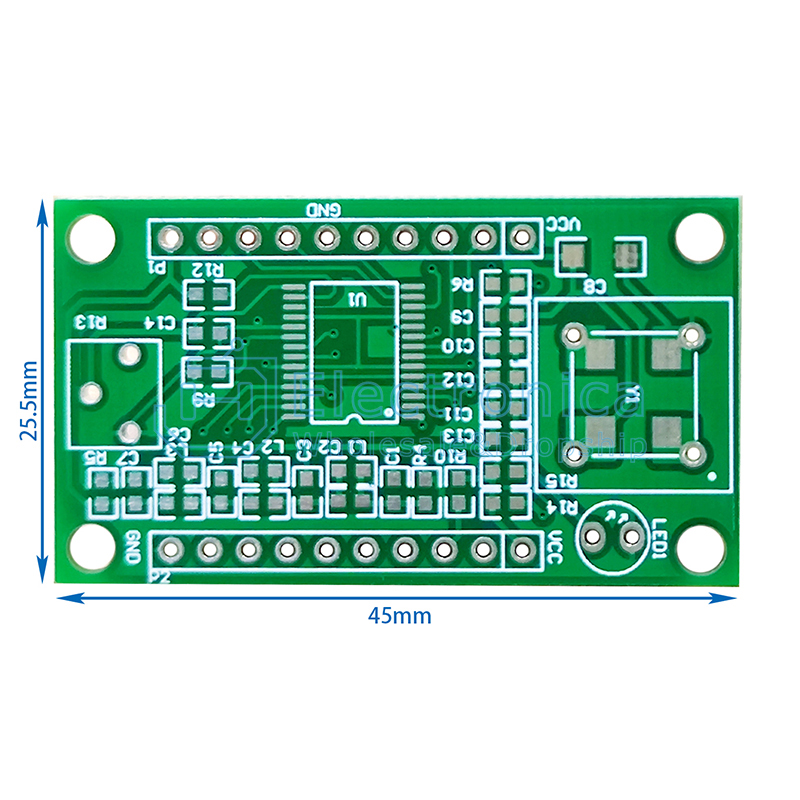

PCB Board
