Description

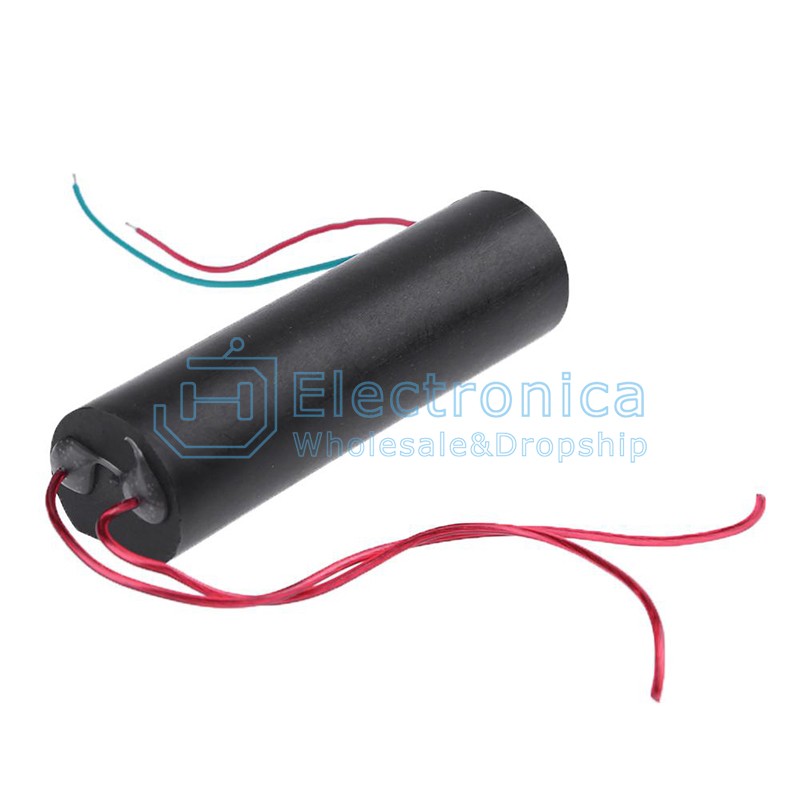

Module type: MC-901 Size: approx 88.5*26*24mm/3.48*1.02*0.94''
Input parameters: 3.7-7.4V/4A input line length: about 10 cm (red positive green negative)
Output parameters: 800-1000KV/0.5A line length: 16 cm
High voltage discharge distance: 1.5 cm -2 cm (not exceeding)
Product use: module input and output, the input end of the green line is red, red green is negative, the output is the same as the color of the two lines, the input end is connected with the battery can generate high voltage arc.
Please strictly follow the use of methods and precautions to operate the module, otherwise it is easy to damage the module!
About input power supply: can use 3.7V lithium battery input (such as 18650 battery) Ni / Ni MH battery pack, 4V or 6V lead acid battery, etc.. Input voltage and current affect the output voltage and arc distance.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

DC 1000KV High Voltage Pulse Generator

SKU : YXB517 Brand : JH Sourcing

Price : $ 1.31

100 +: $1.31500 +: $1.311000 +: $1.31
