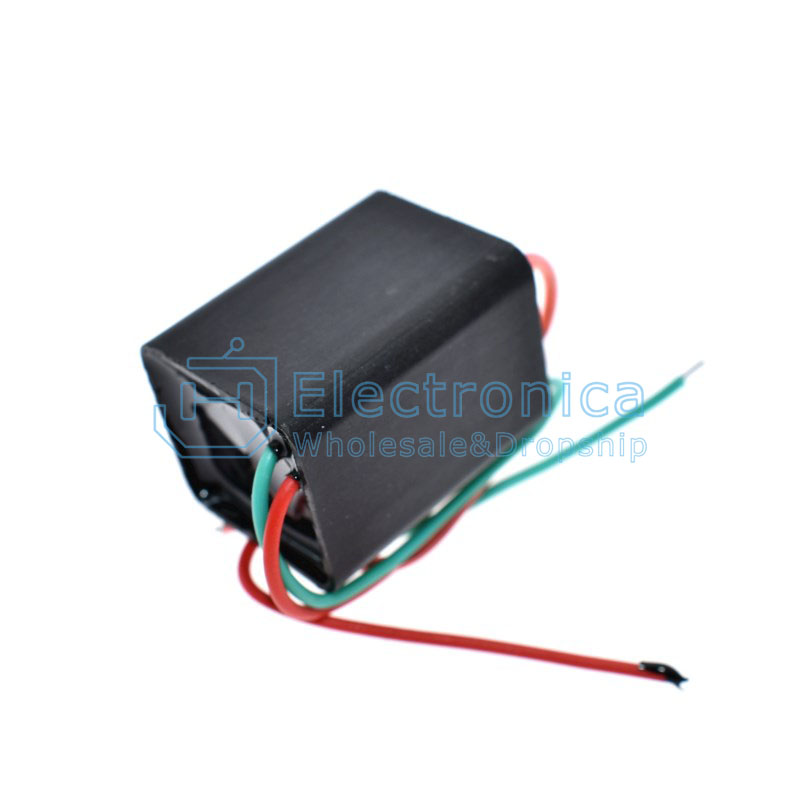

Material: metal, plastic
Color: black and black
Size: 19 x 20 x 18 mm (L x W x H)
Input voltage: DC3.6V-6V
Input Current: 1.5A
Output voltage: DC20KV (Please be sure to use safety when used)
Output current: 0.05A
InputLine Length: approx. 110 mm (red is positive)
Output cable length: approx. 110mm
High voltage bipolar discharge distance: 5mm
High type: pulse current
Structure: High and low voltage integrated

About the input power supply:
You can use a single 3.7V lithium battery or two series connections,such as 18650 battery,idle mobile phone battery(to remove the protection board, the recommended capacity is more than 2000mAh)or nickel-cadmium/nickel-metal hydride battery pack,4V or 6V lead-acid battery,etc.(6V battery can achieve the best effect)
Considerations for module use:
1.The high-voltage module should avoid the use of high-voltage no-load,and the appropriate distance of the high-voltage line end must be adjusted before power-on,and the arc distance of the high-voltage line is proportional to the battery voltage and capacity used
2.When testing the arc distance,it is strictly forbidden to exceed the maximum arc pulling distance when powering on,because the high-voltage energy cannot be released,and it is easy to damage the module
3.The power of the module is large,and the internal heat dissipation is not suitable,so it cannot work for a long time
4.The way to determine whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is pulled.If it is about 6V,the maximum power can be output
5.The two-section series connection of the small capacity lithium battery is 7.2V,and the measured voltage has fallen to about 4V in the arc pulling state,and the smaller the capacity,the lower the voltage pull.Therefore,it is recommended to use lithium batteries above 2000MA,and it is best to use batteries above 4000MA if conditions permit.
