Description

1. The main chip is CP2102, which generates virtual serial port after installing driver
2. USB power, lead out interface includes 3.3V (< 40mA), 5V, GND, TX, Rx, signal pin level is 3.3V, positive logic
3. The on-board status indicator and transceiver indicator will be on after the driver is correctly installed. The transceiver indicator will flash when communicating. The higher the baud rate, the lower the brightness
4. Supports baud rate from 300BPS to 1Mbps
5. Communication format support: 1) 5,6,7,8 data bits; 2) 1,1.5,2 stop bits are supported; 3) Odd, even, mark, space, none check
6. Support operating system: Windows Vista / XP / Server 2003 / 200, MAC OS-X / OS-9, Linux
7. The USB head is male and can be directly connected to the USB port of the computer
8. SMT technology is used to produce SMT components with stable quality

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

CP2102 CH9102 USB to Serial Module

SKU : YXB153 Brand : JH Stock

Price : $ 0.96~1.02

100 +: $0.96~1.02500 +: $0.96~1.021000 +: $0.96~1.02

Colour：

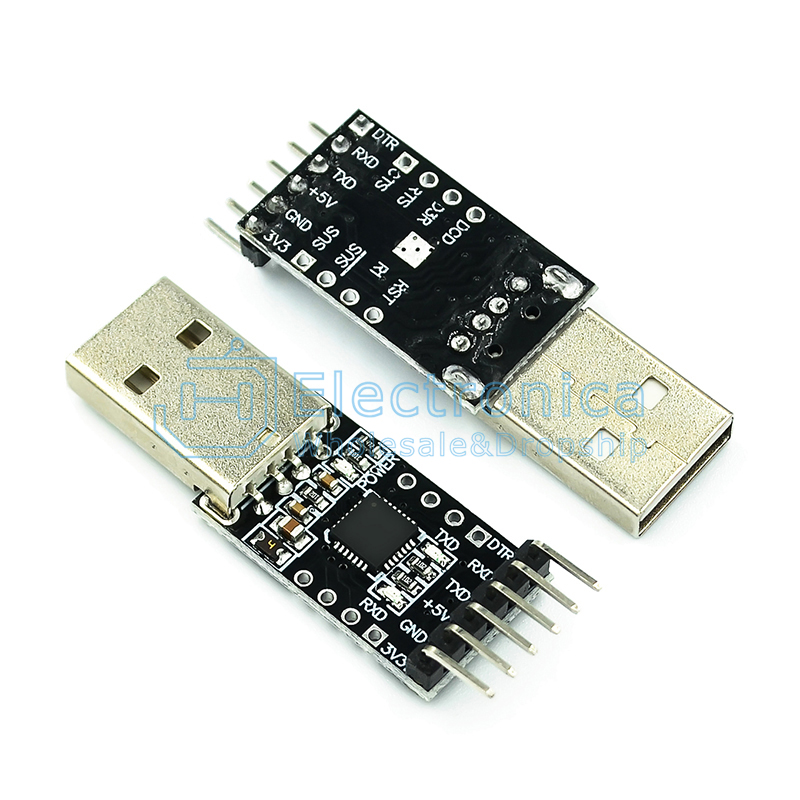

CP2102 black

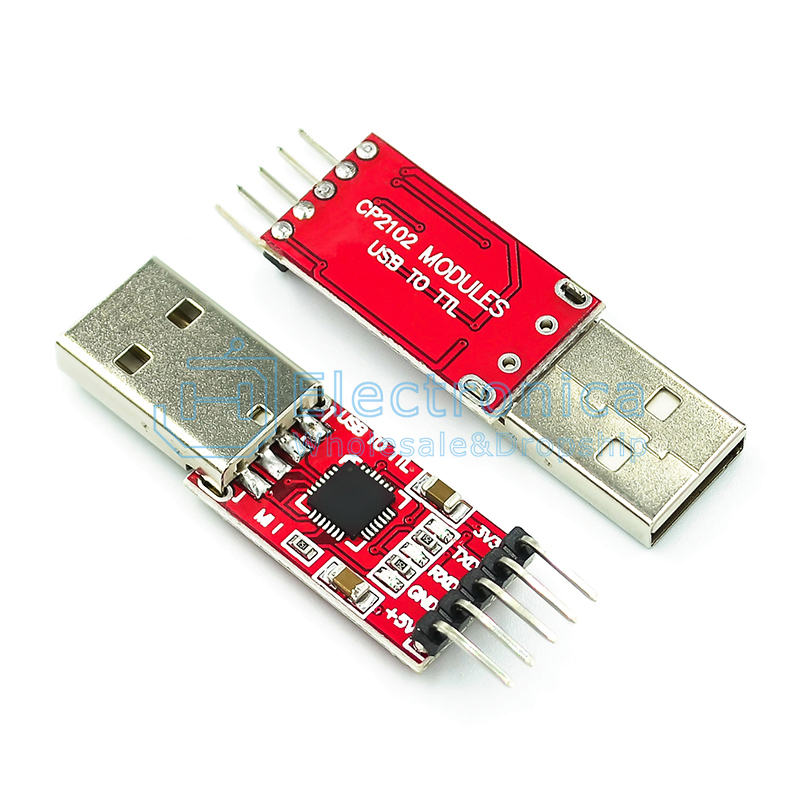

CP2102 red
CP2102 red with cable and package

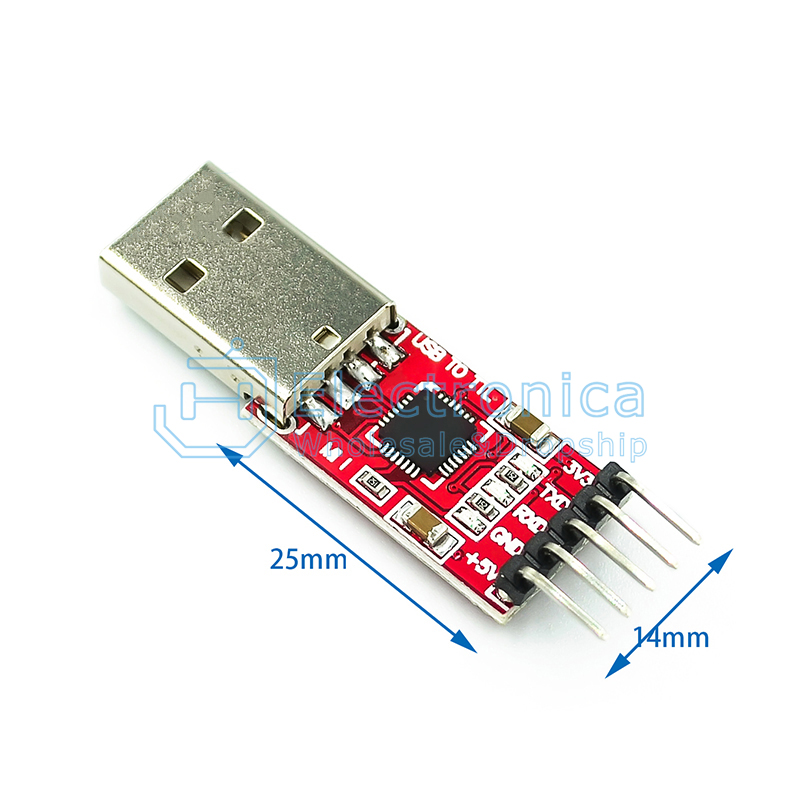

CH9102 red
