Description
Transmission distance:1200m(under 9600bps conditions)
Chip scheme:CH340
Communication protocol:pure hardware device,not limited by protocol
Baud rate:921600bps,supporting mutual transmission supports higher baud rate
Protection:TVS transient suppression protection,electrostatic ESD protection,surge protection,AB signal line short connection and short connection protection with power supply(short connection without burning)
Temperature range:-40℃-80℃
Provide 5V power supply externally,with fuse current limiting
Support system:support hot plugging,support win98/CE/2000/2003/2008/XP/WIN7 /WIN8/WIN10/VISTA/LINUX/MAC OS X system,USB interface can be hot-swapped
Automatic identification and control of data transmission direction,without any handshake signal(such as RTS,DTR,etc.)without jumper setting can achieve mode conversion,to ensure compliance with existing communication software and interface hardware
Weight:16g
Size:70*27*13mm
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

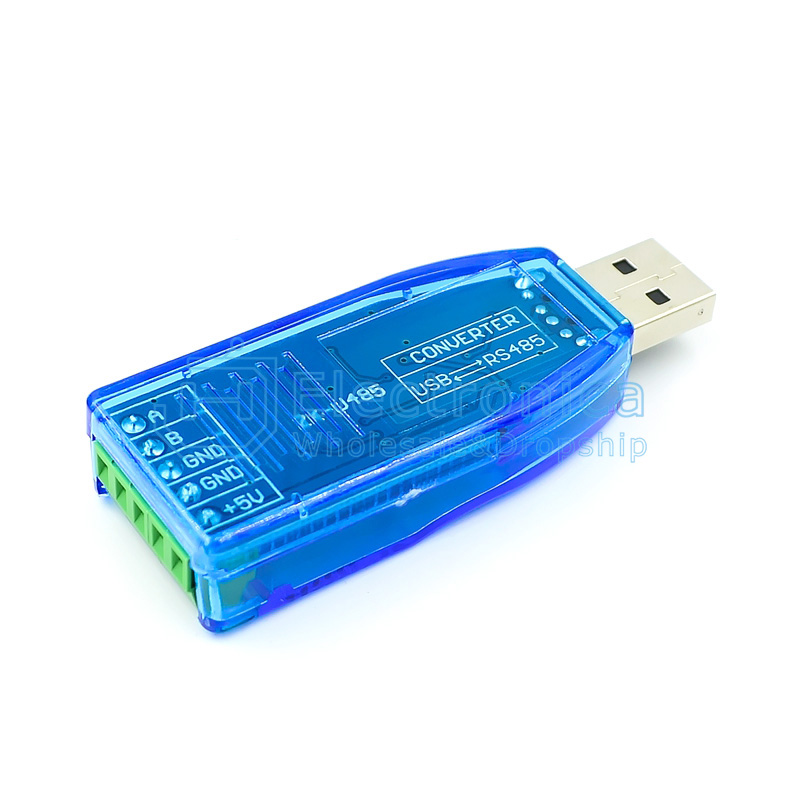

USB to RS485 Communication Module
SKU : YXS1356 Brand :
