Description

Product Parameters:
Size:55*18mm
Supply voltage:3.3-5V
Chip:CP2102
Color:blue

Product Features:
Automatic recovery fuse, intelligent anti burn, equipped with 500mA automatic recovery fuse, automatically disconnected when the current exceeds 500mA, protecting your device and USB port. Even if there is a short circuit, it will not affect the connection. Once the circuit is normal, the connection can be restored
High performance 2102 chip, USB interface chip CP2102, high stability and performance, communication rate up to 2Mbps
High quality connection interface, TTL level compatible with 3V3 level standard, with built-in 5V and 3.3V power output ports, which can supply power to the microcontroller system. Retain the DTR/RTS output interface, which can override the levels of two pins through the serial port. When downloading programs for certain microcontrollers, it can automatically complete resetting

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

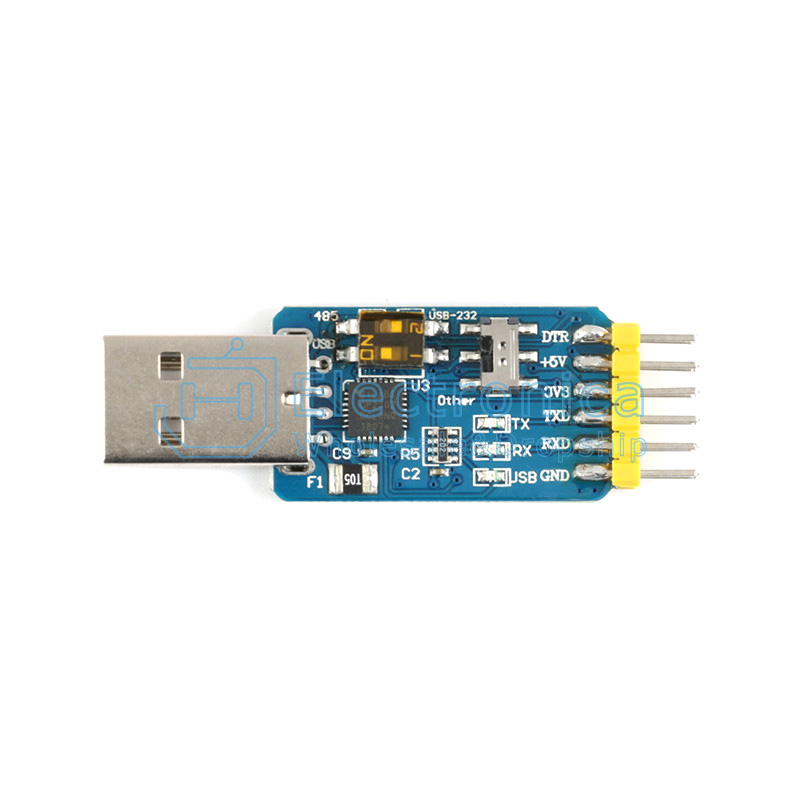

CP2102 USB to UART Serial Port Module

SKU : YXS1076 Brand :

Price : $ 2.21

100 +: $2.21500 +: $2.211000 +: $2.21
